Overview:

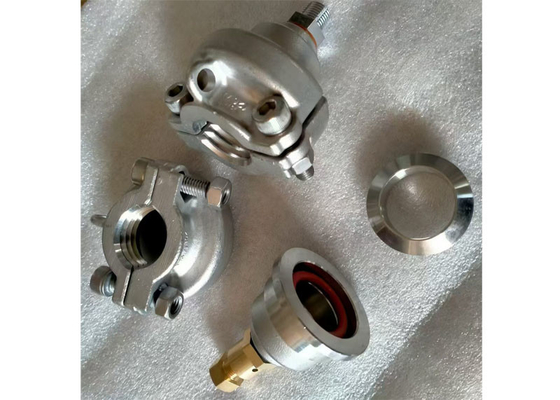

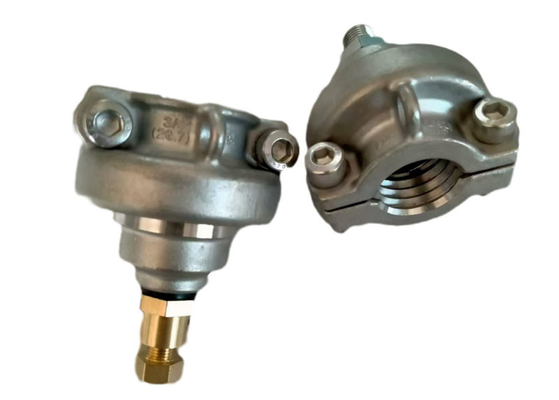

Precision Seal 3/4" 3/4 inch 26.7mm Plastic Pipe End Cap PE & PVC Pipe is easy to operate and reliable to seal. The diameter range of clamps for plastic pipes is 16 ~ 200mm, and special specifications clamps can be customized. The clamping material is divided into 304# stainless steel. It is suitable for pipeline pressure & bursting test, meet ASTM D2466, EN921, ISO1167, ASTM D 1598/1599, GB/T15560, GB/T6111-2003 and other standards.
The end cap for sealing PE, PVC thermoplastic pipe hydrostatic test.
Cast A-type structure fixture, no intermediate tie rod, with ultra-high pressure resistance.
The process adopts precision casting, which is beautiful in appearance. The sealing and clamping are completed at one time, and the success rate of one-time sealing is 100%.
Other model of End caps:
Inch size: 1/2", 3/4", 1", 1 1/2",1 3/4“, 2”, 2 1/2", 2 3/4“”, 3", 4", 5", 6", 8", 10", 12", 14", 16", 20", 22", 24", 28", etc.
And Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630, Φ710, Φ800, Φ900, Φ1000, Φ1200, Φ1400, Φ1600.
Features.
Technical Parameters:
| Model |
3/4" |
| Max. Diameter (mm) |
φ62 |
| High of one end (mm) |
60 |
| Wright of one end (KG) |
0.6 |
| O ring size (mm) |
φ24*3 |
| Max.pressure (Mpa) |
15 |
| Nominal value (Mpa) |
10 |
Meet standards:
ASTM D1598-2004, ASTMD1599, ASTM D 2466, GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476—2001, etc.
Support and Services:
Our technical support team is available to assist with any questions or issues related to the installation or use of our Plastic Pipe End Caps. They can provide detailed product information, troubleshooting advice, and guidance on best practices for ensuring optimal performance and longevity.
In addition to technical support, we also offer a range of services to help you get the most out of your Plastic Pipe End Caps. These services include custom sizing and labeling, OEM manufacturing, and private labeling. We can work with you to develop a customized solution that meets your specific needs and requirements.
Packing and Shipping:
Product Packaging:
Our Plastic Pipe End Caps come in a set of 2 and are packaged in a sturdy wooden box to ensure safe delivery. Each cap is individually wrapped to prevent any scratches or damage during transportation.
Shipping:
We offer standard shipping options with delivery times ranging from 5-15 business days depending on your location. Expedited shipping options are also available for an additional fee.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is JINHAIHU.
Q2: What is the model number of this product?
A2: The model number of this product is XGY.
Q3: Is this product certified?
A3: Yes, this product is certified with ISO9001.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity for this product is 1 set.
Q5: What are the available payment terms for this product?
A5: The available payment terms for this product are T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
