Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1/2" 1/2 Inch 21.3mm Plastic Pipe End Caps For Internal Hydrostatic Testing With A-Type Structure | Standards: | ASTM D2466, EN921, ISO1167, ASTM D 1598/1599 |
|---|---|---|---|
| Exterior Size(mm*mm): | φ60*60mm | Material: | 304# Stainless Steel |
| Model: | 1/2" | Color: | Silvery White |
| Product Category: | Plastic Pipe End Caps | Seal Ring: | Type O, Silicone Rubber |
| Highlight: | 1/2" plastic pipe end caps,1/2 Inch plastic pipe end caps,Internal Hydrostatic Testing plastic pipe caps |
||

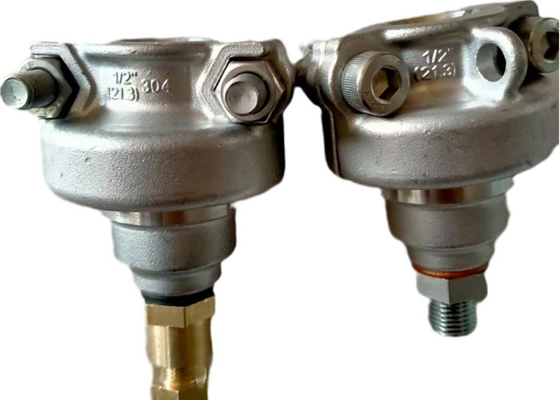

1/2" 1/2 inch 21.3mm Plastic Pipe End Caps for Internal Hydrostatic Testing with A-Type Structure
The end caps is simple to operate and reliable in sealing. The clamp diameter ranges from 16 to 1600 mm for plastic pipes, and the clamp with special specifications can be customized. The clamp materials are divided into carbon steel and stainless steel. It is suitable for the pressure test of pipes and conforms to GB/T15560, GB/T6111-2003 and other standards.
Other model of End caps:
Inch size: 1/2", 3/4", 1", 1 1/2",1 3/4“, 2”, 2 1/2", 2 3/4“”, 3", 4", 5", 6", 8", 10", 12", 14", 16", 20", 22", 24", 28", etc.
And Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630, Φ710, Φ800, Φ900, Φ1000, Φ1200, Φ1400, Φ1600.
1/2" 1/2 inch 21.3mm Plastic Pipe End Caps for Internal Hydrostatic Testing with A-Type Structure is used to seal samples in hydrostatic test of PE, PVC thermoplastic tube.

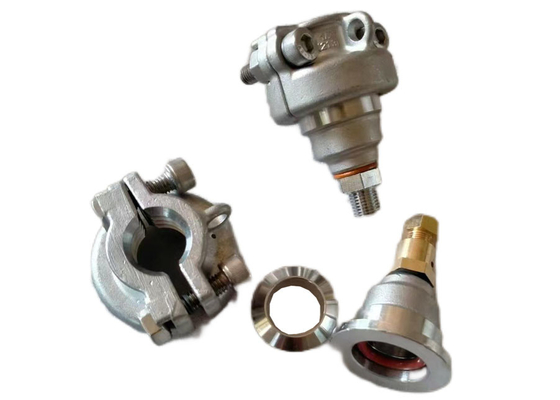

Cast A-type structure fixture, no intermediate tie rod, with ultra-high pressure resistance.
The process adopts precision casting, beautiful appearance. The sealing and clamping are completed at one time, and the success rate of tight sealing at one time reaches 100%.
| Model | 1/2" |
| Max. Diameter (mm) | φ60 |
| High of one end (mm) | 60 |
| Wright of one end (KG) | 0.5 |
| O ring size (mm) | φ19*3 |
| Max.pressure (Mpa) | 20 |
| Nominal value (Mpa) | 12 |
Meet standards:
ASTM D1598-2004, ASTMD1599, ASTM D 2466, GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476—2001, etc.
In addition to technical support, we also offer a range of services to help you get the most out of your Plastic Pipe End Caps. These services include custom sizing and labeling, OEM manufacturing, and private labeling. We can work with you to develop a customized solution that meets your specific needs and requirements.
Product Packaging:
Our Plastic Pipe End Caps come in a set of 2 and are packaged in a sturdy wooden box to ensure safe delivery. Each cap is individually wrapped to prevent any scratches or damage during transportation.
Shipping:
We offer standard shipping options with delivery times ranging from 5-15 business days depending on your location. Expedited shipping options are also available for an additional fee.
Q1: What is the brand name of this product?
A1: The brand name of this product is JINHAIHU.
Q2: What is the model number of this product?
A2: The model number of this product is XGY.
Q3: Is this product certified?
A3: Yes, this product is certified with ISO9001.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity for this product is 1 set.
Q5: What are the available payment terms for this product?
A5: The available payment terms for this product are T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
