Features:

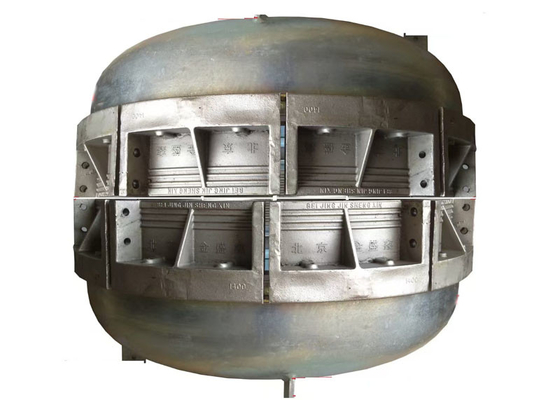

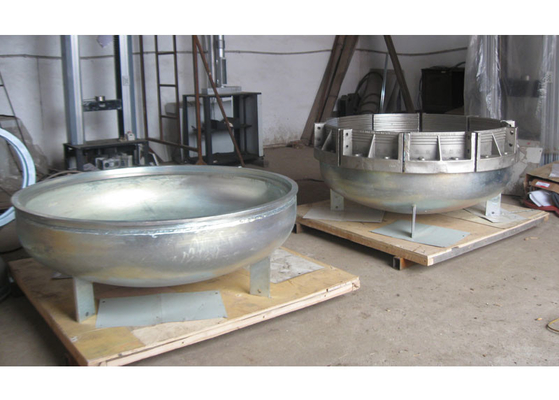

DN 1600mm Plastic Pipe End Caps with A-Type Structure Fixture for Maximum Durability, suitable for internal static pressure test of pipes and pipe fittings. It is used to seal the specimen so that pressure is generated in the specimen, and its characteristics are:
Cast A-type structure fixture, no intermediate tie rod, with ultra-high pressure resistance.
The structure realizes the assembly method of clamping first and then sealing, and the success rate of one-time clamping and sealing reaches 100%.
Radial sealing, suitable for all kinds of pipes (suitable for PE, PVC, PP-R, steel-lined composite pipes, etc.).
Split clamping structure, easy to install, can achieve automatic centering.
Large diameter fixtures are available for a wide range of pipe diameters. The sample does not need to be reshaped before testing and can be easily inserted into the head.
The unique lifting chain device avoids the problem of thin-walled pipe sample crushing and the bottom clamp is difficult to lift; The hook of the clip makes it easy to hang
There is a permanent marker on the fixture to indicate the model information.
Model of a radial outward seal fixture
Technical Parameters:
| Model |
DN 1400 |
| Max. Diameter (mm) |
φ1600 |
| High of one end (mm) |
700 |
| Wright of one end (KG) |
600 |
| O ring size (mm) |
φ1395*25 |
| Max.pressure (Mpa) |
1.2 |
| Nominal value (Mpa) |
1.0 |
Meet standards:
ASTM D1598-2004, ASTMD1599, GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476—2001, etc.
Support and Services:
Our technical support team is available to assist with any questions or issues related to the installation or use of our Plastic Pipe End Caps. They can provide detailed product information, troubleshooting advice, and guidance on best practices for ensuring optimal performance and longevity.
In addition to technical support, we also offer a range of services to help you get the most out of your Plastic Pipe End Caps. These services include custom sizing and labeling, OEM manufacturing, and private labeling. We can work with you to develop a customized solution that meets your specific needs and requirements.
Packing and Shipping:
Product Packaging:
Our Plastic Pipe End Caps come in a set of 2 and are packaged in a sturdy wooden box to ensure safe delivery. Each cap is individually wrapped to prevent any scratches or damage during transportation.
Shipping:
We offer standard shipping options with delivery times ranging from 5-15 business days depending on your location. Expedited shipping options are also available for an additional fee.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is JINHAIHU.
Q2: What is the model number of this product?
A2: The model number of this product is XGY.
Q3: Is this product certified?
A3: Yes, this product is certified with ISO9001.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity for this product is 1 set.
Q5: What are the available payment terms for this product?
A5: The available payment terms for this product are T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
