Features:

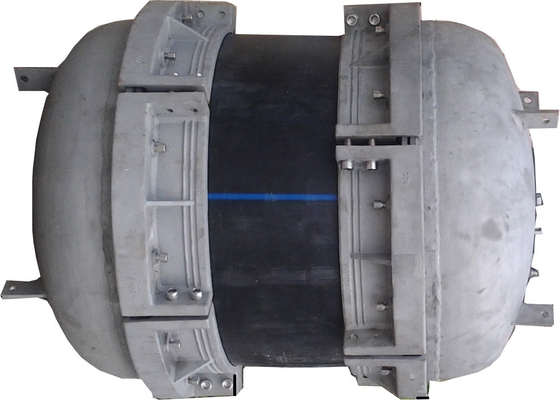

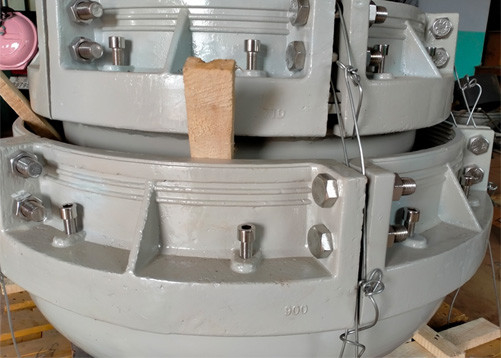

This series of sealing fixture is A-type radial sealing mode precision machining casting, using high-quality stainless steel material, supporting parts are also produced using stainless steel material, with extremely high compressive strength, long-term use without corrosion. Patented technology products, its structure optimization is reasonable, excellent sealing performance, convenient installation, its clip success rate of 100%. The sealing end of the fixture is designed as drum structure, with large force area, small pressure and thin wall, reducing the overall weight of the fixture (lightweight design, easy to carry and install); the contact surface between the clamping frame and the sample is serrated, which increases the clamping force and avoids the occurrence of sample detachment (high success rate). The axial deformation of "○" type sealing ring is not affected by the clamping force between the racks (to avoid leakage phenomenon), so the overall sealing effect is good, light weight, easy to install and disassembly, and saves time and effort. Strong versatility, the standard interface is not only suitable for XGY series test host, but also can be used with other international brands of test machines.
Technical Parameters:
| Max. Diameter (mm) |
φ1060 |
| High of one end (mm) |
550 |
| Wright of one end (KG) |
330 |
| O ring size (mm) |
φ895*25 |
| Max.pressure (Mpa) |
2 |
| Nominal value (Mpa) |
1.5 |
Support and Services:
Our technical support team is available to assist with any questions or issues related to the installation or use of our Plastic Pipe End Caps. They can provide detailed product information, troubleshooting advice, and guidance on best practices for ensuring optimal performance and longevity.
In addition to technical support, we also offer a range of services to help you get the most out of your Plastic Pipe End Caps. These services include custom sizing and labeling, OEM manufacturing, and private labeling. We can work with you to develop a customized solution that meets your specific needs and requirements.
Packing and Shipping:
Product Packaging:
Our Plastic Pipe End Caps come in a set of 2 and are packaged in a sturdy wooden box to ensure safe delivery. Each cap is individually wrapped to prevent any scratches or damage during transportation.
Shipping:
We offer standard shipping options with delivery times ranging from 5-15 business days depending on your location. Expedited shipping options are also available for an additional fee.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is JINHAIHU.
Q2: What is the model number of this product?
A2: The model number of this product is XGY.
Q3: Is this product certified?
A3: Yes, this product is certified with ISO9001.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity for this product is 1 set.
Q5: What are the available payment terms for this product?
A5: The available payment terms for this product are T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
