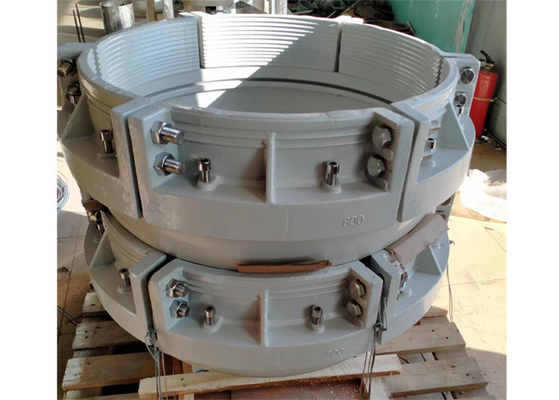

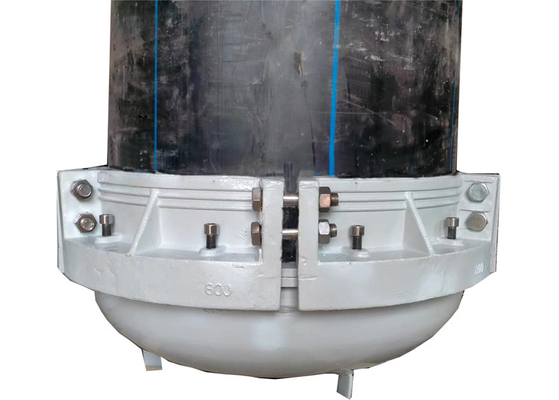

DN 800mm End Cap Hydrostatic Test Plug For Pvc Pe Plastic Pipe With ASTM D 1598/1599 Standards

Applications:

Jinhaihu XGY plastic pipe end caps are the perfect solution for sealing PVC and PE pipe hydrostatic pressure and bursting tests. The product uses a semi-circular base and high-quality O-type silicone rubber sealing ring to ensure that the end cap is firmly fixed in place. Pressure rings, fastening clips, fastening bolts, compression bolts and exhaust valves work together to provide a secure and stable seal.

Jinhaihu XGY plastic pipe end cover has passed ISO9001 quality management system certification and is manufactured in Beijing, China. They are silver-white and weigh about 500 kilograms. This product is Class A, the minimum order quantity is 1 set. The product supply capacity is 100 units per month, and the delivery time is 5-15 working days. The products are packed in standard export wooden cases and can be paid by T/T, L/C, Western Union, payment against documents, acceptance against documents, etc.

Features:

• Product Name: DN 800mm End cap hydrostatic test plug for pvc pe plastic pipe with ASTM D 1598/1599 Standards
• Type: A
• Model: DN 800mm
• Standards: GB/T 6111, EN921, ISO1167, ASTM D 1598/1599
• Exterior Size(mm*mm): φ960*500mm
• The size of seal ring: φ795*25mm
• Can be used as pvc pipe test plug, pp pipe test plug, pipe pressure test plug

Technical Parameters:

Support and Services:

Our technical support team is available to assist with any questions or issues related to the installation or use of our Plastic Pipe End Caps. They can provide detailed product information, troubleshooting advice, and guidance on best practices for ensuring optimal performance and longevity.

In addition to technical support, we also offer a range of services to help you get the most out of your Plastic Pipe End Caps. These services include custom sizing and labeling, OEM manufacturing, and private labeling. We can work with you to develop a customized solution that meets your specific needs and requirements.

Packing and Shipping:

Product Packaging:

Our Plastic Pipe End Caps come in a set of 2 and are packaged in a sturdy wooden box to ensure safe delivery. Each cap is individually wrapped to prevent any scratches or damage during transportation.

Shipping:

We offer standard shipping options with delivery times ranging from 5-15 business days depending on your location. Expedited shipping options are also available for an additional fee.

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is JINHAIHU.

Q2: What is the model number of this product?

A2: The model number of this product is XGY.

Q3: Is this product certified?

A3: Yes, this product is certified with ISO9001.

Q4: What is the minimum order quantity for this product?

A4: The minimum order quantity for this product is 1 set.

Q5: What are the available payment terms for this product?

A5: The available payment terms for this product are T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
