Applications:

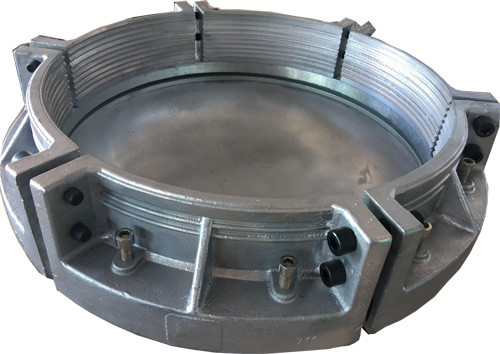

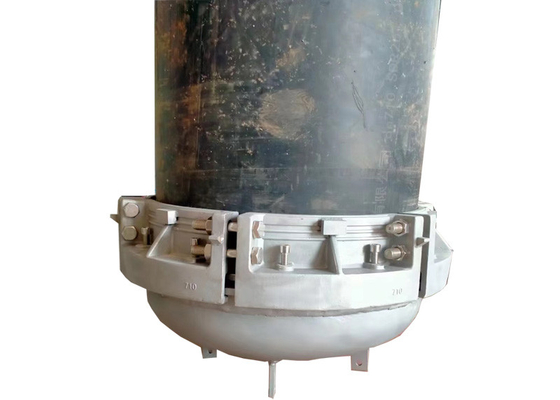

The JINHAIHU XGY plastic pipe end caps are the perfect solution for Hydrostatic pressure and bursting test sealing of PVC and PE pipes. The product adopts a semi-circular base and high-quality O-shaped silicone rubber sealing ring to ensure that the end cap is firmly fixed in place. The pressure ring, fastening clamp, fastening bolt, compression bolt, and exhaust valve work together to provide a safe and stable seal.
Jinhaihu XGY plastic pipe end caps have passed ISO9001 quality management system certification and are manufactured in Beijing, China. They are silver white in color and weigh about 300 kilograms. This product has Type A with a minimum order quantity of 1 set. The product supply capacity is 100 units per month, with a delivery time of 5-15 working days. The product is packaged in standard export wooden boxes and can be paid by wire transfer, letter of credit, Western Union remittance, AliExpress, payment against documents, acceptance against documents, and other methods.
Features:
- Product Name: Plastic Pipe End Caps
- Type: A
- Model: DN 710mm
- Standards: GB/T 6111, EN921, ISO1167, ASTM D 1598/1599
- Exterior Size(mm*mm): φ850*460mm
- The size of seal ring: φ705*18mm
- Can be used as pvc pipe test plug, pp pipe test plug, pipe pressure test plug
Technical Parameters:
| Attribute |
Value |
| Working principle |
Sealing the testing pipes with high temperature resistant silicone seal rings embedded in the stainless steel or carbon steel closures seal groove, the closures metal rings press the silicone seal rings. |
| Product Category |
Plastic Pipe End Caps |
| Type |
A |
| Max.pressure(MPA) |
3 |
| Technics |
Precision Casting |
| Size of seal ring |
φ705*18mm |
| Application |
Sealing PVC, PE, PP-R, ABS, composite pipe samples for hydrostatic test, bursting test, negative pressure test, etc. (including pvc internal plug, pe pipe pressure testing, pe pipe pressure testing) |
| Structural composition |
Semi circular base, O type silicone rubber seal ring, pressure ring, fastening clamp, fastening bolts, compression bolts and vent valve. |
| Material |
304# Stainless Steel Or Carbon Steel |
| Exterior Size(mm*mm) |
φ850*460mm |
Support and Services:
Our technical support team is available to assist with any questions or issues related to the installation or use of our Plastic Pipe End Caps. They can provide detailed product information, troubleshooting advice, and guidance on best practices for ensuring optimal performance and longevity.
In addition to technical support, we also offer a range of services to help you get the most out of your Plastic Pipe End Caps. These services include custom sizing and labeling, OEM manufacturing, and private labeling. We can work with you to develop a customized solution that meets your specific needs and requirements.
Packing and Shipping:
Product Packaging:
Our Plastic Pipe End Caps come in a set of 2 and are packaged in a sturdy wooden box to ensure safe delivery. Each cap is individually wrapped to prevent any scratches or damage during transportation.
Shipping:
We offer standard shipping options with delivery times ranging from 5-15 business days depending on your location. Expedited shipping options are also available for an additional fee.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is JINHAIHU.
Q2: What is the model number of this product?
A2: The model number of this product is XGY.
Q3: Is this product certified?
A3: Yes, this product is certified with ISO9001.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity for this product is 1 set.
Q5: What are the available payment terms for this product?
A5: The available payment terms for this product are T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
