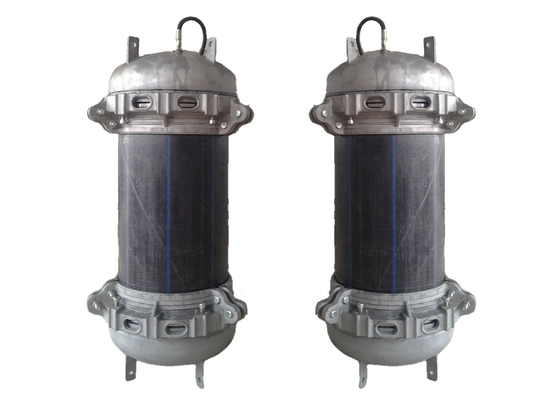

DN 400mm Plastic Pipe End Caps with Fastening Bolts, Vent Valve and Sealing Ring for Structural Composition

DN 400mm Plastic Pipe End Caps with Fastening Bolts, Vent Valve and Sealing Ring for Structural Composition

Applications:

The JINHAIHU XGY Plastic Pipe End Caps are designed for internal pressure testing of PVC and PE pipes. These end caps are perfect for pressure testing PVC pipes in various occasions and scenarios, such as water supply and drainage systems, irrigation systems, and industrial piping systems.

The XGY end caps are made of high-quality 304# stainless steel or carbon steel, which ensures durability and long-lasting performance. The end caps come with an O-ring silicone rubber seal ring, which provides a tight seal and prevents leakage during the pressure testing process.

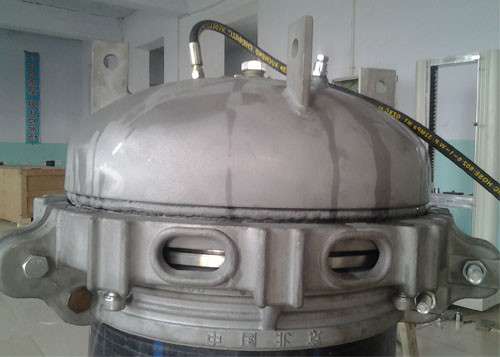

The XGY end caps have a semi-circular base, pressure ring, fastening clamp, fastening bolts, compression bolts, and vent valve. The exterior size of the end caps is 590mm x 340mm, making them suitable for use with DN400mm PVC and PE pipes.

The JINHAIHU XGY Plastic Pipe End Caps have been certified by ISO9001 and are manufactured in Beijing, China. The minimum order quantity for these end caps is 1 set, The supply ability is 100 sets per month, and the delivery time is 10-15 work days.

These end caps are packaged in standard export wooden cases, ensuring that they arrive at their destination in perfect condition. The payment terms for these end caps include T/T, L/C, Western Union, MoneyGram, D/P, and D/A.

Features:

• Product Name: Plastic Pipe End Caps
• Size of seal ring: φ395*12mm
• Exterior Size(mm*mm): φ590*340mm
• Structural composition:
  • Semi circular base
  • O type silicone rubber seal ring
  • Pressure ring
  • Fastening clamp
  • Fastening bolts
  • Compression bolts
  • Vent valve
• Standards:
  • GB/T 6111
  • EN921
  • ISO1167
  • ASTM D 1598/1599
• Color: Silvery white

These Plastic Pipe End Caps are perfect for pressure testing pvc pipe and pvc pe pipe. They can also be used as a pvc test plug.

Technical Parameters:

Support and Services:

If you have any technical questions or need assistance with our product, our knowledgeable technical support team is available to help you. We also offer a range of services to ensure that our end caps meet your specific needs, including custom sizing, labeling, and packaging options. Contact us to learn more about our product and services.

Packing and Shipping:

The end caps will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.

The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.

FAQ:

Q1. What is the brand name of the plastic pipe end caps?

A1. The brand name of the plastic pipe end caps is JINHAIHU.

Q2. What is the model number of the plastic pipe end caps?

A2. The model number of the plastic pipe end caps is XGY.

Q3. What is the certification of the plastic pipe end caps?

A3. The plastic pipe end caps are ISO9001 certified.

Q4. What is the minimum order quantity for the plastic pipe end caps?

A4. The minimum order quantity for the plastic pipe end caps is 1 set.

Q5. What are the payment terms for purchasing the plastic pipe end caps?

A5. The payment terms for purchasing the plastic pipe end caps are T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
