Factory Outlet Falling Weight Test Equipment for Pipes and joints made of PVC-C PVC-O PVC-U
Product Description:

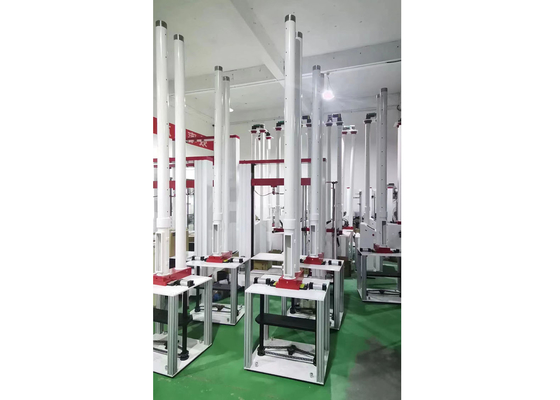

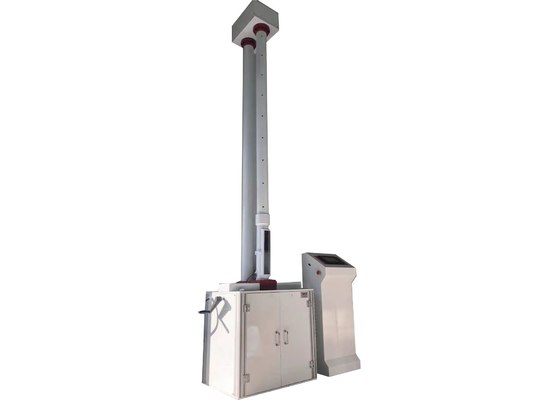

The principle of the drop hammer test equipment is simple and effective. The test piece is struck by a falling hammer of a specific mass and shape that falls from a known height at a designated location around the test piece. The severity of this testing method can be adjusted by changing the mass of the impactor and/or by changing the drop height. The drop hammer testing equipment has a wide range of applications. Meet the requirements of ISO3127 or equivalent testing method standards. Widely used in plastic pipe research, testing, and production units to determine impact resistance, it is also an ideal testing instrument for the building materials industry and research units. The testing machine has the function of preventing secondary impacts and can automatically determine the impact height and display it in real time. It is applicable to both channel and gradient methods. It is a drop hammer impact testing machine that is easy to operate, safe and reliable. In short, the drop hammer testing equipment is an essential equipment for any organization handling material testing. Its reliability, versatility, and accuracy make it the perfect choice for widespread applications. With our comprehensive support and service, you can ensure that your device will always be in optimal working condition. Contact us today to learn more about this innovative product.
Applications:
JINHAIHU XJL-300A is a high-quality Drop Hammer Test Equipment designed for Building Materials Testing Equipment. It is manufactured in BEIJING, CHINA and has been certified with ISO9001. The product is known for its durability and accuracy in testing the impact resistance of materials. It can be used in various scenarios and occasions, including:
- Construction sites
- Manufacturing plants
- Research and development facilities
- Quality control laboratories
- Academic institutions
Conform with standards:
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.
Technical parameter:
| Model |
XJL-300D |
| Ambient temperature |
10℃-35℃ |
| Drop hammer quality |
0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg(can customized) |
| Hammer diameter |
D25mm,D90mm |
| Height of the fall |
10mm-2000mm, error≤±2mm |
| Diameter of the sample |
Φ16mm-Φ630mm |
| Deviation of impact center from fixture center |
≤2mm |
| V-type supporting |
120° |
| source |
220VAC±10% |
| Outline dimension |
720mm×710mm×3950mm |
| Net weight |
385kg |
Support and Services:
We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.
We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.
For more information, please contact us at your convenience.
Packing and Shipping:
The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.
The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.
FAQ:
- Q: What is Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
- Q: What is the purpose of Drop Hammer Test Equipment?
- A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
- Q: What products can Drop Hammer Test Equipment be used for?
- A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
- Q: What is the accuracy of Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
- Q: What is the maximum testing force of Drop Hammer Test Equipment?
- A: The maximum testing energy of Drop Hammer Test Equipment is 300J.
