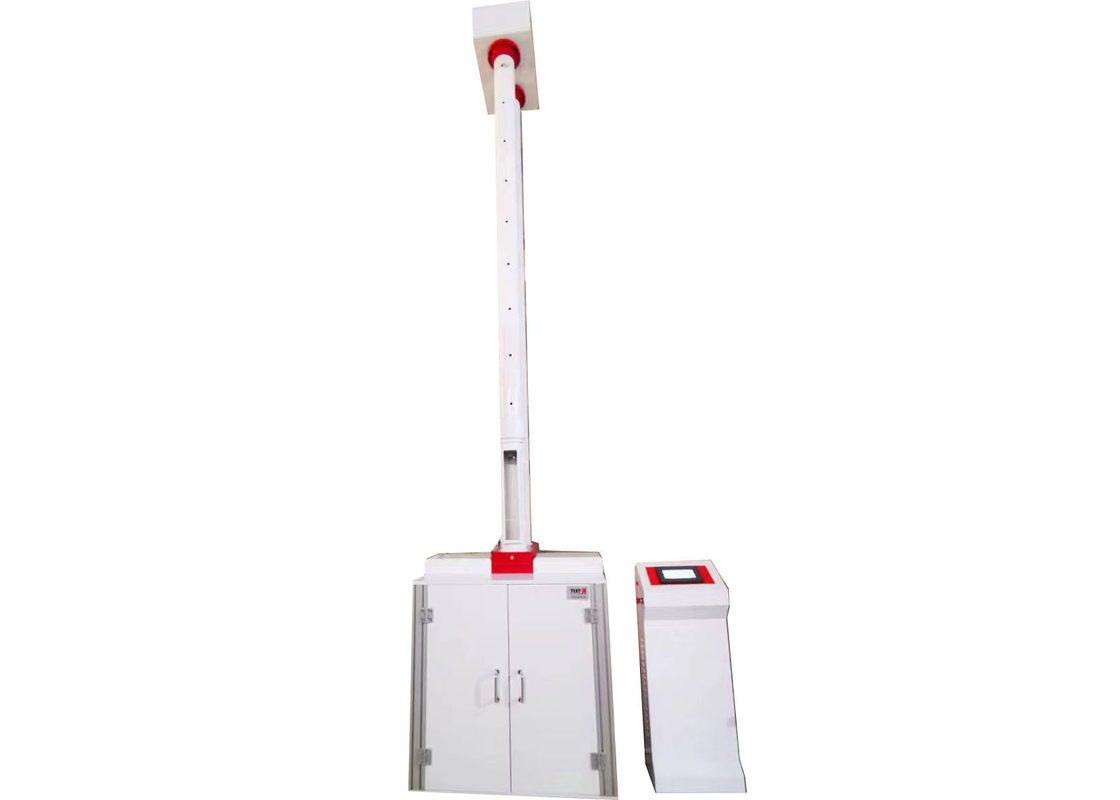

Professional Falling Weight Test Equipment For ISO 3127 Resistance To External Blows

Professional Falling Weight Test Equipment For ISO 3127  Resistance To External Blows

Large Image :  Professional Falling Weight Test Equipment For ISO 3127 Resistance To External Blows

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XJL-300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Professional Falling Weight Test Equipment For ISO 3127 Resistance To External Blows Hammer Diameter: D25mm,D90mm, Etc
Test Range: 0-300J Drop Hammer Quality: 0.5kg-12.5kg
V-type Supporting: 120° Max. Height: 2000mm
Min. Height: 10mm Power Supply: AC220V/50Hz
Highlight:

Professional Falling Weight Test Equipment

,

ISO 3127 Falling Weight Test Equipment

,

External Blows Falling Weight Test Equipment

Professional Falling Weight Test Equipment for ISO 3127 Resistance to External Blows

Application:

JINHAIHU XJL-300A Falling Weight Test Equipment is a high precision and reliable testing machine used for determining the impact resistance of plastic pipes. It meets the requirements of ISO3127 or equivalent test method standard. It is widely used in scientific research, testing, and production units of plastic pipes.

The equipment is an ideal testing instrument for the building materials industry and scientific research units. It has the function of preventing secondary impact and can automatically determine the impact height and display it in real-time. The test machine is applicable to both the passage method and the gradient method. It is a convenient operation, safe and reliable drop hammer impact test machine.



Product Description:

Our falling weight test equipment is designed with an automatic control mode, making it easy to operate and control. It has a minimum drop height of 10mm, ensuring that even the smallest materials can be tested for impact resistance toughness. The equipment is also equipped with the function of preventing secondary impact and can automatically determine the impact height and display it in real-time. It is applicable to both the passage method and the gradient method, making it an ideal test instrument for building materials industry and scientific research units.



Conform with standards:

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422,  ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.



Technical parameter:



Model XJL-300D
Ambient temperature 10℃-35℃
Drop hammer quality 0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg
Hammer diameter D25mm,D90mm
Height of the fall 10mm-2000mm, error≤±2mm
Diameter of the sample Φ16mm-Φ630mm
Deviation of impact center from fixture center ≤2mm
V-type supporting 120°
source 220VAC±10%
Outline dimension 720mm×710mm×3950mm
Net weight 385kg

Support and Services:

We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.

We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.

For more information, please contact us at your convenience.

Packing and Shipping:

The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.

The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.

FAQ:

Q: What is Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
Q: What is the purpose of Drop Hammer Test Equipment?
A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
Q: What products can Drop Hammer Test Equipment be used for?
A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
Q: What is the accuracy of Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
Q: What is the maximum testing force of Drop Hammer Test Equipment?
A: The maximum testing energy of Drop Hammer Test Equipment is 300J.Professional Falling Weight Test Equipment For ISO 3127  Resistance To External Blows 0Professional Falling Weight Test Equipment For ISO 3127  Resistance To External Blows 1Professional Falling Weight Test Equipment For ISO 3127  Resistance To External Blows 2
