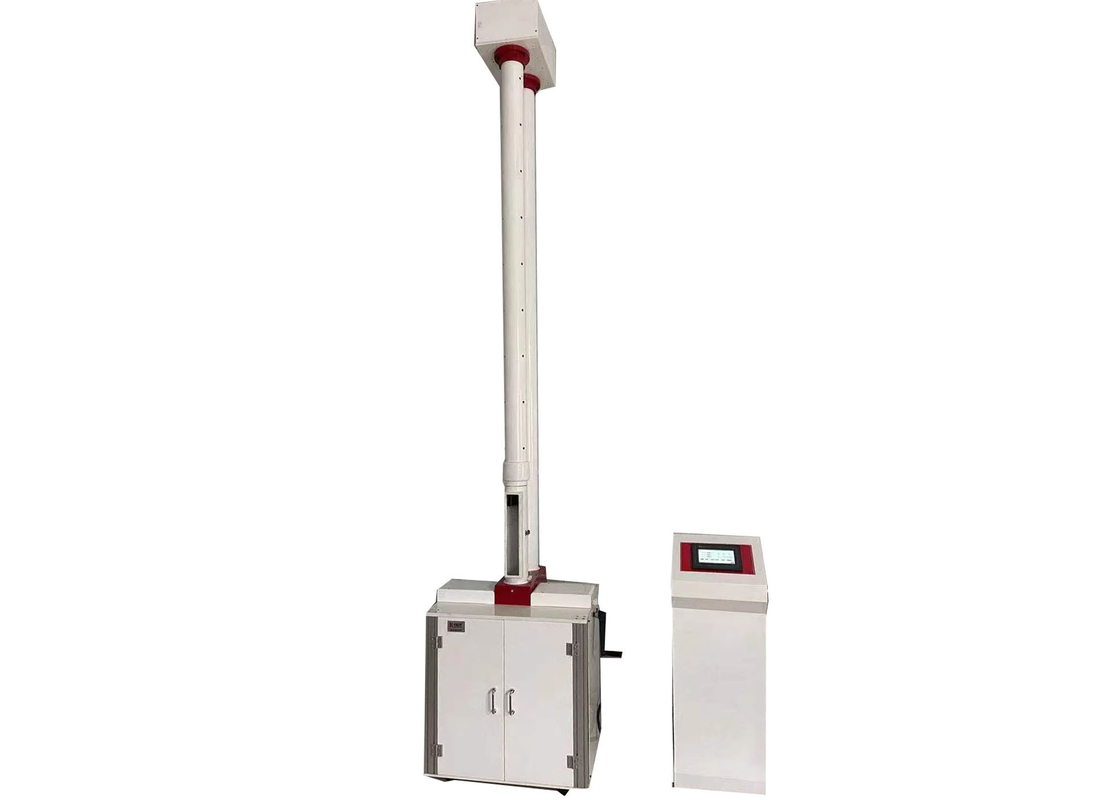

Customizable Drop Hammer Test Equipment For Your Specific Needs

Customizable Drop Hammer Test Equipment For Your Specific Needs
Customizable Drop Hammer Test Equipment For Your Specific Needs
video play

Large Image :  Customizable Drop Hammer Test Equipment For Your Specific Needs

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XJL-300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Customizable Drop Hammer Test Equipment For Your Specific Needs Hammer Diameter: D25mm,D90mm, Etc
Test Range: 0-300J Drop Hammer Quality: 0.5kg-16kg
V-type Supporting: 120° Max. Height: 2000mm
Min. Height: 10mm Power Supply: AC220V/50Hz
High Light:

industrial Drop Hammer Test Equipment

,

Specific Needs Drop Hammer Test Equipment

,

Customizable Drop Hammer Test Equipment

Customizable Drop Hammer Test Equipment for Your Specific Needs

Application:

This equipment is an ideal test instrument for the building materials industry and scientific research units. It is widely used in plastic pipe scientific research, testing, and production units for the determination of impact resistance toughness. The drop hammer impact test machine meets the requirements in ISO3127 or equivalent test method standard. It is a convenient operation, safe, and reliable equipment. The test machine has the function of preventing secondary impact and can automatically determine the impact height and display it in real-time. It is applicable to both the passage method and gradient method.

Our team of engineers and technicians offer comprehensive technical support and service for our drop hammer test equipment. We can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs. Our team is available 24/7 for any questions or concerns. For more information, please contact us at your convenience.



Principle:

Test pieces are subjected to blows from a falling striker,of specified mass and shape,dropped from a known height onto specified positions around the

The severity of this test method can be adjusted by changing the mass of the striker and/or by changing the drop height.It is not technically correct to vary the severity of the test by choosing values of the TIR other than those specified below.

The maximum value acceptable for the TIR is taken to be 10%.



Product Description:

This Drop Hammer Test Equipment is a powerful and high-quality machine that operates on AC220V/50Hz power supply. It is designed for conducting Drop Hammer Tests to evaluate the impact resistance of various materials. The machine is easy to operate and comes with clear instructions that allow you to run your tests quickly and efficiently.



Conform with standards:

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.



Technical parameter:



Model XJL-300D
Ambient temperature 10℃-35℃
Drop hammer quality 0.5kg-16kg

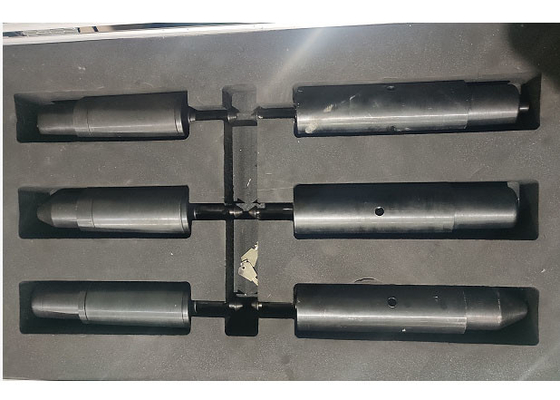

Hammer diameter D25mm,D90mm, etc
Height of the fall 10mm-2000mm,error≤±2mm
Diameter of the sample Φ16mm-Φ630mm
Deviation of impact center from fixture center ≤2mm
V-type supporting 120°
source 220VAC±10%
Outline dimension 715mm×700mm×3900mm
Net weight 380kg

Support and Services:

We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.

We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.

For more information, please contact us at your convenience.

Packing and Shipping:

The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.

The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.

FAQ:

Q: What is Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
Q: What is the purpose of Drop Hammer Test Equipment?
A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
Q: What products can Drop Hammer Test Equipment be used for?
A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
Q: What is the accuracy of Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
Q: What is the maximum testing force of Drop Hammer Test Equipment?
A: The maximum testing energy of Drop Hammer Test Equipment is 300J.Customizable Drop Hammer Test Equipment For Your Specific Needs 0Customizable Drop Hammer Test Equipment For Your Specific Needs 1Customizable Drop Hammer Test Equipment For Your Specific Needs 2
