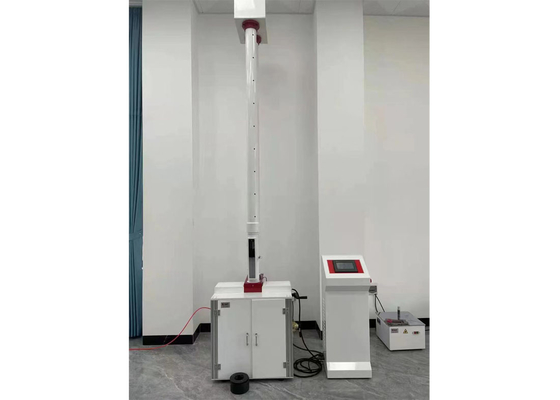

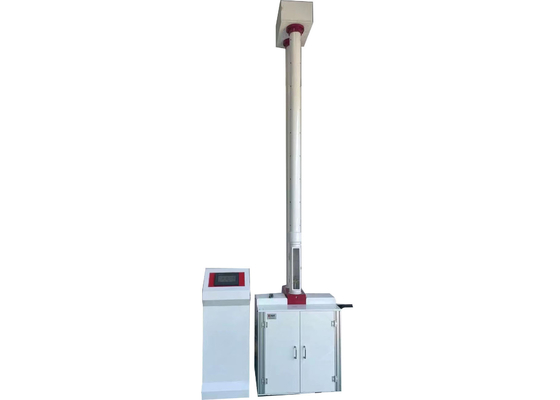

Building Materials Testing Equipment Test Drop-hammer Impact Tester Range 0-300J diameter 10-630mm
Drop Hammer Test Prevent the Second Shock Testing Machine Max. Height 2000mm
Application:
The Drop Hammer Test Equipment has a wide range of applications. It meets the requirements in ISO3127 or equivalent test method standard. It is widely used in plastic pipe scientific research, testing, production units for the determination of impact resistance toughness. It is also an ideal test instrument for the building materials industry and scientific research units. The test machine has the function of preventing secondary impact and can automatically determine the impact height and display it in real time. It is applicable to both the passage method and the gradient method. It is a convenient operation, safe and reliable drop hammer impact test machine.
In conclusion, the Drop Hammer Test Equipment is a must-have for any organization that deals with materials testing. Its reliability, versatility, and accuracy make it the perfect choice for a wide range of applications. With our comprehensive support and services, you can be sure that your equipment will always be in top working condition. Contact us today to learn more about this innovative product.
Principle:
Test pieces are subjected to blows from a falling striker,of specified mass and shape,dropped from a known height onto specified positions around the
The severity of this test method can be adjusted by changing the mass of the striker and/or by changing the drop height.It is not technically correct to vary the severity of the test by choosing values of the TIR other than those specified below.
The maximum value acceptable for the TIR is taken to be 10%.
Product Description:
The Drop Hammer Test Equipment is a Drop Test Hammer Measurement Instrument that can measure the impact resistance of products. The equipment has a drop hammer quality ranging from 0.5kg to 16kg, and the hammer diameter ranges from D25mm to D90mm. The ambient temperature for the product is 10℃-35℃, and the minimum height for the test is 10mm. The equipment can accurately measure and record the drop energy of products during the testing process. The results of the test can be used to determine the durability of the product and its ability to withstand impacts.
The Drop Hammer Test Equipment is a Drop Energy Tester for Hammer Test that is designed to provide accurate and reliable results. The equipment is easy to use and can be operated by a single person. The product is designed to meet the requirements of international standards and is suitable for use in a variety of industries. The equipment can help manufacturers ensure that their products are durable and can withstand impacts during shipping and handling.
Technical parameter:
| Model |
XJL-300D |
| Ambient temperature |
10℃-35℃ |
| Drop hammer quality |
0.5kg-16kg |
| Hammer diameter |
D25mm,D90mm, etc |
| Height of the fall |
10mm-2000mm,error≤±2mm |
| Diameter of the sample |
Φ16mm-Φ630mm |
| Deviation of impact center from fixture center |
≤2mm |
| V-type supporting |
120° |
| source |
220VAC±10% |
| Outline dimension |
715mm×700mm×3900mm |
| Net weight |
380kg |
Support and Services:
We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.
We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.
For more information, please contact us at your convenience.
Packing and Shipping:
The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.
The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.
FAQ:
- Q: What is Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
- Q: What is the purpose of Drop Hammer Test Equipment?
- A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
- Q: What products can Drop Hammer Test Equipment be used for?
- A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
- Q: What is the accuracy of Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
- Q: What is the maximum testing force of Drop Hammer Test Equipment?
- A: The maximum testing energy of Drop Hammer Test Equipment is 300J.
