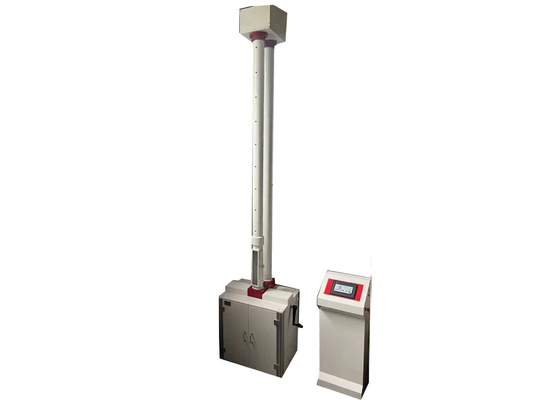

Drop Hammer Test Prevent Second Shock Testing Machine Max Height 2000mm

Drop Hammer Test Prevent Second Shock Testing Machine Max Height 2000mm
Drop Hammer Test Prevent Second Shock Testing Machine Max Height 2000mm
video play

Large Image :  Drop Hammer Test Prevent Second Shock Testing Machine Max Height 2000mm

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XJL-300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Drop Hammer Test Prevent The Second Shock Testing Machine Max. Height 2000mm Test Type: Drop Hammer Test
Test Range: 0-300J Drop Hammer Quality: 0.5kg-16kg
Control Mode: Automatic Max. Height: 2000mm
Min. Height: 10mm Power Supply: AC220V/50Hz
High Light:

2000mm Drop Hammer Test

,

Prevent Second Shock Testing Machine

,

Second Shock Testing Machine

Drop Hammer Test Prevent the Second Shock Testing Machine Max. Height 2000mm

Application:

The drop hammer impact test machine meets the requirements in ISO3127 or equivalent test method standard. Widely used in plastic pipe scientific research, testing, production units for the determination of impact resistance toughness. Is the building materials industry, scientific research units of the ideal test instrument. The test machine has the function of preventing secondary impact, and can automatically determine the impact height and display it in real time. It is applicable to both the passage method and the gradient method. It is a convenient operation, safe and reliable drop hammer impact test machine.



Principle:

Test pieces are subjected to blows from a falling striker,of specified mass and shape,dropped from a known height onto specified positions around the

The severity of this test method can be adjusted by changing the mass of the striker and/or by changing the drop height.It is not technically correct to vary the severity of the test by choosing values of the TIR other than those specified below.

The maximum value acceptable for the TIR is taken to be 10%.



Product Features:

This testing machine adopted PLC control system. Operator can preset the impact height. It also can prevent the secondary impact and lift the hammer to the target height automatically. The height of the hammer is displayed all the time. XJL-300C Drop Hammer Impact Testing Machine is of high reliability and precision. It meets with the technical requirements on GB6112-85 of drop hammer impact test.



Technical parameter:



Model XJL-300D
Ambient temperature 10℃-35℃
Drop hammer quality 0.5kg-16kg
Hammer diameter D25mm,D90mm, etc
Height of the fall 10mm-2000mm,error≤±2mm
Diameter of the sample Φ16mm-Φ630mm
Deviation of impact center from fixture center ≤2mm
V-type supporting 120°
source 220VAC±10%
Outline dimension 715mm×700mm×3900mm
Net weight 380kg

Support and Services:

We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.

We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.

For more information, please contact us at your convenience.

Packing and Shipping:

The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.

The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.

FAQ:

Q: What is Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
Q: What is the purpose of Drop Hammer Test Equipment?
A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
Q: What products can Drop Hammer Test Equipment be used for?
A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
Q: What is the accuracy of Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
Q: What is the maximum testing force of Drop Hammer Test Equipment?
A: The maximum testing energy of Drop Hammer Test Equipment is 300J.Drop Hammer Test Prevent Second Shock Testing Machine Max Height 2000mm 0Drop Hammer Test Prevent Second Shock Testing Machine Max Height 2000mm 1Drop Hammer Test Prevent Second Shock Testing Machine Max Height 2000mm 2
