Carton Compression Testing Machine / Packages Digital Compressive Strength Testing Instrument

Carton Compression Testing Machine / Packages Digital Compressive Strength Testing Instrument
Carton Compression Testing Machine / Packages Digital Compressive Strength Testing Instrument
video play

Large Image :  Carton Compression Testing Machine / Packages Digital Compressive Strength Testing Instrument

Product Details:
Place of Origin: CHINA
Brand Name: JHH
Certification: ISO9001
Model Number: XWW-50KN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard wooden box
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Detailed Product Description
Name: Carton Compression Testing Machine/Packages Digital Compressive Strength Testing Instrument Test Types: Tensile, Compression, Bending, Shear, Peel, Adhesion, Etc.
Capacity: 50KN Force Unit: Kgf, Gf ,Lbf ,mN, N, KN, Ton
Force-measuring Range: 0.4%~100%FS Accuracy: ±0.5%
Safety Protection: Overload, Over-travel, Over-voltage, Over-current Test Space: 1500*1500mm
High Light:

Digital compressive strength testing instrument

,

Carton compression testing machine

,

Packages compression testing machine

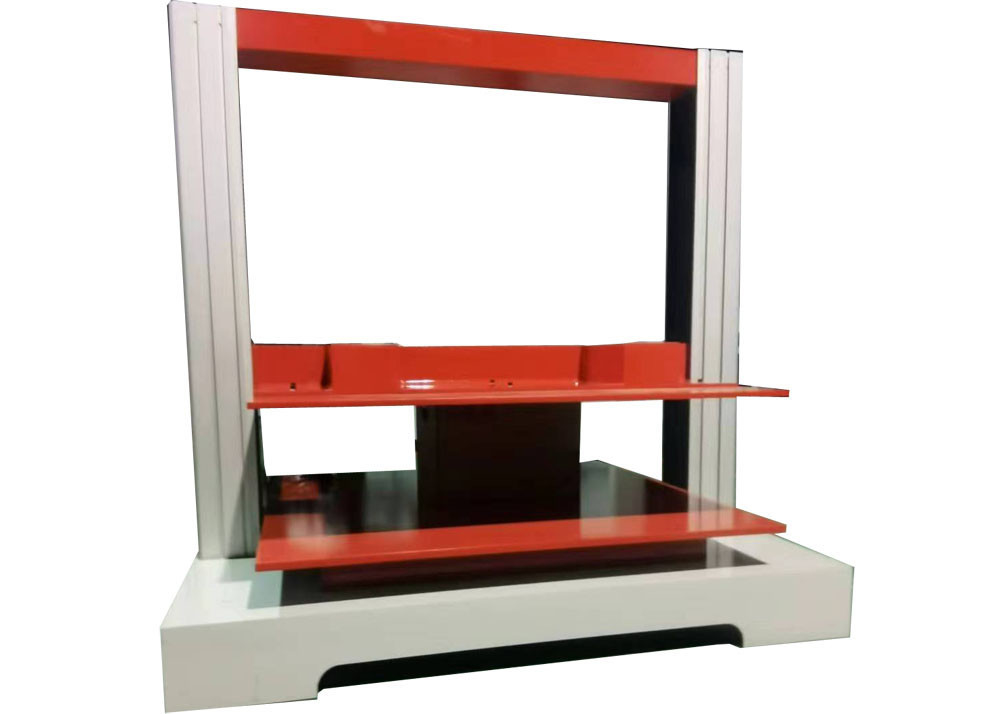

Carton compression testing machine/Packages digital compressive strength testing instrument

Applications:

Carton compression testing machine/Packages digital compressive strength testing instrument is the essential testing equipent to test the compressive strength of carton box.

The product is also widely used in tensile, compression, bending and shearing tests of metal and nonmetal materials. With a variety of accessories, it can also be used for the mechanical properties of profiles and components. In the test field of rope, tape, wire, rubber, plastic and other materials with large deformation and fast test speed, it also has a very wide application prospect. Suitable for quality supervision, teaching and research, aerospace, iron and steel metallurgy, automobile, construction materials and other test fields.

Product Description:

Main characters

(1)Strength test :to test the maximal strength of carton

(2)Definite value test: the data can be preset to test the strength and variant of the carton

(3)Stacking test : can have the stacking test within 12 or 24 hours

(4)Good design,adopted precise whorl and guide pillar which can assure the stability

(5)Servo motor control,compression speed is10mm/min,and return speed can get to 100mm/min

(6)Use high precision pressure sensor to make the measurement accurate

(7)According to the user's need to design

(8)Computer or Touch-screen display



Technical Parameters:

Model XWW-50KN
Type Double screw
Max. Load 50KN
Resolution of Load 1/300000
Accuracy Grade 0.5 grade
Force      Force-measuring Range 0.5%~100%FS
Force-measuring Accuracy ≤±0.5%
Range of force control rate 0.005--5%FS/S
Relative error of force control rate Within±1% of set value



Metal extensometer







     Measurement range 0.2-100%FS
Range of deformation rate 0.02~5%FS/S
Error of indication Within±0.5%
Resolution 1/300000
Large deformation

.    Measurement range

5mm-1000mm
Error of indication Within±0.5%
Resolution 0.001mm
Crossbeam      Crossbeam Displacement Resolution 0.001mm
Crossbeam Speed Range 0.001-500mm/min
Test width 1500mm (or according needing)
Total Crossbeam Valid Travel 1500mm
Clamps Compression plate
PC System Control force, displacement and deformation
Power Supply AC220V; 1500w
Standards GB/T1040/1041/9341/8804/9647/17200, GB/6491, GB/T4857.4, GB/T4857.16, ISO7500-1, ISO5893, ASTMD6386, ISO2872, ASTM D642, ISO12048, etc
Weight 1280Kg


Customization:

This customized service offers customers the best Electronic Universal Testing Machine that meets their specific needs. The machine features a tensile space of 600mm, a dimension of 1000mm*800mm*2000mm, a stroke of 1000mm, and a test force range of 3-300kN. It also includes multiple safety protections such as overload, over-travel, over-voltage, and over-current protection.

The Electronic Universal Testing Machine is a great choice for anyone looking for a reliable and efficient testing machine to measure tensile strength. With its enhanced safety protections and customizable features, customers are sure to find the perfect machine for their needs.



Support and Services:

Technical Support and Service for Electronic Universal Testing Machine

We provide professional technical support and service for the Electronic Universal Testing Machine. As the manufacturer of the product, we are committed to ensuring that our customers get the best service for their needs.

Technical Assistance

We are available to answer any technical questions and provide guidance on the use of the product. Our experienced technical team can provide assistance with installation, operation, and troubleshooting.

Repair Services

We offer repair services for the Electronic Universal Testing Machine. Our technicians are available to diagnose and repair any issues that may arise with the product. We can also provide parts and components to replace any defective parts.

Preventative Maintenance

We also offer preventative maintenance services. Our technicians can inspect the product and components to ensure that they are functioning properly and that the product is in good condition. This can help reduce the likelihood of any major issues arising in the future.

Training

We provide training services for the Electronic Universal Testing Machine. Our team of experts can train your staff on the use and maintenance of the product, so they can get the most out of it.

Warranty

We offer a warranty on the Electronic Universal Testing Machine. If any issues arise within the warranty period, we will repair or replace the product free of charge.



Packing and Shipping:

Packaging and Shipping

The Electronic Universal Testing Machine will be packaged with great care and precision using bubble wrap, foam, and other protective packaging materials. It will be securely fastened to a skid before being loaded onto a truck for shipping. The product will be shipped via a reliable, insured freight carrier.



FAQ:

  • Q1: What is an Electronic Universal Testing Machine? A1: An Electronic Universal Testing Machine is a device used to measure the mechanical properties of materials such as tensile strength, compression strength, modulus of elasticity, and elongation.
  • Q2: What materials can be tested with an Electronic Universal Testing Machine? A2: An Electronic Universal Testing Machine can be used to test a variety of materials including metals, plastics, elastomers, and composites.
  • Q3: How accurate are Electronic Universal Testing Machines? A3: Electronic Universal Testing Machines are highly accurate and can measure to within ±0.5% of the actual value.
  • Q4: What types of tests can be performed with an Electronic Universal Testing Machine? A4: An Electronic Universal Testing Machine can be used for a variety of tests including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
  • Q5: What are the benefits of using an Electronic Universal Testing Machine? A5: An Electronic Universal Testing Machine is a cost-effective and accurate way to measure the mechanical properties of materials. It is also easy to use and can provide quick results.Carton Compression Testing Machine / Packages Digital Compressive Strength Testing Instrument 0Carton Compression Testing Machine / Packages Digital Compressive Strength Testing Instrument 1Carton Compression Testing Machine / Packages Digital Compressive Strength Testing Instrument 2
