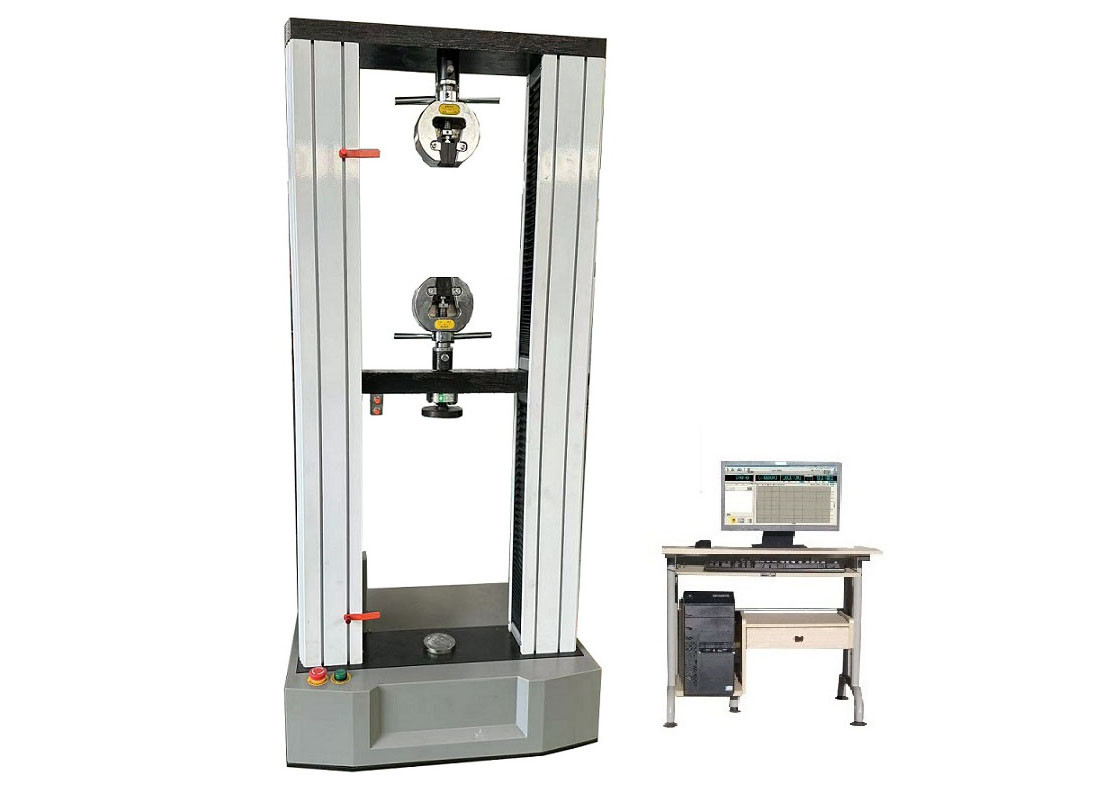

Computer Controlled Electronic Universal Tension and Compression Machine
Product Description:
The Electronic Universal Tension and Compression Machine has a force-measuring accuracy of ≤±0.5%, which ensures that the test results are precise and reliable. It is designed with advanced technology and features such as automatic calibration, overload protection, and automatic data collection. These features make the machine easy to operate and maintain.
The Electronic Universal Tension and Compression Machine is suitable for testing various materials such as metals, plastics, rubber, textiles, and ceramics. It is widely used in quality control, research and development, and material testing laboratories. The machine is easy to use and can perform various tests such as tensile, compression, bending, and shearing tests.
Applications:
The XWW series testing machine is widely used in the field of rubber, plastic, PVC pipe, board, metal wire, cable, waterproof materials and film industry. By using different kinds of accessories, it can do the test of tensile, compression, bending, shear, peeling, tearing and all other kinds of testing. This is a common testing equipment for all kinds of lab and quality control department to determine the material quality and mechanics analyzing.
The machine is design and made according to the GB/T16491-1996, ISO5893, ASTM D638, 695 and 790.
Technical Parameters:
| Model |
XWW-10KN |
| Type |
Double screw |
| Max. Load |
10KN |
| Resolution of Load |
1/300000 |
| Accuracy Grade |
0.5 grade |
| Force |
Force-measuring Range |
0.5%~100%FS |
| Force-measuring Accuracy |
≤±0.5% |
| Range of force control rate |
0.005--5%FS/S |
| Relative error of force control rate |
Within±1% of set value |
|
Metal extensometer
|
Measurement range |
0.2-100%FS |
| Range of deformation rate |
0.02~5%FS/S |
| Error of indication |
Within±0.5% |
| Resolution |
1/300000 |
| Large deformation |
. Measurement range
|
5mm-1000mm |
| Error of indication |
Within±0.5% |
| Resolution |
0.001mm |
| Crossbeam |
Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.001-500mm/min |
| Test width |
380mm (or according needing) |
| Total Crossbeam Valid Travel |
800mm |
| Clamps |
Wedge Grip(or according to your needs) |
| PC System |
Control force, displacement and deformation |
| Power Supply |
AC220V;400w |
| Standards |
GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790 |
| Weight |
290Kg |
| Packing size |
700mm*420mm*2000mm |
Customization:
Customized Electronic Universal Testing Machine Service
This customized service offers customers the best Electronic Universal Testing Machine that meets their specific needs. The machine features a tensile space of 600mm, a dimension of 1000mm*800mm*2000mm, a stroke of 1000mm, and a test force range of 3-300kN. It also includes multiple safety protections such as overload, over-travel, over-voltage, and over-current protection.
The Electronic Universal Testing Machine is a great choice for anyone looking for a reliable and efficient testing machine to measure tensile strength. With its enhanced safety protections and customizable features, customers are sure to find the perfect machine for their needs.
Support and Services:
Technical Support and Service for Electronic Universal Testing Machine
We provide professional technical support and service for the Electronic Universal Testing Machine. As the manufacturer of the product, we are committed to ensuring that our customers get the best service for their needs.
Technical Assistance
We are available to answer any technical questions and provide guidance on the use of the product. Our experienced technical team can provide assistance with installation, operation, and troubleshooting.
Repair Services
We offer repair services for the Electronic Universal Testing Machine. Our technicians are available to diagnose and repair any issues that may arise with the product. We can also provide parts and components to replace any defective parts.
Preventative Maintenance
We also offer preventative maintenance services. Our technicians can inspect the product and components to ensure that they are functioning properly and that the product is in good condition. This can help reduce the likelihood of any major issues arising in the future.
Training
We provide training services for the Electronic Universal Testing Machine. Our team of experts can train your staff on the use and maintenance of the product, so they can get the most out of it.
Warranty
We offer a warranty on the Electronic Universal Testing Machine. If any issues arise within the warranty period, we will repair or replace the product free of charge.
Packing and Shipping:
Packaging and Shipping
The Electronic Universal Testing Machine will be packaged with great care and precision using bubble wrap, foam, and other protective packaging materials. It will be securely fastened to a skid before being loaded onto a truck for shipping. The product will be shipped via a reliable, insured freight carrier.
FAQ:
- Q1: What is an Electronic Universal Testing Machine? A1: An Electronic Universal Testing Machine is a device used to measure the mechanical properties of materials such as tensile strength, compression strength, modulus of elasticity, and elongation.
- Q2: What materials can be tested with an Electronic Universal Testing Machine? A2: An Electronic Universal Testing Machine can be used to test a variety of materials including metals, plastics, elastomers, and composites.
- Q3: How accurate are Electronic Universal Testing Machines? A3: Electronic Universal Testing Machines are highly accurate and can measure to within ±0.5% of the actual value.
- Q4: What types of tests can be performed with an Electronic Universal Testing Machine? A4: An Electronic Universal Testing Machine can be used for a variety of tests including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
- Q5: What are the benefits of using an Electronic Universal Testing Machine? A5: An Electronic Universal Testing Machine is a cost-effective and accurate way to measure the mechanical properties of materials. It is also easy to use and can provide quick results.
