Computer controlled universal testing machine for plastic raw materials and finished semi-finished products
Product Description:

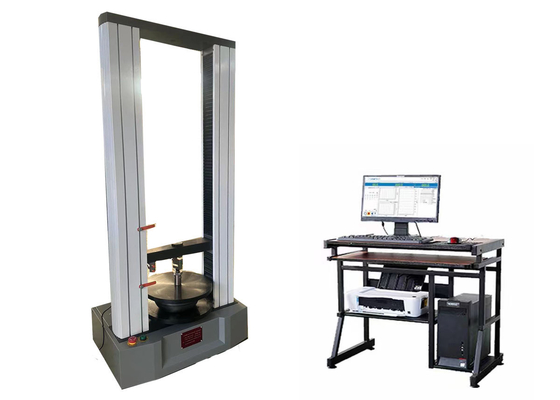

The Electronic Universal Testing Machine is a reliable and efficient laboratory testing equipment that is designed to measure the force-measuring range between 0.4%~100%FS. providing highly accurate measurements of the test specimen's stress state. The product conforms to several standards such as GB/T 9647, GB/T 18042, GB/T 5352, ISO9969, and many more, making it a reliable and efficient testing equipment.
The Electronic Universal Testing Machine is designed to measure the force in multiple units such as kgf, gf, Lbf, mN, N, KN, and Ton. This feature makes it easier for laboratories to perform tests on various materials such as metals, plastics, and composites.
The Tensile testing machine is ideal for testing materials that are subjected to tension. This machine is designed to measure the stress and strain properties of materials under tensile loads. The Electronic Universal Testing Machine can also be used for compression testing, making it a versatile laboratory testing equipment. The compression testing machine is used to measure the compressive properties of materials subjected to a compressive force.
The Electronic Universal Testing Machine is an Electrically-powered Universal Stress Testing System that is easy to operate. The product comes with user-friendly software that enables operators to perform tests easily. The software is designed to provide accurate measurements and calculations of the test results, making it easy for users to interpret the test data.
Applications:
The JINHAIHU XWW- Electronic Universal Testing Machine is a high-quality digital testing machine that can measure the tensile and compression strength of various materials. It is widely used in mechanical, metallurgical, construction, and other industries for quality control and research purposes. With an ISO9001 certification and manufactured in Beijing, China, this product is a reliable and accurate testing tool for any business.
The Electronic Universal Tension and Compression Machine is suitable for a wide range of applications and scenarios. It can be used to test the mechanical properties of metals, plastics, rubber, textiles, and other materials. This product is particularly useful for quality control during production, as well as for research and development purposes. The force-measuring accuracy of the machine is ≤±0.5%, and it has a displacement resolution of 0.001mm. This ensures accurate and reliable results every time.

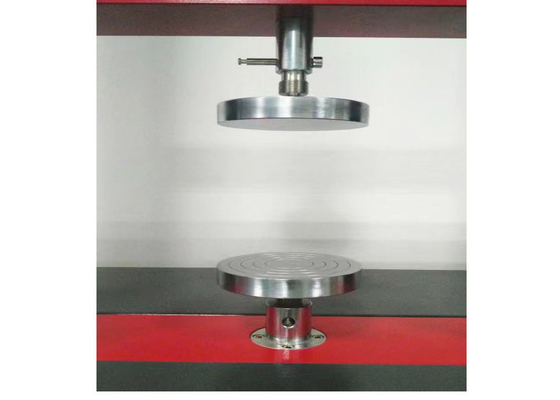

The Digital Universal Materials Testing Machine is capable of testing and analyzing the compression, bending, and other mechanical properties of containers such as corrugated cardboard boxes, honeycomb panels, flexible packaging bags, plastic barrels (edible oil, mineral water), paper barrels, paper cans, IBC barrels, and hollow containers. This makes it an ideal choice for businesses involved in packaging and shipping. With a minimum order quantity of only 1 set and a price range of USD 5800~7500 per set, it is an affordable investment for any business.
Technical Parameters:
| Model |
XWW-10KN |
| Type |
Double screw |
| Max. Load |
10KN |
| Resolution of Load |
1/300000 |
| Accuracy Grade |
0.5 grade |
| Force |
Force-measuring Range |
0.5%~100%FS |
| Force-measuring Accuracy |
≤±0.5% |
| Range of force control rate |
0.005--5%FS/S |
| Relative error of force control rate |
Within±1% of set value |
|
Metal extensometer
|
Measurement range |
0.2-100%FS |
| Range of deformation rate |
0.02~5%FS/S |
| Error of indication |
Within±0.5% |
| Resolution |
1/300000 |
| Large deformation |
. Measurement range
|
5mm-1000mm |
| Error of indication |
Within±0.5% |
| Resolution |
0.001mm |
| Crossbeam |
Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.001-500mm/min |
| Test width |
380mm (or according needing) |
| Total Crossbeam Valid Travel |
800mm |
| Clamps |

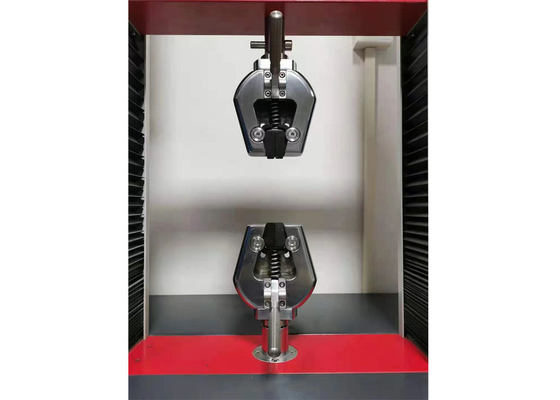

Wedge Grip(or according to your needs) |
| PC System |
Control force, displacement and deformation |
| Power Supply |
AC220V;400w |
| Standards |
GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790 |
| Weight |
290Kg |
| Packing size |
700mm*420mm*2000mm |
Customization:
Customized Electronic Universal Testing Machine Service
This customized service offers customers the best Electronic Universal Testing Machine that meets their specific needs. The machine features a tensile space of 600mm, a dimension of 1000mm*800mm*2000mm, a stroke of 1000mm, and a test force range of 3-300kN. It also includes multiple safety protections such as overload, over-travel, over-voltage, and over-current protection.
The Electronic Universal Testing Machine is a great choice for anyone looking for a reliable and efficient testing machine to measure tensile strength. With its enhanced safety protections and customizable features, customers are sure to find the perfect machine for their needs.
Support and Services:
Technical Support and Service for Electronic Universal Testing Machine
We provide professional technical support and service for the Electronic Universal Testing Machine. As the manufacturer of the product, we are committed to ensuring that our customers get the best service for their needs.
Technical Assistance
We are available to answer any technical questions and provide guidance on the use of the product. Our experienced technical team can provide assistance with installation, operation, and troubleshooting.
Repair Services
We offer repair services for the Electronic Universal Testing Machine. Our technicians are available to diagnose and repair any issues that may arise with the product. We can also provide parts and components to replace any defective parts.
Preventative Maintenance
We also offer preventative maintenance services. Our technicians can inspect the product and components to ensure that they are functioning properly and that the product is in good condition. This can help reduce the likelihood of any major issues arising in the future.
Training
We provide training services for the Electronic Universal Testing Machine. Our team of experts can train your staff on the use and maintenance of the product, so they can get the most out of it.
Warranty
We offer a warranty on the Electronic Universal Testing Machine. If any issues arise within the warranty period, we will repair or replace the product free of charge.
Packing and Shipping:
Packaging and Shipping
The Electronic Universal Testing Machine will be packaged with great care and precision using bubble wrap, foam, and other protective packaging materials. It will be securely fastened to a skid before being loaded onto a truck for shipping. The product will be shipped via a reliable, insured freight carrier.
FAQ:
- Q1: What is an Electronic Universal Testing Machine? A1: An Electronic Universal Testing Machine is a device used to measure the mechanical properties of materials such as tensile strength, compression strength, modulus of elasticity, and elongation.
- Q2: What materials can be tested with an Electronic Universal Testing Machine? A2: An Electronic Universal Testing Machine can be used to test a variety of materials including metals, plastics, elastomers, and composites.
- Q3: How accurate are Electronic Universal Testing Machines? A3: Electronic Universal Testing Machines are highly accurate and can measure to within ±0.5% of the actual value.
- Q4: What types of tests can be performed with an Electronic Universal Testing Machine? A4: An Electronic Universal Testing Machine can be used for a variety of tests including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
- Q5: What are the benefits of using an Electronic Universal Testing Machine? A5: An Electronic Universal Testing Machine is a cost-effective and accurate way to measure the mechanical properties of materials. It is also easy to use and can provide quick results.
