Product Details:
Payment & Shipping Terms:
|

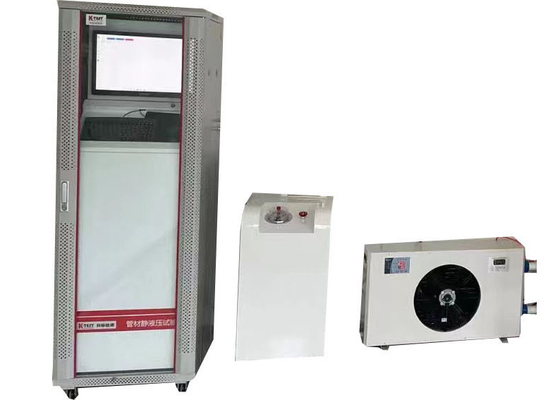

| Product Name: | Hydrostatic Pressure & Bursting Testing Machine Pipe Diameter Range Φ8-1800mm PPR PB PERT PE PVC | Testing Range: | 0-16MPA |
|---|---|---|---|
| Accuracy: | -1%~+2% | Test Temperature Range: | 15~95℃ |
| End Caps: | Φ8-1800mm | Display: | LCD |
| Test Curve: | Pressure-time And Pressure-temperature | Safety Protection: | Over Pressure/Over Temperature |
| Test Mode: | Automatic | Test Medium: | Water |
| Customized Support: | OEM | Certificate: | CE, ISO |
| Highlight: | PB Hydrostatic pressure testing machine,PPR Hydrostatic pressure testing machine,PERT Hydrostatic pressure testing machine |
||
This hydrostatic pressure testing machine is suitable for a wide range of product application occasions and scenarios. It is commonly used in the testing of thermoplastic pipes used in water supply and drainage systems, heating systems, and other industrial applications. This machine is especially useful in the construction industry for ensuring the quality and safety of pipes used in buildings and infrastructure..
This Hydrostatic Pressure Testing Machine comes with an overpressure and over-temperature safety protection feature, which ensures that the machine is safe to use. The overpressure safety protection feature automatically cuts off the water supply when the pressure exceeds the set value, while the over-temperature safety protection feature automatically cuts off the heating power supply when the temperature exceeds the set value.
This Hydrostatic Pressure Testing Machine is certified by CE and ISO, ensuring its quality and reliability. With an accuracy of -1%~+2%, this testing machine provides precise and consistent results. The testing range of 0-16MPA makes it suitable for testing a wide range of plastic pipes.
Whether you are in the manufacturing or testing industry, this Plastic Pipe Hydrostatic Pressure Testing Machine is the perfect tool for testing the hydrostatic pressure of plastic pipes. Its safety protection features, certification, accuracy, and testing range make it an ideal choice for any facility that deals with plastic pipes such as PPR, PB, and PERT as well as thermoplastic pipes.
Features:
Product Name: Hydrostatic Pressure & BurstingTesting Machine
Accuracy: -1%~+2%
Test Curve: Pressure-time And Pressure-temperature
Test Temperature Range: 15~95℃
Testing Range: 0-16MPA
Application: Suitable for hydrostatic pressure & bursting testing of PE PVC PPR PB PERT and other thermoplastics pipes and fittings
Meet Standards:
| Model | XGY-16C | |
| Diameter range | Φ8-1800mm | |
| Stations | 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized | |
| Control mode | Micro-control, industrial PC control | |
| Display mode | Industrial PC LCD color display | |
| Storage mode | PC strorage | |
| Print mode | Color printer output | |
| Test pressure | Pressure range | 0.1-16MPa |
| Control accuracy | ±1% | |
| Display resolution | 0.01MPa | |
| Working range | 5%~100%FS | |
| Indication error | ±1% | |
| Test Timer | Timer range | 0~10000h |
| Timer accuracy | ±0.1% | |
| Timer resolution | 1s | |
| Power | 380V 50Hz three-phase four-wire 1.5KW | |
| end caps models | from Φ8 to 1800mm | |

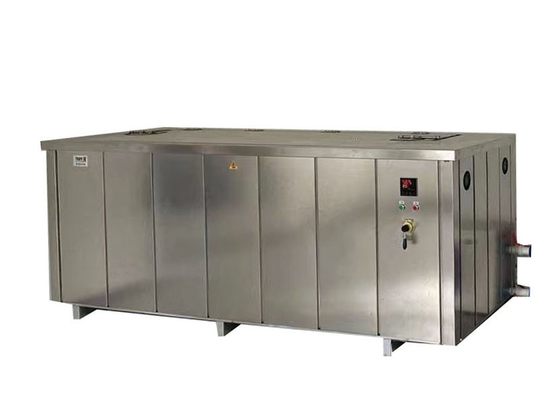

| Water tank size | accoard to the pipe size | |
| Temperature range | 15-95℃ | |
| Dimensions (three stations) |
715×625×1700(mm)or others |
|
We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:
We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.
