0-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1%

0-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1%
0-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1%
video play

Large Image :  0-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1%

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XGY-20C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: 0-16MPA Hydrostatic Pressure Bursting Testing Machine For Precise Control Accuracy ±1% Testing Range: 0-16MPA
Accuracy: -1%~+2% Test Temperature Range: 15~95℃
End Caps: Φ​8-1800mm Display: LCD
Test Curve: Pressure-time And Pressure-temperature Safety Protection: Over Pressure/Over Temperature
Test Mode: Automatic Test Medium: Water
Customized Support: OEM Certificate: CE, ISO
Highlight:

Bursting Hydrostatic Pressure Testing Machine

,

16MPA Hydrostatic Pressure Testing Machine

,

Precise Control Hydrostatic Pressure Testing Machine

0-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1%

Applications:

With a test pressure range of 0.2-16MPa and a testing range of 0-16MPA, this machine can accurately measure the strength and durability of pipes to ensure they are safe to use. The safety protection features, including over pressure and over temperature protection, provide added security to the testing process.

The JINHAIHU XGY hydrostatic pressure and bursting testing machine is suitable for a range of applications, including the testing of water supply systems, drainage systems, gas pipelines, and more. It is a versatile product that can be used by engineers and technicians across various industries.

Product Description:

One of the key features of this testing machine is its high level of accuracy. With an accuracy range of -1%~+2%, you can rest assured that your test results will be precise and reliable. This accuracy is critical when testing the quality of thermoplastic pipes, as even small variations can have a significant impact on their performance and lifespan.

Another important attribute of this machine is its test temperature range. With a range of 15~95℃, this machine can accurately simulate a wide range of real-world conditions, ensuring that your pipes can withstand even the harshest environments. This is particularly important when testing thermoplastic pipes, which are often used in demanding applications such as chemical processing, oil and gas production, and water treatment.

The Hydrostatic Pressure Testing Machine also offers customized support for OEM customers. This means that you can work with our team to design a testing solution that meets your specific needs and requirements. Whether you need to test pipes of a certain diameter range, or you require a specific control mode, we can work with you to create a solution that meets your unique needs.



Features:

Product Name: Hydrostatic Pressure Testing Machine
Test Mode: Automatic
Temperature range: 15-95℃
Safety Protection: Over Pressure/Over Temperature
Display: LCD

Applicable pipe diameter range: Φ8-1800mm

This hydrostatic pressure and bursting testing machine is ideal for testing plastic pipes such as ppr, pe, pvc, pb, and pert. Its automatic test mode and LCD display make it easy to use, while its safety protections against over pressure and over temperature ensure safe operation. With a temperature range of 15-95℃, it is suitable for testing a variety of pipes.



Meet Standards:

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.

Technical Parameters:

Model XGY-16C
Diameter range Φ8-1800mm
Stations 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized
Control mode Micro-control, industrial PC control
Display mode Industrial PC LCD color display
Storage mode PC strorage
Print mode Color printer output
Test pressure Pressure range 0.1-16MPa
Control accuracy ±1%
Display resolution 0.01MPa
Working range 5%~100%FS
Indication error ±1%
Test Timer Timer range 0~10000h
Timer accuracy ±0.1%
Timer resolution 1s
Power 380V 50Hz three-phase four-wire 1.5KW
end caps models from Φ​16 to 630mm

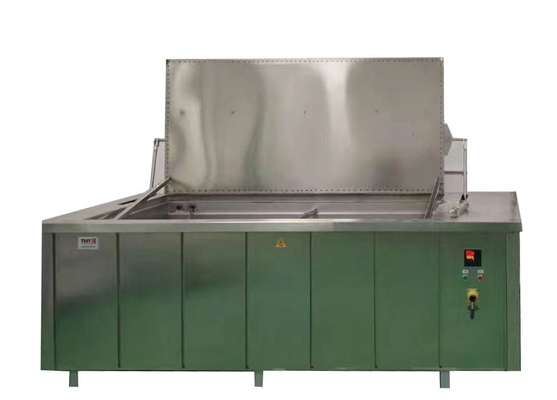

Water tank size accoard to the pipe size
Temperature range 15-95℃
Dimensions (three stations)

715×625×1700(mm)or others

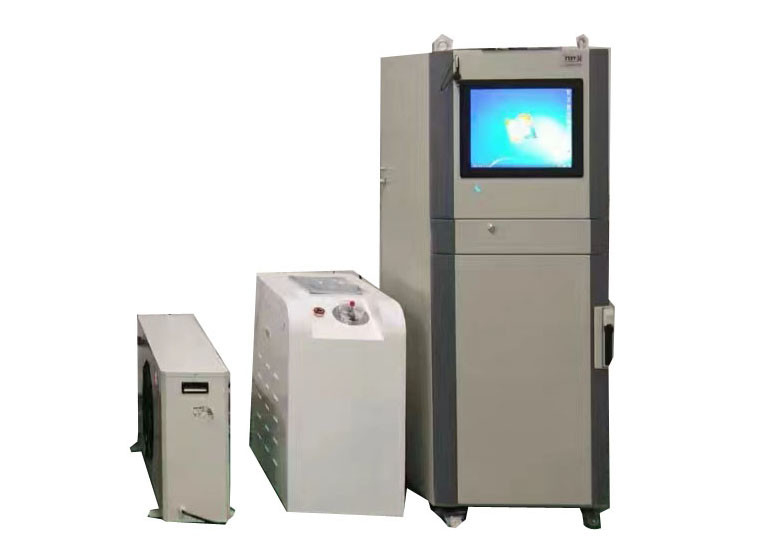

0-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1% 00-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1% 1

Support and Services:

Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service

We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:

  • Machine installation and setup
  • Troubleshooting and technical advice
  • Repair and maintenance services
  • Spare parts and consumables
  • Software updates and upgrades

We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.



FAQ:

Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
Q5: What is the maximum pressure that the Hydrostatic Pressure Testing Machine can test?
A5: The Hydrostatic Pressure Testing Machine can test pressures up to 10Mpa, 100 bar (14,50 psi).0-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1% 20-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1% 30-16MPA Hydrostatic Pressure Bursting Testing Machine for Precise Control Accuracy ±1% 4
