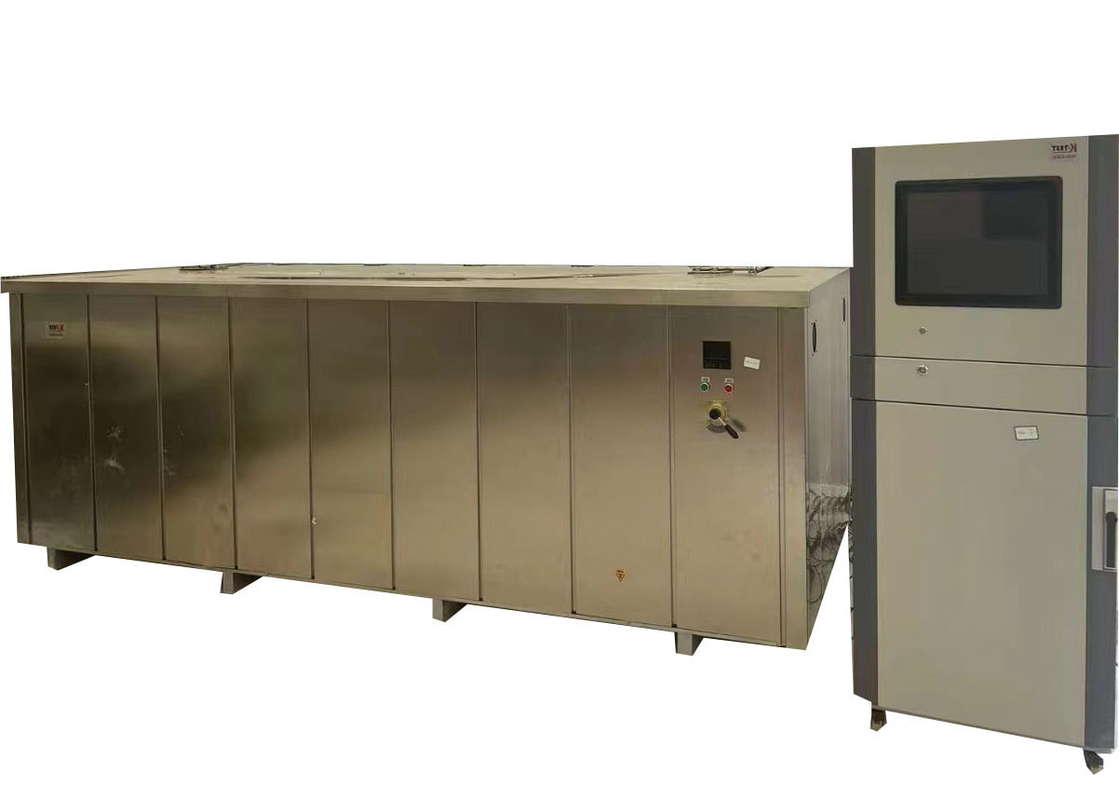

EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate

EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate
EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate
video play

Large Image :  EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XGY-20C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: EN921 Standards Hydrostatic Pressure Testing Machine With Micro-control And ISO Certificate Testing Range: 0-16MPA
Accuracy: -1%~+2% Test Temperature Range: 15~95℃
End Caps: Φ​8-1800mm Display: LCD
Test Curve: Pressure-time And Pressure-temperature Safety Protection: Over Pressure/Over Temperature
Test Mode: Automatic Test Medium: Water
Customized Support: OEM Certificate: CE, ISO
High Light:

ISO Certificate Hydrostatic Pressure Testing Machine

,

Micro-control Hydrostatic Pressure Testing Machine

,

EN921 Standards Hydrostatic Pressure Testing Machine

EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate

Applications:

With its high-quality construction and reliable performance, the JINHAIHU XGY Hydrostatic Pressure Testing Machine is the perfect solution for any business or organization that needs to test the strength and durability of plastic pipes. This machine is certified to meet ISO9001 standards and is manufactured in BEIJING, CHINA.

The JINHAIHU XGY Hydrostatic Pressure Testing Machine has a test pressure range of 0.2-16MPa, making it suitable for a wide range of applications. It is also certified to meet ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, and ISO13479 standards, ensuring that it meets the highest quality and safety standards.

The JINHAIHU XGY Hydrostatic Pressure Testing Machine features an LCD display that makes it easy to read and monitor test results. It also comes with a CE and ISO certificate, guaranteeing its quality and safety.





Product Description:

The testing machine has a test pressure range of 0.2-16MPa and a test temperature range of 15-95℃, making it suitable for conducting accurate and reliable hydrostatic pressure tests on plastic pipes of different sizes and materials. The machine also has a temperature control system that ensures precise temperature control during the test, ensuring that the test results are accurate and consistent.

The 16MPA PVC Plastic Pipe Hydrostatic Pressure Testing Machine ASTM D1598 is easy to operate, and the test process is simple and efficient. The machine has an intuitive interface and a user-friendly control system that allows the operator to set up and conduct tests easily. The testing machine is also equipped with safety features that ensure that the test is conducted safely and securely.

The machine is ideal for testing PVC plastic pipes, including PPR, PB, and PERT pipes. These pipes are widely used in plumbing, heating, and other industrial applications and are known for their durability and reliability. The hydrostatic pressure testing machine for PPR PB PERT is essential for ensuring the quality and safety of these pipes, and the 16MPA PVC Plastic Pipe Hydrostatic Pressure Testing Machine ASTM D1598 is the perfect tool for the job.

In conclusion, the 16MPA PVC Plastic Pipe Hydrostatic Pressure Testing Machine ASTM D1598 is a high-quality testing equipment that is designed for testing thermoplastic pipes, including PPR, PB, and PERT pipes. The machine meets various international standards and has a test pressure range of 0.2-16MPa and a test temperature range of 15-95℃. It is easy to operate, safe, and reliable, making it the perfect tool for testing PVC plastic pipes.





Meet Standards:

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.

Technical Parameters:

Model XGY-16C
Diameter range Φ8-1800mm
Stations 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized
Control mode Micro-control, industrial PC control
Display mode Industrial PC LCD color display
Storage mode PC strorage
Print mode Color printer output
Test pressure Pressure range 0.1-16MPa
Control accuracy ±1%
Display resolution 0.01MPa
Working range 5%~100%FS
Indication error ±1%
Test Timer Timer range 0~10000h
Timer accuracy ±0.1%
Timer resolution 1s
Power 380V 50Hz three-phase four-wire 1.5KW

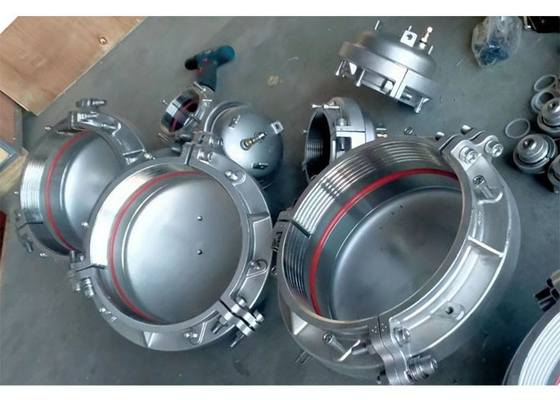

end caps models from Φ​16 to 630mm
Water tank size accoard to the pipe size
Temperature range 15-95℃
Dimensions (three stations)

715×625×1700(mm)or others

EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate 0EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate 1

Support and Services:

Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service

We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:

  • Machine installation and setup
  • Troubleshooting and technical advice
  • Repair and maintenance services
  • Spare parts and consumables
  • Software updates and upgrades

We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.



FAQ:

Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
Q5: What is the maximum pressure that the Hydrostatic Pressure Testing Machine can test?
A5: The Hydrostatic Pressure Testing Machine can test pressures up to 10Mpa, 100 bar (14,50 psi).EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate 2EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate 3EN921 Standards Hydrostatic Pressure Testing Machine with Micro-control and ISO Certificate 4
