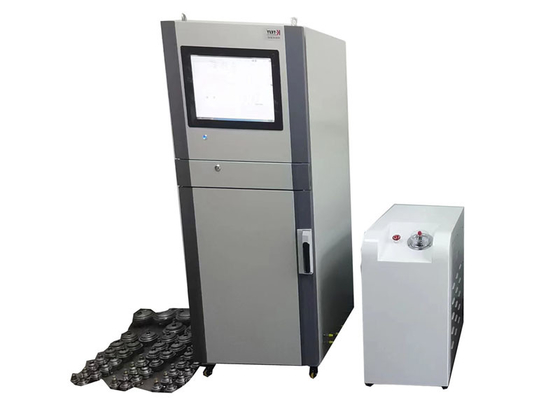

Hydrostatic Pressure Testing Machine for ppr pp pe pvc pb pert pipe Temperature range 15-95℃
Applications:
Manufacturing plants for plastic pipes
Quality control labs for plastic pipe products
Research and development centers
Construction sites for plastic pipe installation
This machine is specifically designed for plastic pipes, and is ideal for use with PPR, PE, PVC, PB and PERT pipes. It can test pipes with a diameter range of Φ10-1600mm, making it a versatile tool for a variety of applications.
Product Description:
This hydrostatic pressure and bursting testing machine is suitable for testing various types of pipes and fittings, including PP, PE, PVC, PPR, PB, and PERT. This machine is designed to withstand high pressure and temperature, making it ideal for testing pipes and fittings that are used in high-pressure and high-temperature applications.
The Hydrostatic Pressure Testing Machine is easy to use and maintain. The machine is equipped with user-friendly controls that are easy to operate, and the machine requires minimal maintenance, ensuring that it is always ready for use. The machine is also designed for safety, with features such as automatic shut-off and emergency stop buttons to ensure the safety of the operator.
The Hydrostatic Pressure Testing Machine is equipped with advanced technology that allows for pressure-time and pressure-temperature test curves. This feature ensures that the test results are accurate and reliable, providing accurate data for analysis and decision-making. The machine is designed to meet international standards such as ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, and ISO13479.
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters:
| Model |
XGY-10C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-10MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| end caps models |
from Φ16 to 630mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service
We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:
- Machine installation and setup
- Troubleshooting and technical advice
- Repair and maintenance services
- Spare parts and consumables
- Software updates and upgrades
We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.
FAQ:
Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
