High Precision Hydrostatic Pressure Testing Machine ±1% Control Accuracy LCD Display

High Precision Hydrostatic Pressure Testing Machine ±1% Control Accuracy LCD Display
High Precision Hydrostatic Pressure Testing Machine ±1% Control Accuracy LCD Display
video play

Large Image :  High Precision Hydrostatic Pressure Testing Machine ±1% Control Accuracy LCD Display

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XGY-20C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: High Precision Hydrostatic Pressure Testing Machine ±1% Control Accuracy LCD Display Testing Range: 0-20MPA
Accuracy: -1%~+2% Test Temperature Range: 15~95℃
End Caps: Φ​8-1800mm Display: LCD
Test Curve: Pressure-time And Pressure-temperature Safety Protection: Over Pressure/Over Temperature
Test Mode: Automatic Test Medium: Water
Customized Support: OEM Certificate: CE, ISO
Highlight:

LCD Display Hydrostatic Pressure Testing Machine

,

High Precision Hydrostatic Pressure Testing Machine

,

High Accuracy Hydrostatic Pressure Testing Machine

High Precision Hydrostatic Pressure Testing Machine ±1% Control Accuracy LCD Display

Applications:

The JINHAIHU Hydrostatic Pressure Testing Machine (Model Number: XGY) is a reliable and efficient device used to test the hydrostatic and bursting strength of plastic pipes and composite pipes like PP-R, PP-B, PP-A, PVC, PE, PE-X, etc. This Hydrostatic Pressure Testing Device is an essential tool for manufacturers, Quality Inspection Center, science Institute, distributors, and construction companies that deal with plastic pipes.

The Building pipe Hydrostatic Pressure Tester has a maximum pressure testing capacity of 10Mpa, 100 bar (14,50 psi). It is accurate to within 0.1% of the full-scale reading, making it a dependable machine for testing the strength of plastic pipes. The Hydrostatic Pressure Inspection Machine is made in Beijing, China, and is certified with ISO9001, ensuring high-quality standards.

Product Description:

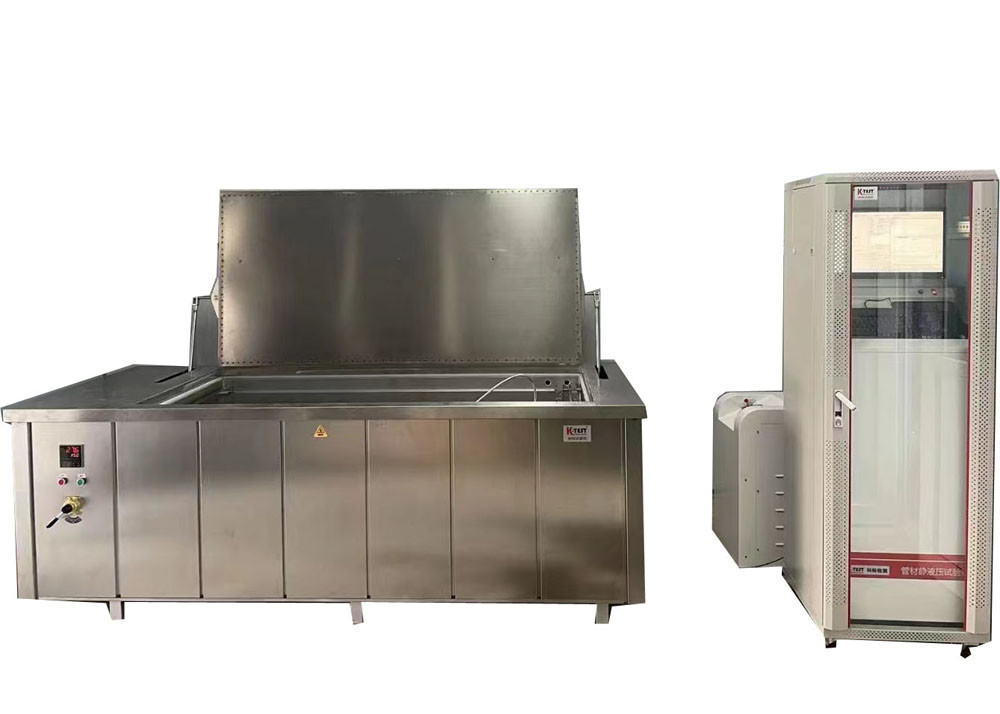

The Hydrostatic Pressure Testing Machine comes with a water tank that is sized according to the pipe being tested. This ensures accurate and precise testing of the pipes. The machine has a temperature range of 10-95℃, which is perfect for testing pipes that are designed to withstand extreme temperatures.

The Hydrostatic Pressure Testing Machine comes with two test curves: pressure-time and pressure-temperature. These curves help to provide accurate and reliable test results, ensuring that the pipes being tested meet the required standards. Speaking of standards, the Hydrostatic Pressure Testing Machine meets several international standards, including ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, and ASTMF1335.

Whether you are a small business or a large corporation, the Hydrostatic Pressure Testing Machine is an essential tool for any company involved in the production of building pipes. With its accurate testing, reliable results, and adherence to international standards, you can be sure that your pipes are of the highest quality and meet all required standards.

Invest in the Hydrostatic Pressure Testing Machine today and take your pipe production to the next level.

Features:

Product Name: Hydrostatic Pressure & BurstingTesting Machine

Test Temperature Range: 10~95℃
Testing Range: 0-200Bar, 0-20MPA
Customized Support: OEM
End Caps: Φ​8-1800mm
Accuracy: -1%~+2%

Also known as: Hydraulic Pressure Strength Tester, Hydraulic Pressure Strength Tester, Aquatic Pressure Inspection Machine



Meet Standards:

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.

Technical Parameters:

Model XGY-20C
Diameter range Φ8-1800mm
Stations 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized
Control mode Micro-control, industrial PC control
Display mode Industrial PC LCD color display
Storage mode PC strorage
Print mode Color printer output
Test pressure Pressure range 0.1-20MPa
Control accuracy ±1%
Display resolution 0.01MPa
Working range 5%~100%FS
Indication error ±1%
Test Timer Timer range 0~10000h
Timer accuracy ±0.1%
Timer resolution 1s
Power 380V 50Hz three-phase four-wire 1.5KW

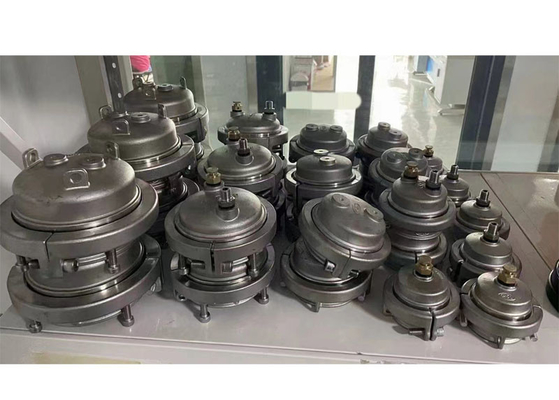

end caps models from Φ​16 to 630mm
Water tank size accoard to the pipe size
Temperature range 15-95℃
Dimensions (three stations)

715×625×1700(mm)or others

Support and Services:

Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service

We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:

  • Machine installation and setup
  • Troubleshooting and technical advice
  • Repair and maintenance services
  • Spare parts and consumables
  • Software updates and upgrades

We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.



FAQ:

Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
Q5: What is the maximum pressure that the Hydrostatic Pressure Testing Machine can test?
A5: The Hydrostatic Pressure Testing Machine can test pressures up to 10Mpa, 100 bar (14,50 psi).High Precision Hydrostatic Pressure Testing Machine ±1% Control Accuracy LCD Display 0High Precision Hydrostatic Pressure Testing Machine ±1% Control Accuracy LCD Display 1High Precision Hydrostatic Pressure Testing Machine ±1% Control Accuracy LCD Display 2
