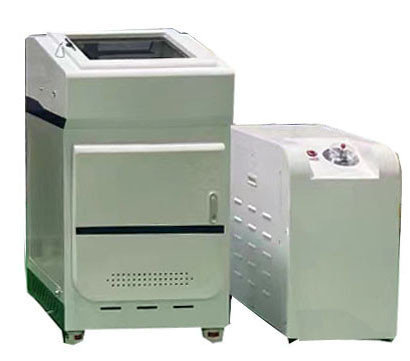

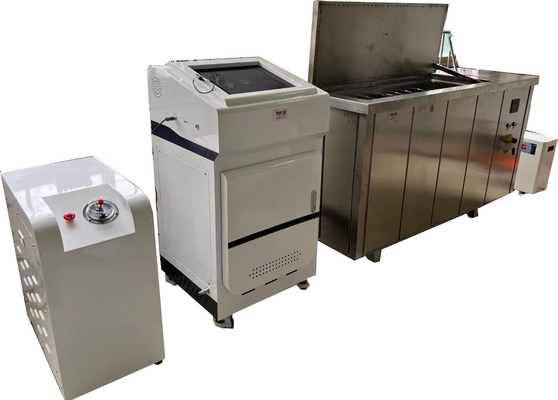

0-16MPA CE Certified Hydrostatic Pressure Check Machine Inputting Parameters Like Ring Stress

0-16MPA CE Certified Hydrostatic Pressure Check Machine Inputting Parameters Like Ring Stress
0-16MPA CE Certified Hydrostatic Pressure Check Machine Inputting Parameters Like Ring Stress
video play

Large Image :  0-16MPA CE Certified Hydrostatic Pressure Check Machine Inputting Parameters Like Ring Stress

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XGY-16C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: CE Certified Hydrostatic Pressure Check Machine Inputting Parameters Like Ring Stress Testing Range: 0-16MPA
Accuracy: -1%~+2% Test Temperature Range: 15~95℃
End Caps: Φ​16-630mm Display: LCD
Test Curve: Pressure-time And Pressure-temperature Safety Protection: Over Pressure/Over Temperature
Test Mode: Automatic Test Medium: Water
Customized Support: OEM Certificate: CE, ISO
High Light:

Ring Stress Hydrostatic Pressure Check Machine

,

CE Hydrostatic Pressure Check Machine

,

0-16MPA Hydrostatic Pressure Check Machine

CE Certified Hydrostatic Pressure Check Machine Inputting Parameters like Ring Stress

Applications:

The Hydrostatic Pressure Testing Machine is a specialized tool used in testing the pressure resistance of pipes, containers, valves, and other pressure-bearing equipment. This machine is designed to evaluate the strength of materials and components by subjecting them to high-pressure testing. The Hydrostatic Pressure Tester is widely used in industries such as petroleum, chemical engineering, natural gas, and other fields that require high-pressure testing.

The JINHAIHU XGY Hydrostatic Pressure Testing Machine operates on a principle where parameters such as ring stress, wall thickness, and average outer diameter of the pipe are entered into a PC. The system will automatically calculate the test pressure, and the data will be transmitted to the lower computer (MCU embedded system) through the RS232 serial port. The control mode for this machine is Micro-control or Industrial PC control.

The Hydrostatic Pressure Check Machine produces two types of test curves, namely Pressure-time and Pressure-temperature curves. These curves help to monitor the test process and give accurate results. This machine also supports OEM customization to meet various industry needs.



Product Description:

This Hydrostatic Pressure Testing Machine is equipped with the latest technology and features an automatic test mode, which ensures consistent and repeatable results every time. The machine is designed to provide accurate and reliable results, making it an ideal choice for a wide range of applications across various industries.

The Hydrostatic Pressure Testing Machine is certified by CE and ISO, ensuring that it meets the highest standards of quality and safety. This certification is a testament to the machine's reliability and performance, making it a trusted solution for all your hydrostatic pressure testing needs.

One of the key features of this Hydrostatic Pressure Check Machine is its ability to perform tests at a range of temperatures. The machine has a test temperature range of 10~95℃, making it suitable for use in a wide range of conditions. This ensures that the machine can provide accurate and reliable results regardless of the environment or conditions in which it is used.

Another important feature of this Hydrostatic Pressure Testing Machine is its ability to support OEM customization. This means that the machine can be customized to meet the specific needs and requirements of each user, making it a versatile and flexible solution for any hydrostatic pressure testing application.

Features:

1. Product Name: Hydrostatic Pressure Testing Machine
2. Principle: Input the parameters such as ring stress, wall thickness and average outer diameter of the pipe on the PC, the system will automatically calculate the test pressure, and the data will be transmitted to the lower computer (MCU embedded system) through the RS232 serial port.
3. Customized Support: OEM
4. Model: XGY-16C
5. Temperature range: 15-95℃



Meet Standards:

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.

Technical Parameters:

Model XGY-16C
Diameter range Φ16-630mm
Stations 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized
Control mode Micro-control, industrial PC control
Display mode Industrial PC LCD color display
Storage mode PC strorage
Print mode Color printer output
Test pressure Pressure range 0.1-16MPa
Control accuracy ±1%
Display resolution 0.01MPa
Working range 5%~100%FS
Indication error ±1%
Test Timer Timer range 0~10000h
Timer accuracy ±0.1%
Timer resolution 1s
Power 380V 50Hz three-phase four-wire 1.5KW
end caps models from Φ​16 to 630mm
Water tank size accoard to the pipe size
Temperature range 15-95℃
Dimensions (three stations)

715×625×1700(mm)or others

Support and Services:

Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service

We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:

  • Machine installation and setup
  • Troubleshooting and technical advice
  • Repair and maintenance services
  • Spare parts and consumables
  • Software updates and upgrades

We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.



FAQ:

Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
Q5: What is the maximum pressure that the Hydrostatic Pressure Testing Machine can test?
A5: The Hydrostatic Pressure Testing Machine can test pressures up to 10Mpa, 100 bar (14,50 psi).0-16MPA CE Certified Hydrostatic Pressure Check Machine Inputting Parameters Like Ring Stress 00-16MPA CE Certified Hydrostatic Pressure Check Machine Inputting Parameters Like Ring Stress 10-16MPA CE Certified Hydrostatic Pressure Check Machine Inputting Parameters Like Ring Stress 2
