Hydrostatic Pressure Testing Machine Principle 0-200Bar Testing Range GB/T 6111 Standards
Applications:

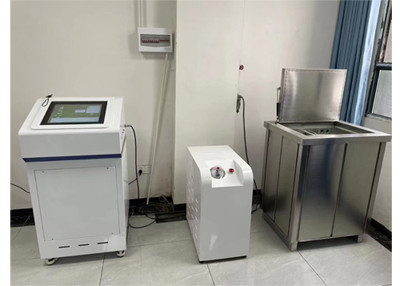

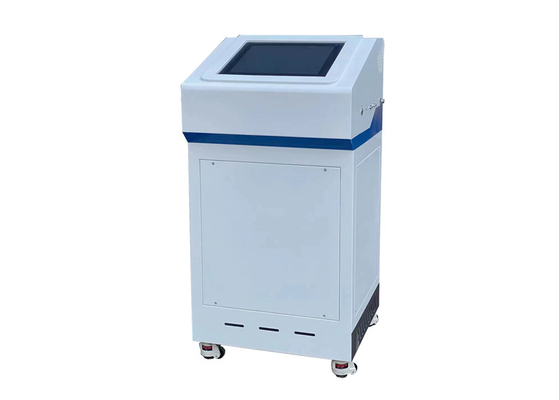

Hydrostatic Pressure & Bursting Testing Machine is used to do instant bursting test and long time pressure test on plastic pipes for fluid transport, like to measure the damage time of thermoplastic pipe under a constant pressure. This instrument is composed of a main frame of pressure control, a constant temperature tank and end caps. For this product is of high precision, good looks, simple structure, good stability and convenient operation, it becomes a necessary testing equipment for research institutes, quality inspection departments and pipe manufacturers.
Product Description:
Our Hydrostatic Pressure Testing Machine works on the principle of inputting parameters such as ring stress, wall thickness, and the average outer diameter of the pipe on the PC, which then automatically calculates the test pressure. The data is then transmitted to the lower computer (MCU embedded system) through the RS232 serial port. This allows for a precise and accurate pressure test, ensuring reliable and consistent results every time.
The Hydrostatic Pressure Testing Machine is equipped with a pressure-time and pressure-temperature test curve, which makes it easy to monitor the test results in real-time. This hydrostatic pressure tester has a pressure range of 160Bar or 16MPa, which makes it suitable for a wide range of applications. Additionally, the test temperature range of 10~95℃ makes it possible to test products that are intended for use in extreme temperatures.
This Hydrostatic Pressure Testing Machine is classified under the product category of Hydrostatic Pressure Testing Machine. It is an essential tool for any industry that requires reliable and accurate pressure testing, including but not limited to plumbing, oil and gas, chemical processing, and manufacturing. With its easy-to-use interface and precise calculations, the Hydrostatic Pressure Testing Machine is a must-have for any business that wants to ensure the quality and safety of their products.
Features:
1. Product Name: Hydrostatic Pressure Testing Machine
2. Principle: Input the parameters such as ring stress, wall thickness and average outer diameter of the pipe on the PC, the system will automatically calculate the test pressure, and the data will be transmitted to the lower computer (MCU embedded system) through the RS232 serial port.
3. Customized Support: OEM
4. Model: XGY-16C
5. Temperature range: 15-95℃
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters:
| Model |
XGY-16C |
| Diameter range |
Φ16-630mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| end caps models |
from Φ16 to 630mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service
We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:
- Machine installation and setup
- Troubleshooting and technical advice
- Repair and maintenance services
- Spare parts and consumables
- Software updates and upgrades
We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.
FAQ:
Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
