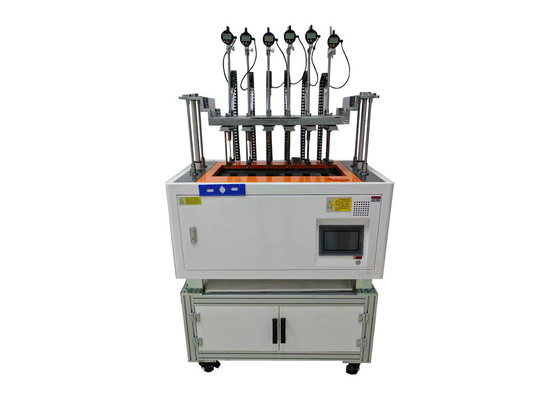

XRW-300F Standard Test Method for Vicat Softening Temperature and Heating Defortion Temperation of Plastics

Equipment introduction​:

Standard Test Method for Vicat Softening Temperature and Heating Defortion Temperation of Plastics is designed to fit the rapid development of plastic industry and improve the level of material research and test. They adopt the newest international and national standards: ISO 75-1-1993 Plastics; determination of temperature of deflection under load, ISO306:1994 Plastics - Thermoplastic materials - Determination of Vicat softening temperature (VST), GB/T1633—2000 Thermoplastic materials - Determination of Vicat softening temperature (VST), and GB/T1634—2001 Plastics; determination of temperature of deflection under load. Controlled by computer, they are of stable performance, easy operation and high automation degree, which makes them the most advanced test instruments to measure deflection and Vicat softening temperature of non-metallic materials.

Test method:
A flat-ended needle loaded with a specified mass is placed in direct contact with a test specimen.

The mass applied can be one of two accepted loads, as follows:
Loading 1—10 ± 0.2 N
Loading 2—50 ± 1.0 N
The specimen and needle are heated at either of two permis-sible rates, as follows:
Rate A—50 ± 5°C/h
Rate B—120 ± 10°C/h
The temperature at which the needle has penetrated to a depth of 1 6 0.01 mm is recorded as the Vicat softening temperature.


Test Standards:
ISO75-1 Plastic-Load Deformation Temperature

ISO306 Determination of Temperature of Plastic-Thermoplastics

GB / T1633-2000 Determination of Temperature of VICAT

GB / T1634-2001 Plastic-Load Deformation Temperature

GB / T8802 Determination of Softening Temperature of Thermoplastic Pipe and Pipe

ASTM D 1525-1991 Test method for plastic ka softening temperature

ASTM D648-06 Test method for the deflection temperature of plastic under deflection load

Technical Parameter:


Support and Services:

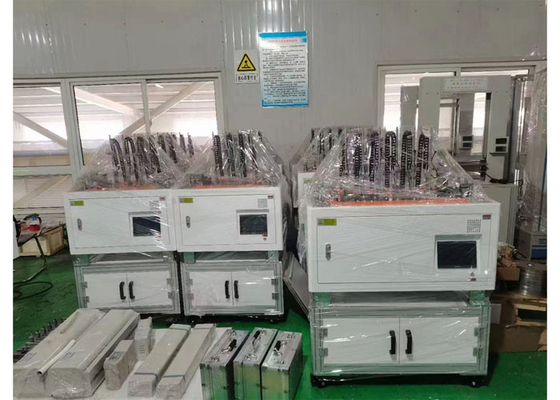

The HDT VICAT Testing Machine is packed in a wooden box to ensure that it is safe and secure during transport. The wooden box is lined with bubble wrap and foam to protect the machine from any external damage. The machine is then sealed with a plastic wrap to protect it from moisture. The box is then labeled with the exact contents of the package so that it can be easily identified. The machine is then shipped using a reliable carrier such as UPS or FedEx.

FAQ:

Q: What is HDT VICAT Testing Machine?

A: HDT VICAT Testing Machine, is a product manufactured by JHH, Model XRW-300, which originated in Beijing, China. It is used to measure the Vicat softening temperature of thermosetting plastics.

Q: What advantages does HDT VICAT Testing Machine have?

A: HDT VICAT Testing Machine provides accurate measurements and is easy to operate. It also features an intuitive interface and requires minimal maintenance.

Q: What are the technical parameters of HDT VICAT Testing Machine?

A: HDT VICAT Testing Machine is controlled by a microcomputer with a temperature control accuracy of ± 0.5 °C. It has a temperature range of ambient to 300 °C and a heating speed of 120°C /h or 50°C /h.

Q: What type of materials can be tested with HDT VICAT Testing Machine?

A: HDT VICAT Testing Machine can be used to test thermosetting plastics such as polyester, epoxy, unsaturated polyester, phenolic, and polyurethane.

Q: What is the warranty period for HDT VICAT Testing Machine?

A: JHH provides a 12-month warranty period for HDT VICAT Testing Machine.
