| Product Name: | Thermal Deformation/VICa Softening Point Temperature Tester Adopt HMI+PLC Control System | Mainframe Type: | Table Type |
|---|---|---|---|
| Heating Rate: | 120℃/h 、 50℃/h | Maximum Temperature Error: | ±0.5℃ |
| Deformation Measurement Range: | -1.00～10.00mm | Span Of Sample Supports: | 64mm, 100mm |
| Maximum Deformation Measurement Error: | 0.01mm | Current Source: | 3000VA 220VAC 50HZ |
| High Light: | HMI PLC point temperature tester,HMI PLC hdt vicat testing machine,HMI PLC vicat testing machine |
||
Overview:

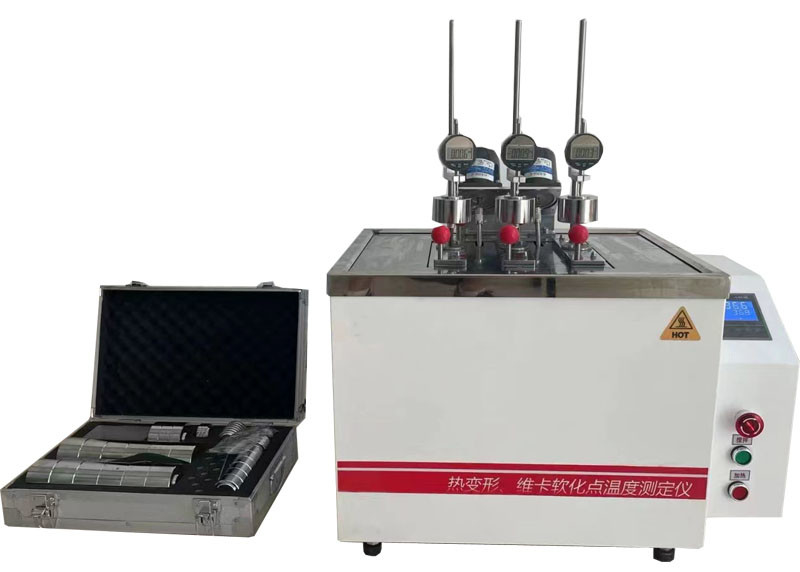

Thermal deformation/VICa softening point temperature tester adopt HMI+PLC control system used for non-metallic materials such as plastic, rubber, nylon, electrical insulation materials, such as thermal deformation temperature and Vica softening point temperature measurement. Products comply with IS075(E), IS0306(E), GB/T8802, GB/ T1633, GB/ T1634 and other standards.
Product Introduction:
The thermal deformation/VICa softening point temperature tester adopts HMI+PLC as the core control system, which avoids the problem of data fluctuation caused by electromagnetic interference and provides a physical guarantee for improving the test accuracy. Equipped with voice prompt function, even novice, can quickly grasp, the software interface is simple and clear, easy to learn and use.
The thermal deformation/Vica softening point temperature tester is designed with new and national standards to determine the thermal softening properties of plastic raw materials or finished products. By replacing the indenter, the instrument can determine the thermal deformation temperature and Vica temperature, using transformer oil (within 200 ° C) or methyl silicone oil (within 300 ° C) as the thermal conductivity medium, mechanical stirrers for oil circulation in the box, large capacity tank design, stable temperature control, uniform temperature field.
Test Standards:
GB/T1633, GB/T1634, ISO75, ISO306,ASTM D648, ASTM D1525,ISO 2507
Technical Parameter:
| Temperature control range | Room temperature ～300℃ |
| Heating rate | (120±10)℃/h , (50±5)℃/h |
| Maximum temperature error | ±0.5℃ |
| Temperature measurement point | 1 |
| Test station | 3 |
| Formal measurement measuring tool | Digital display dialgauge |
| Deformation measurement range | -1.00～10.00mm |
| Span of sample supports | 64mm,100mm |
| Maximum deformation measurement error | 0.01mm |
| Thermal expansion coefficient of specimen holder | <0.005mm/100℃ |
| heating medium | Methylsilicone oil, transformer oil |
| Cooling method | Natural cooling above 150℃, water cooling or natural cooling of 150℃ below |
| Upper limit temperature protection | Stop the heating automatically when the test temperature reaches the upper limit temperature. |
| Current source | 3KW, 220VAC, 50HZ |
Support and Services:
HDT VICAT Testing Machine provides a wide range of technical support and services to ensure peak performance and maximum uptime. We offer on-site installation services, operator training, preventive maintenance, and troubleshooting assistance.
Installation and SetupOur experienced technicians will install and setup the HDT VICAT Testing Machine at your site and provide operator training.
Preventive MaintenanceWe offer scheduled preventive maintenance services to ensure the optimal performance of the HDT VICAT Testing Machine.
Troubleshooting AssistanceWe provide troubleshooting assistance to help you identify and resolve any issues with the HDT VICAT Testing Machine.
Packing and Shipping:
The HDT VICAT Testing Machine is packed in a wooden box to ensure that it is safe and secure during transport. The wooden box is lined with bubble wrap and foam to protect the machine from any external damage. The machine is then sealed with a plastic wrap to protect it from moisture. The box is then labeled with the exact contents of the package so that it can be easily identified. The machine is then shipped using a reliable carrier such as UPS or FedEx.
