Non Metallic Materials Hdt Vicat Testing Machine With Easy Operation And Accurate Results

Non Metallic Materials Hdt Vicat Testing Machine With Easy Operation And Accurate Results
Non Metallic Materials Hdt Vicat Testing Machine With Easy Operation And Accurate Results
video play

Large Image :  Non Metallic Materials Hdt Vicat Testing Machine With Easy Operation And Accurate Results

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XRW-300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15 sets per month
Detailed Product Description
Product Name: HDT VICAT Testing Machine For Non-Metallic Materials With Easy Operation And Accurate Results Test Stations: 3
Heating Rate: 120℃/h ±10℃/h , 50℃/h ±5℃/h Maximum Temperature Error: ±0.5℃
Deformation Measurement Range: -1.00~10.00mm Span Of Sample Supports: 100mm, 64mm
Maximum Deformation Measurement Error: 0.001mm Current Source: 4.5KW, 220VAC, 50HZ
High Light:

Accurate Results HDT VICAT Testing Machine

,

Easy Operation HDT VICAT Testing Machine

,

Non Metallic hdt vicat testing machine

HDT VICAT Testing Machine for Non-Metallic Materials with Easy Operation and Accurate Results



Equipment introduction​:

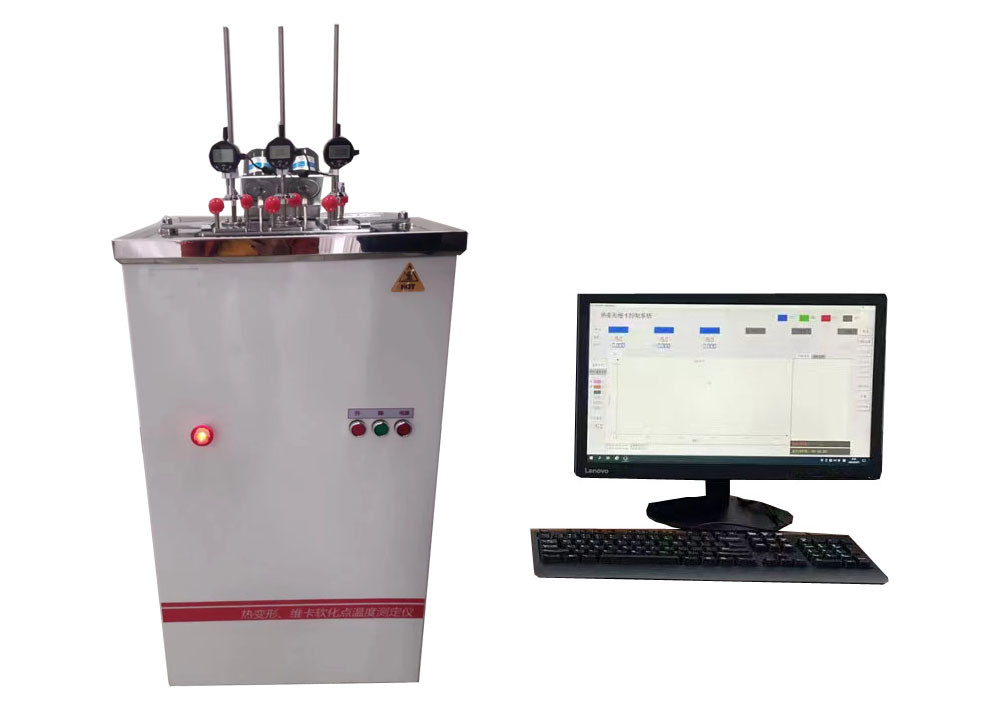

HDT VICAT Testing Machine for Non-Metallic Materials with Easy Operation and Accurate Results uses computer programmable controller for temperature adjustment and computer display operation. It is mainly used to test the heat distortion temperature and Vicat softening point temperature of non-metallic materials such as plastics, rubber, nylon, electrical insulating materials, etc.

Meets Standards:

ISO75-2013 Determination of plastic load deformation temperature

ASTM D 648 Plastic thermal deformation temperature test method

ASTM D 1525 Plastic Vicat (VICAT) softening temperature test method

GB/T 1633 Thermoplastics - Determination of Vicat softening temperature (VST)

GB/T 1634 Determination of plastic load deformation temperature Part I: General test method

GB/T 8802 Determination of softening temperature of plastic pipe fittings


Technical Parameters:

Temperature control range Room temperature ~300℃
Heating rate 120℃/h ±10℃/h , 50℃/h ±5℃/h
Maximum temperature error ±0.5℃
Temperature measurement point 1
Test stations 3 stations
Loading (10±0.2)N, (50±1.0)N
Test frame lifting mode Automatic rising-lowering
Formal measurement measuring tool Digital display dial gauge
Deformation measurement range -1.00~10.00mm
Span of sample support 64mm, 100mm
Maximum deformation measurement error 0.001mm
Thermal expansion coefficient of specimen holder <0.005mm/100℃
Heating medium Silicone oils, glycerine, ethylene glycol
Cooling method >150℃ Natural cooling, ≤150℃ water cooling or natural cooling
Temperature protection

When the test temperature reaches the upper limit, heating can be automatically stopped

Equipment size

840mm×570mm×1360mm

Current source 4.5KW,  220VAC, 50HZ


Support and Services:

HDT VICAT Testing Machine Technical Support & Services

HDT VICAT Testing Machine provides a wide range of technical support and services to ensure peak performance and maximum uptime. We offer on-site installation services, operator training, preventive maintenance, and troubleshooting assistance.

Installation and Setup

Our experienced technicians will install and setup the HDT VICAT Testing Machine at your site and provide operator training.

Preventive Maintenance

We offer scheduled preventive maintenance services to ensure the optimal performance of the HDT VICAT Testing Machine.

Troubleshooting Assistance

We provide troubleshooting assistance to help you identify and resolve any issues with the HDT VICAT Testing Machine.

Packing and Shipping:

The HDT VICAT Testing Machine is packed in a wooden box to ensure that it is safe and secure during transport. The wooden box is lined with bubble wrap and foam to protect the machine from any external damage. The machine is then sealed with a plastic wrap to protect it from moisture. The box is then labeled with the exact contents of the package so that it can be easily identified. The machine is then shipped using a reliable carrier such as UPS or FedEx.



FAQ:

Q: What is HDT VICAT Testing Machine?
A: HDT VICAT Testing Machine, is a product manufactured by JHH, Model XRW-300, which originated in Beijing, China. It is used to measure the Vicat softening temperature of thermosetting plastics.
Q: What advantages does HDT VICAT Testing Machine have?
A: HDT VICAT Testing Machine provides accurate measurements and is easy to operate. It also features an intuitive interface and requires minimal maintenance.
Q: What are the technical parameters of HDT VICAT Testing Machine?
A: HDT VICAT Testing Machine is controlled by a microcomputer with a temperature control accuracy of ± 0.5 °C. It has a temperature range of ambient to 300 °C and a heating speed of 120°C /h or 50°C /h.
Q: What type of materials can be tested with HDT VICAT Testing Machine?
A: HDT VICAT Testing Machine can be used to test thermosetting plastics such as polyester, epoxy, unsaturated polyester, phenolic, and polyurethane.
Q: What is the warranty period for HDT VICAT Testing Machine?
A: JHH provides a 12-month warranty period for HDT VICAT Testing Machine.

Non Metallic Materials Hdt Vicat Testing Machine With Easy Operation And Accurate Results 0Non Metallic Materials Hdt Vicat Testing Machine With Easy Operation And Accurate Results 1Non Metallic Materials Hdt Vicat Testing Machine With Easy Operation And Accurate Results 2
