Plastic Pipes Deflectometer ISO 4422 ISO 3127 ASTM D2444

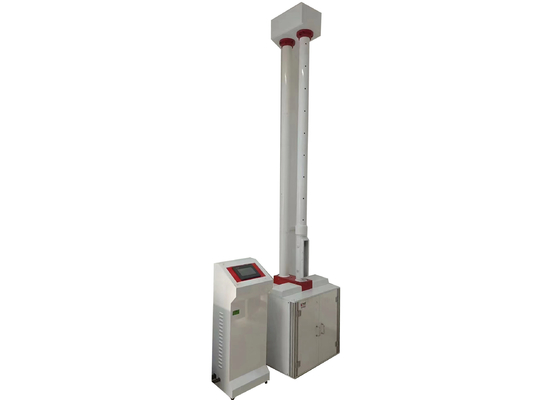

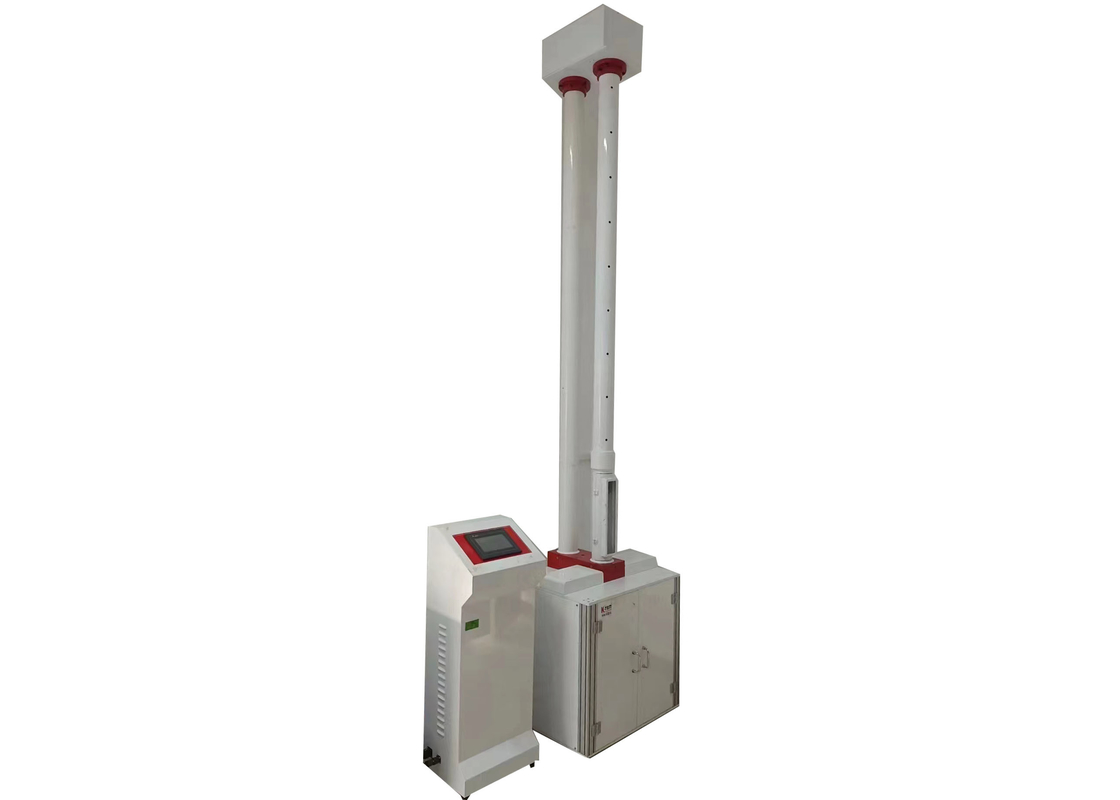

Large Image : Plastic Pipes Deflectometer ISO 4422 ISO 3127 ASTM D2444

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	ISO 4422 ISO 3127 ASTM D2444 Falling Weight Deflectometer Impact Tester For Plastic Pipes	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
High Light:	Plastic Pipes deflectometer , ASTM D2444 deflectometer , Plastic Pipes falling dart impact tester

ISO 4422 ISO 3127 ASTM D2444 Falling Weight deflectometer Impact Tester for Plastic Pipes

Product Description:

ISO 4422 ISO 3127 ASTM D2444 Falling Weight deflectometer Impact Tester for Plastic Pipes is used to determine the resistance to external blows of thermoplastics pipes of circular cross-section. Test pieces are subject to blow from a falling striker, of specified mass and shape, dropped from a known height onto specified position around the circumference of the test piece. The true impact rate of the batch, or production run from an extruder, is estimated.

Product Structure:

1. Anti rebound device function, with a capture rate of 100%. Imported AC servo system with high positioning accuracy and fast rising speed.

2. The impact height can be set by the user or automatically calibrated.

3. This instrument is equipped with an automatic personal protection device, including a sample door, shock-absorbing, shock-absorbing window, etc.

4. Automatic calibration of lifting height, with calibration accuracy within ± 2mm;

5. Combination impact hammer structure, the weight of the impact hammer can be adjusted according to the weight.

6. The pneumatic anti secondary impact capture device can adjust the working air pressure as needed to improve the reliability of the capture device.

7. The sample is supported by twin screws, which have good stability and rigidity

Meeting standards:

ISO3127, ISO4422, BS EN744, BS EN1411, ASTM D2444, etc.

Technical parameter:

Model	XJL-300D
Ambient temperature	10℃-35℃
Drop hammer quality	0.5kg-16kg
Hammer diameter	D25mm,D90mm, etc
Height of the fall	10mm-2000mm,error≤±2mm
Diameter of the sample	Φ16mm-Φ630mm
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
source	220VAC±10%
Outline dimension	715mm×700mm×3900mm
Net weight	380kg

Support and Services:

We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.

We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.

For more information, please contact us at your convenience.

Packing and Shipping:

The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.

The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.

FAQ:

Q: What is Drop Hammer Test Equipment?: A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
Q: What is the purpose of Drop Hammer Test Equipment?: A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
Q: What products can Drop Hammer Test Equipment be used for?: A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
Q: What is the accuracy of Drop Hammer Test Equipment?: A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
Q: What is the maximum testing force of Drop Hammer Test Equipment?: A: The maximum testing energy of Drop Hammer Test Equipment is 300J.
