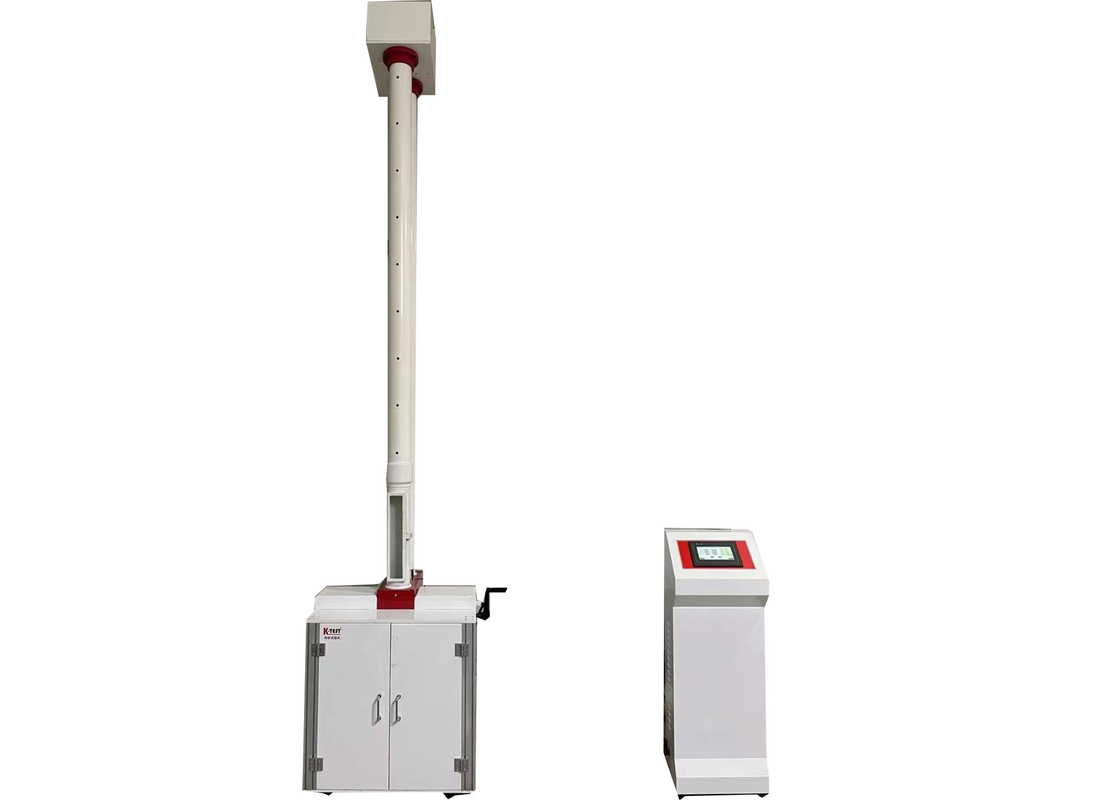

Plastic Pipe Drop Hammer Impact Testing Machine ISO4422 ISO 3127

Large Image : Plastic Pipe Drop Hammer Impact Testing Machine ISO4422 ISO 3127

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	ISO4422 ISO 3127 Plastic Pipe Drop Hammer Impact Testing Machine	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-15kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	20mm	Power Supply:	AC220V/50Hz
High Light:	Plastic Pipe falling weight deflectometer testing , ISO 3127 falling weight deflectometer testing , auto control drop hammer test equipment

ISO4422 ISO 3127 Plastic Pipe Drop Hammer Impact Testing Machine

Product Description:

The XJL series pipeline drop hammer impact testing machine is suitable for measuring the impact toughness of pipelines such as PVC-U, PVC-C, PP, PE, and underground communication pipes. It is an ideal testing equipment for production units, building materials industry, and scientific research institutions.

Product Structure:

This testing machine has the function of preventing secondary impact and adopts an AC servo system. The hammer head speed is fast, the positioning accuracy is good, the testing efficiency is high, the air resistance is small, and the height can be automatically measured. The drop hammer height can be set arbitrarily, and the hammer head height can be automatically calibrated. The weight of the impact hammer can be assembled according to weight. The anti secondary impact device has a capture rate of 100%, and the V-shaped iron can be adjusted to adapt to samples of different diameters.

Meet standards:

Compliance with standards ZB N72 026 ISO 3127 GB / T 18477 ISO4422.

Technical parameter:

Model	XJL-300D
Ambient temperature	10℃-35℃
Drop hammer quality	0.5kg-6.5kg
Hammer diameter	D25mm,D90mm and other
Height of the fall	0mm-2000mm,error≤±2mm
Diameter of the sample	Φ10mm-Φ450mm
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
source	220VAC±10%
Outline dimension	715mm×700mm×3700mm
Net weight	310kg

Support and Services:

We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.

We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.

For more information, please contact us at your convenience.

Packing and Shipping:

The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.

The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.

FAQ:

Q: What is Drop Hammer Test Equipment?: A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
Q: What is the purpose of Drop Hammer Test Equipment?: A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
Q: What products can Drop Hammer Test Equipment be used for?: A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
Q: What is the accuracy of Drop Hammer Test Equipment?: A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
Q: What is the maximum testing force of Drop Hammer Test Equipment?: A: The maximum testing energy of Drop Hammer Test Equipment is 300J.
