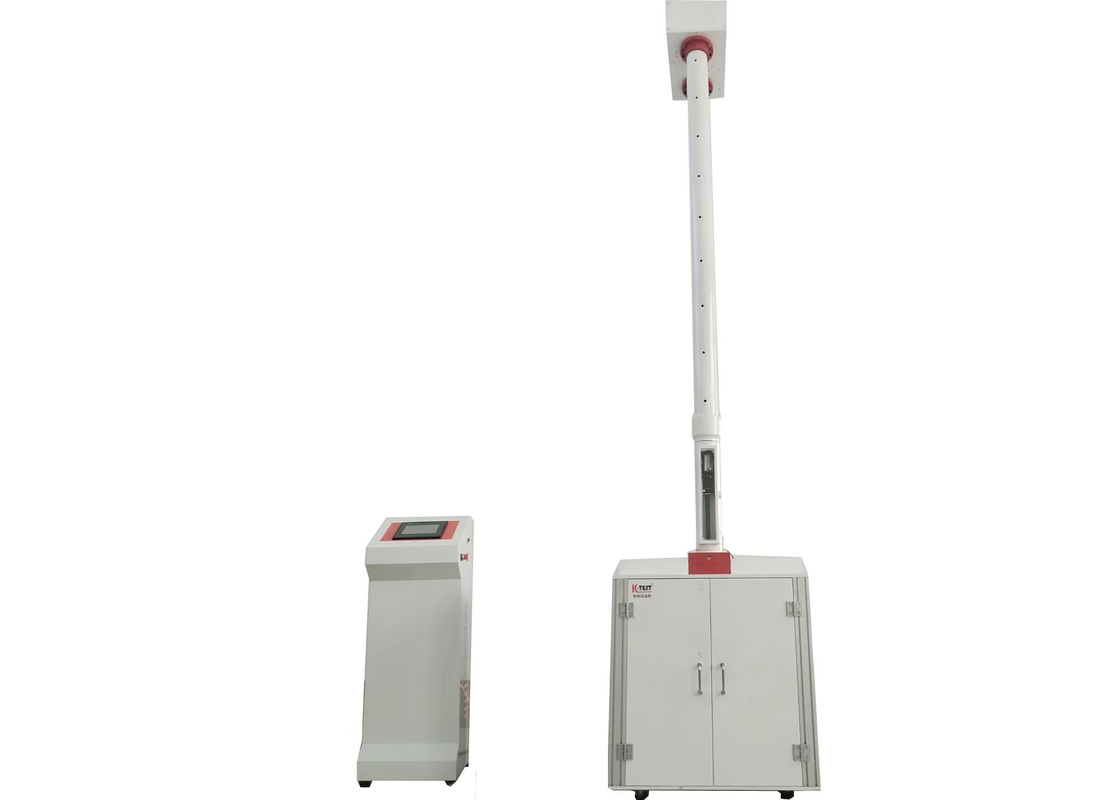

Testing machine usage drop hammer impact test machine/drop weight tear test equipment

Product Description:

Testing machine usage drop hammer impact test machine/drop weight tear test equipment is used to determine the impact test of plastic pipe, sheet metal and products in order to determine Anti-impacts the properties of these materials.

It adapts digital control technology for control part, which can ensure that figure setup, adjusting zero, raising hammer and dropping hammer automatically, and can be effective in preventing secondary impacts.

Product Structure and Working Principle:

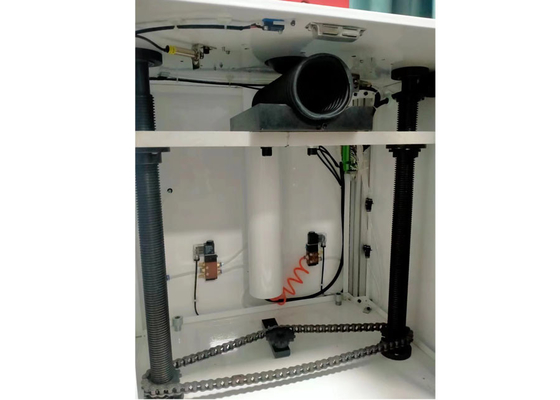

1. The testing machine is mainly composed of a workbench, a secondary impact prevention mechanism, a support tube, a urinary catheter, a hammer body, a V-shaped body, an automatic drop hammer mechanism, a reducer, an electric control box, a bracket, etc.

2. Working principle of this machine: A hammer body jig is installed inside the conduit, which is driven by a motor and a reducer to raise the hammer body. The hammer body automatically rises to the required height, and the lowering switch is pushed to set the hammer body freely inside the conduit and impact the sample, achieving the purpose of the test.

3. The impact energy can be calculated based on the weight and impact height of the hammer body. After impacting the hammer body sample, the sample does not produce rebound hammer breakage. The photoelectric signal control prevents the rebound hammer body from being quickly clamped (pick) by the secondary impact mechanism, achieving the goal of preventing secondary impact.

4. The V-shaped iron fittings are installed below the workbench. Two wires are installed on both sides, and the rotating V-shaped iron elevator is driven by the rotation of the handwheel.

Technical parameter:

Support and Services:

We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.

We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.

For more information, please contact us at your convenience.

Packing and Shipping:

The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.

The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.

FAQ:

Q: What is Drop Hammer Test Equipment?

A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.

Q: What is the purpose of Drop Hammer Test Equipment?

A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.

Q: What products can Drop Hammer Test Equipment be used for?

A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.

Q: What is the accuracy of Drop Hammer Test Equipment?

A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.

Q: What is the maximum testing force of Drop Hammer Test Equipment?

A: The maximum testing energy of Drop Hammer Test Equipment is 300J.
