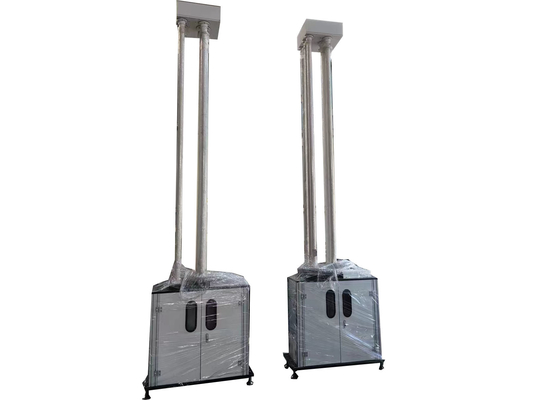

200mm-2000mm Impact Height Drop Hammer Test Equipment Vacuum System For Plastic Pipes

200mm-2000mm Impact Height Drop Hammer Test Equipment Vacuum System For Plastic Pipes
200mm-2000mm Impact Height Drop Hammer Test Equipment Vacuum System For Plastic Pipes
video play

Large Image :  200mm-2000mm Impact Height Drop Hammer Test Equipment Vacuum System For Plastic Pipes

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XJL-630S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 15~20 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 sets per month
Detailed Product Description
Product Name: 200mm-2000mm Impact Height Vacuum System Drop Hammer Test Equipment For Plastic Pipes Travel Of Working Table: 10-630mm
Specimen Diameter: φ16~630mm Hammer Diameter: D25, D90
Hammer Weight: 0.5kg-16kg Height Of The Fall: 20mm-2000mm,error≤±2mm
Hammer Suction System: Vacuum System Speed Ratio Of Lifting Hammer: 2 M/s
Outline Dimension: 930mm×700mm×3740mm Net Weight: 360kg
Highlight:

vacuum system drop hammer test equipment

,

plastic pipes drop hammer test equipment

,

vacuum system drop weight test

200mm-2000mm Impact Height Vacuum System Drop Hammer Test Equipment for Plastic Pipes



Application areas:

The drop hammer impact tester meets the requirements of ISO 3127, ASTM D2444 or equivalent test method standards. It is widely used in the research, testing and production units of plastic pipes for the determination of impact toughness. It is an ideal test instrument for building materials industry and scientific research units. The test machine has a secondary impact prevention function, can automatically preset the impact height and display in real time. Applicable to both the pass method and the gradient method. It is a drop hammer impact testing machine that is easy to operate, safe and reliable.



Complies standards:

ASTM D2444,  ISO4422, ISO3127, BSEN1411 and BSEN744.



The characteristics of the equipment:

1. The safety protection device complies with the 89/392/EEC standard;
2. Industrial color human-machine interface+PLC distributed control structure, high reliability;
3. The impact height can be set arbitrarily within the range of 200mm~2000mm (the capture rate of the secondary shock-absorbing device within this height range is 100%);
4. Using the principle of vacuum adsorption to complete the release and secondary capture operations of the impact hammer, the hammer speed is fast, and the hammer speed can reach 2m/s;
5. Automatic calibration of lifting height, with calibration accuracy less than ± 1mm of the set height;

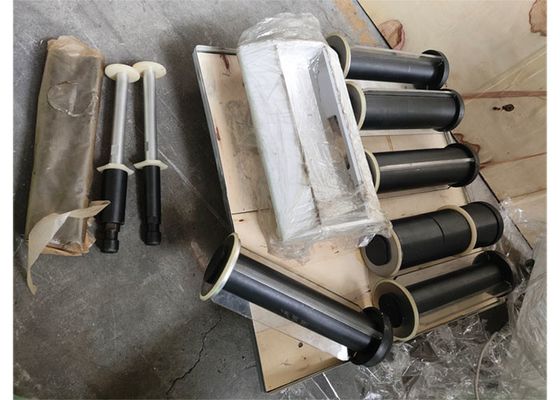

6. Independent impact hammer, with each impact energy corresponding to one impact hammer. The selection of impact hammers is convenient, and the service life of impact hammers is longer.



Technical parameters:

Model XJL-630S
Ambient temperature 10℃-35℃
Drop hammer quality 0.5kg-16kg
Hammer diameter D25mm,D90mm
Height of the fall 20mm-2000mm,error≤±2mm
Lifting speed 2m/s
Diameter of the sample Φ16mm-Φ630mm(can customized)
Deviation of impact center from fixture center ≤2mm
V-type supporting 120°
source 220VAC±10%
Outline dimension 930mm×700mm×3740mm
Net weight 360kg



Support and Services:

Drop Hammer Test Equipment Technical Support and Service

We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.

We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.

For more information, please contact us at your convenience.



Packing and Shipping:

The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.

The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.



FAQ:

Q: What is Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
Q: What is the purpose of Drop Hammer Test Equipment?
A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
Q: What products can Drop Hammer Test Equipment be used for?
A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
Q: What is the accuracy of Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
Q: What is the maximum testing force of Drop Hammer Test Equipment?
A: The maximum testing energy of Drop Hammer Test Equipment is 300J.
