|Widely Used Melt Flow Index Tester For Plastic And Petrochemical Industry
|0.325kg, 1.200kg, 2.160kg, 3.800kg, 5.000kg, 10.000kg, 12.000kg, 21.600kg
|The Diameter Of The Mold:
|Packing Size And Weight:
Auto Cutting melt flow index tester,
Petrochemical Industry melt flow index tester,
Petrochemical Industry mfi testing machine
Widely Used Melt Flow Index Tester for Plastic and Petrochemical Industry

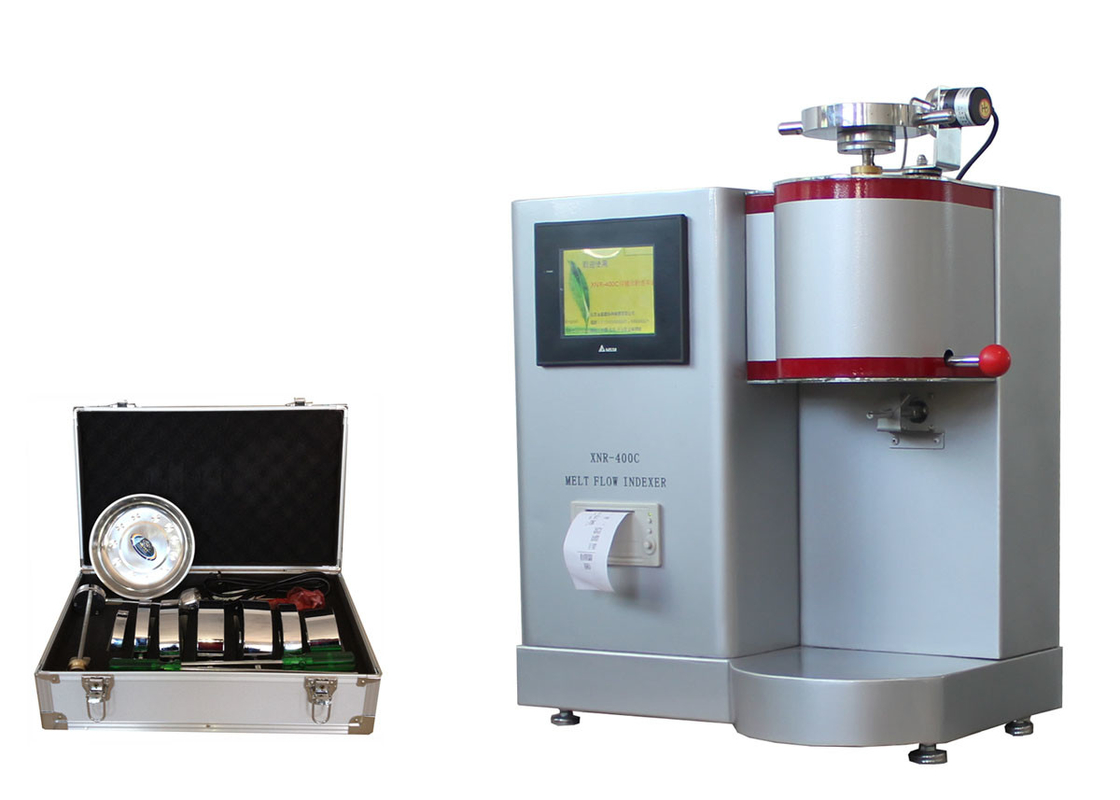

XNR-400C Melt flow Indexer is used to indicate the MFR, the MVR and the melt density of thermoplastic resin. It can be operated on engineering plastics with high temperature such as polycarbonate and the plastics with low temperature such as, polypropylene, ABS resin and acetaldehyde resin. They are used widely in plastic production and petrochemical industry, and also in some academy and commodity inspection department.
The melt mass-fiow rate (MFR) and the melt volume-fow rate (MVR) are determined by extruding molten material from the barrel of a plastometer under preset conditions of temperature and load. For meit mass-fow rate, timed segments of the extrudate are weighed and the extrudate rate is calculated in g/10 min and recorded. For melt volume-flow rate, the distance that the piston moves in a specified time or the time required for the piston to move a specified distance is measured to generate data in cm3/10 min. Meit volume-fow rate may be converted to melt mass-fiow rate, or vice-versa, if the density of the material is known under the conditions of the test.
Specimen outlet part:
1.Outlet diameter: Φ2.095±0.005mm
2.Outlet length: 8.000±0.025mm
3.Charging barrel internal diameter:Φ9.550±0.025mm
4.Charging barrel length: 152±0.1mm
5.Diameter of piston-rod head: Φ9.475±0.015mm
6.Length of piston-rod head: 6.350±0.100mm
|MVR & MFR & Density
|Touch Screen, Results printed by inner printer
|2 years on heating jacket
|Test load (Eight grades)
|GB3682 ISO1133 JB/T5456 ASTM D1238 ASTM D3364
|Packing size and weight
GB3682, ISO1133, JB/T5456, ASTM D1238, ASTM D3364
Support and Services:
Melt Flow Index Tester Technical Support and Service
We provide technical support and service for all Melt Flow Index Testers. Our technical support team is available via phone, email and online chat 24/7 to answer any questions or concerns you may have. We provide detailed instructions and videos to help you get the most out of your Melt Flow Index Tester.
We also offer a variety of warranty plans and service contracts to keep your Melt Flow Index Tester in top working condition. Our warranty plans cover defects in materials and workmanship for up to 5 years. Our service contracts include on-site maintenance and repairs, as well as the replacement of any parts that are found to be defective.
If you have any questions or concerns about our Melt Flow Index Tester technical support and service, please do not hesitate to contact us.
Packing and Shipping:
The Melt Flow Index Tester is shipped in a sturdy cardboard box, filled with foam to protect the instrument during transit. All accessories are sealed in their own plastic bags and placed in compartments in the box. The box is then sealed with tape that indicates that the instrument has been tested and is ready for use.
When shipping the Melt Flow Index Tester, please ensure that the box is properly sealed and that the packaging is clearly marked with the destination address. The instrument should be shipped using a reliable courier service that offers tracking and insurance.
Q1: What is a Melt Flow Index Tester?
A: The Melt Flow Index Tester, produced by JHH, based in Beijing, China, is a testing instrument used to measure the melt mass-flow rate of thermoplastics.
Q2: What is the purpose of the Melt Flow Index Tester?
A: The Melt Flow Index Tester is used to measure the melt mass-flow rate of thermoplastics, which provides important information for the quality control of plastic materials.
Q3: What kind of thermoplastics can be tested with the Melt Flow Index Tester?
A: The Melt Flow Index Tester can test a wide range of thermoplastics such as polyethylene, polypropylene, ABS, etc.
Q4: What are the features of the Melt Flow Index Tester?
A: The Melt Flow Index Tester has a wide range of features, including a digital display, a data storage function, a user-friendly interface, and a compact design.
Q5: What are the advantages of using the Melt Flow Index Tester?
A: The Melt Flow Index Tester is accurate and reliable, and it can quickly provide important data on the quality of plastic materials. It also has a user-friendly interface and a compact design, making it easy to use and convenient to transport.
