High Effective Melt Flow Tester For Fluorine Plastic

High Cost-Effective Melt Flow Rate Index Tester Plastic Melt Flow Indexer Machine

Product Description:

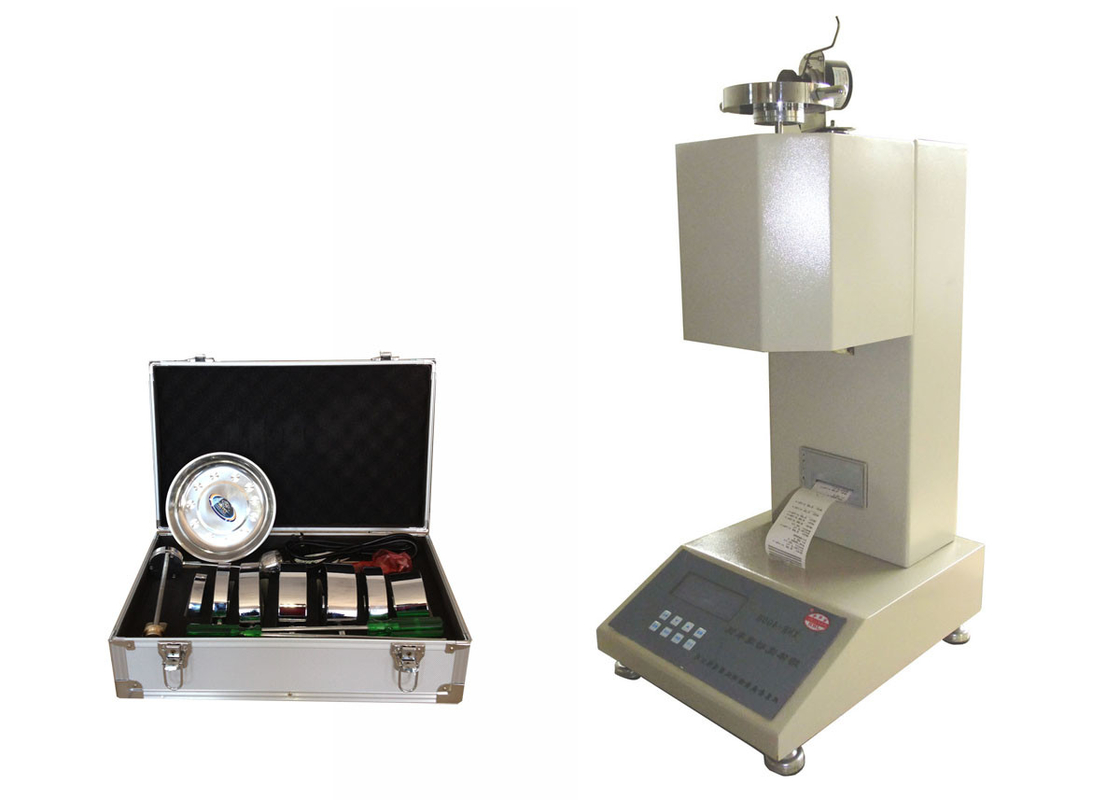

XNR-400B Melt Flow Indexer is an instrument used to indicate the MFR and the MVR of thermoplastic plastic, which is designed and produced according to the standards like GB/T3682-2000, ASTM D1238-98, JB/T5456, ISO1133, etc. When measuring MFR, the specimen is cut automatically, the time interval of cutting specimen is controlled by PLC and the weight is measured by the balance. When measuring MVR, with the displacement measured through photoelectric encoder and the time measured automatically, the needed time for the piston to move a required distance is measured first and the MVR could be figured out through the formula. Both of the results of MFR and MVR will be displayed on the LCD screen and printed out by the micro-printer. The measured data is very accurate, the operation is very easy, and the performance is very stable. It is adequate for not only engineering plastics with high melting temperature such as polycarbonate, fluoroplastic, and nylon, but also the plastics with low melting temperature such as polyethylene, polypropylene, polystyrene, ABS resin and acetaldehyde resin. It is widely used in plastic production and petrochemical industry, and also in related institutions, research units and commodity inspection department.

Principle:
The melt mass-fiow rate (MFR) and the melt volume-fow rate (MVR) are determined by extruding molten material from the barrel of a plastometer under preset conditions of temperature and load. For meit mass-fow rate, timed segments of the extrudate are weighed and the extrudate rate is calculated in g/10 min and recorded. For melt volume-flow rate, the distance that the piston moves in a specified time or the time required for the piston to move a specified distance is measured to generate data in cm3/10 min. Meit volume-fow rate may be converted to melt mass-fiow rate, or vice-versa, if the density of the material is known under the conditions of the test.

Technical Parameters:


Meet standards:
GB3682, ISO1133, JB/T5456, ASTM D1238, ASTM D3364

Support and Services:
Melt Flow Index Tester Technical Support and Service
We provide technical support and service for all Melt Flow Index Testers. Our technical support team is available via phone, email and online chat 24/7 to answer any questions or concerns you may have. We provide detailed instructions and videos to help you get the most out of your Melt Flow Index Tester.
We also offer a variety of warranty plans and service contracts to keep your Melt Flow Index Tester in top working condition. Our warranty plans cover defects in materials and workmanship for up to 5 years. Our service contracts include on-site maintenance and repairs, as well as the replacement of any parts that are found to be defective.
If you have any questions or concerns about our Melt Flow Index Tester technical support and service, please do not hesitate to contact us.

Packing and Shipping:
The Melt Flow Index Tester is shipped in a sturdy cardboard box, filled with foam to protect the instrument during transit. All accessories are sealed in their own plastic bags and placed in compartments in the box. The box is then sealed with tape that indicates that the instrument has been tested and is ready for use.
When shipping the Melt Flow Index Tester, please ensure that the box is properly sealed and that the packaging is clearly marked with the destination address. The instrument should be shipped using a reliable courier service that offers tracking and insurance.

FAQ:
Q1: What is a Melt Flow Index Tester?
A: The Melt Flow Index Tester, produced by JHH, based in Beijing, China, is a testing instrument used to measure the melt mass-flow rate of thermoplastics.
Q2: What is the purpose of the Melt Flow Index Tester?
A: The Melt Flow Index Tester is used to measure the melt mass-flow rate of thermoplastics, which provides important information for the quality control of plastic materials.
Q3: What kind of thermoplastics can be tested with the Melt Flow Index Tester?
A: The Melt Flow Index Tester can test a wide range of thermoplastics such as polyethylene, polypropylene, ABS, etc.
Q4: What are the features of the Melt Flow Index Tester?
A: The Melt Flow Index Tester has a wide range of features, including a digital display, a data storage function, a user-friendly interface, and a compact design.
Q5: What are the advantages of using the Melt Flow Index Tester?
A: The Melt Flow Index Tester is accurate and reliable, and it can quickly provide important data on the quality of plastic materials. It also has a user-friendly interface and a compact design, making it easy to use and convenient to transport.
