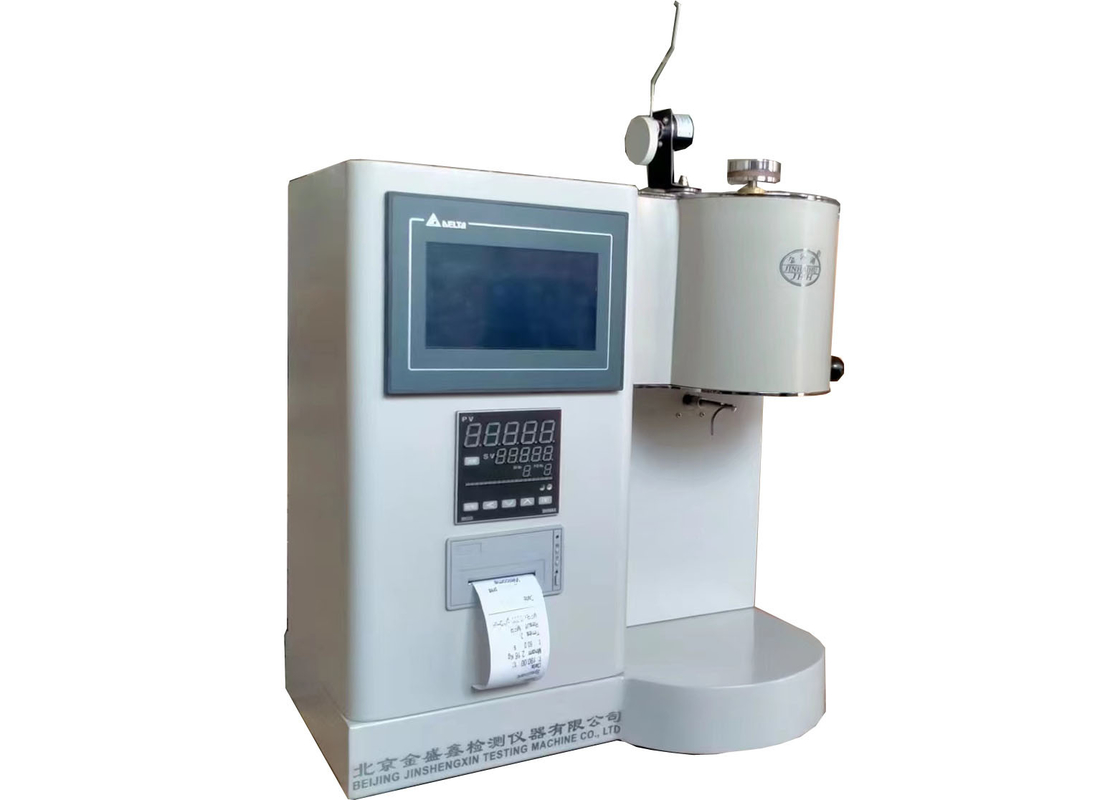

High Precision Melt Flow Index Machine For Polyethylene Plastic

High Precision Melt Flow Index Machine For Polyethylene Plastic
High Precision Melt Flow Index Machine For Polyethylene Plastic
video play

Large Image :  High Precision Melt Flow Index Machine For Polyethylene Plastic

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XNR-400D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Hige Procision Melt-mass Flow Rate, Melt-volume Flow Rate Determinator For Plastic Temp.range: 100-400℃
Temperature Accuracy: ±0.1°C Temperature Resolution: 0.01°C
Load: 0.325kg, 1.200kg, 2.160kg, 3.800kg, 5.000kg, 10.000kg, 12.000kg, 21.600kg Time Range: 0.1~999s
The Diameter Of The Mold: 2.095±0.005 Mm Cutting: Auto
Packing Size And Weight: 0.8*0.78*0.8M3,95KG Power Supply: AC 220V/50Hz
High Light:

High precision melt flow index machine

,

polyethylene melt flow index machine

,

polyethylene mfi testing machine

Hige procision Melt-mass flow rate, Melt-volume flow rate determinator for plastic



Product Description:

The melt flow rate meter works by melting the plastic sample into a heating cylinder and then pressing the melt into the tester by a quantitative mold method. The piston in the tester applies the melt pressure to the standard mouth die to flow out through the mouth die, and the mass or time of the flowing melt is measured according to the test mold used and the specific test conditions. Based on the measurement results, parameters such as melt flow rate and flow index can be calculated to evaluate the mobility energy of the polymer.



Melt flow rate meters are widely used in industries such as plastic production, plastic products, and petrochemicals, and are adopted by colleges, research institutions, and inspection departments. It evaluates the viscosity characteristics and processing performance of materials by measuring the flow rate of polymers through pores under certain conditions in the molten state, providing important basis for quality control and research of plastic materials.



 Technical Parameters:

Model No. XNR-400D
Measuring Method MVR & MFR & Density
Display&Print Touch Screen, Results printed by inner printer
Warranty 1 years on heating jacket
Cutting Auto
Max Temperature 400oC
Test load (Eight grades) all 8 kinds of weight

Temperature Controlled

By SHIMAX Digital Controll (Made in Japan)

Controlled Accuracy ±0.1oC
Display Resolution 0.01oC
Measuring Range (0.1~150)g/10min (0.01~350)cm3/10min
Timing of the clock resolution 0.01S
Power Supply 220V 550W
Packing size and weight 0.8*0.78*0.8M3,95KG



Meet standards:

GB3682, ISO1133, JB/T5456, ASTM D1238, ASTM D3364



Support and Services:

Melt Flow Index Tester Technical Support and Service
We provide technical support and service for all Melt Flow Index Testers. Our technical support team is available via phone, email and online chat 24/7 to answer any questions or concerns you may have. We provide detailed instructions and videos to help you get the most out of your Melt Flow Index Tester.
We also offer a variety of warranty plans and service contracts to keep your Melt Flow Index Tester in top working condition. Our warranty plans cover defects in materials and workmanship for up to 5 years. Our service contracts include on-site maintenance and repairs, as well as the replacement of any parts that are found to be defective.
If you have any questions or concerns about our Melt Flow Index Tester technical support and service, please do not hesitate to contact us.



Packing and Shipping:

The Melt Flow Index Tester is shipped in a sturdy cardboard box, filled with foam to protect the instrument during transit. All accessories are sealed in their own plastic bags and placed in compartments in the box. The box is then sealed with tape that indicates that the instrument has been tested and is ready for use.
When shipping the Melt Flow Index Tester, please ensure that the box is properly sealed and that the packaging is clearly marked with the destination address. The instrument should be shipped using a reliable courier service that offers tracking and insurance.



FAQ:

Q1: What is a Melt Flow Index Tester?

A: The Melt Flow Index Tester, produced by JHH, based in Beijing, China, is a testing instrument used to measure the melt mass-flow rate of thermoplastics.

Q2: What is the purpose of the Melt Flow Index Tester?

A: The Melt Flow Index Tester is used to measure the melt mass-flow rate of thermoplastics, which provides important information for the quality control of plastic materials.

Q3: What kind of thermoplastics can be tested with the Melt Flow Index Tester?

A: The Melt Flow Index Tester can test a wide range of thermoplastics such as polyethylene, polypropylene, ABS, etc.

Q4: What are the features of the Melt Flow Index Tester?

A: The Melt Flow Index Tester has a wide range of features, including a digital display, a data storage function, a user-friendly interface, and a compact design.

Q5: What are the advantages of using the Melt Flow Index Tester?

A: The Melt Flow Index Tester is accurate and reliable, and it can quickly provide important data on the quality of plastic materials. It also has a user-friendly interface and a compact design, making it easy to use and convenient to transport.


High Precision Melt Flow Index Machine For Polyethylene Plastic 0High Precision Melt Flow Index Machine For Polyethylene Plastic 1High Precision Melt Flow Index Machine For Polyethylene Plastic 2
