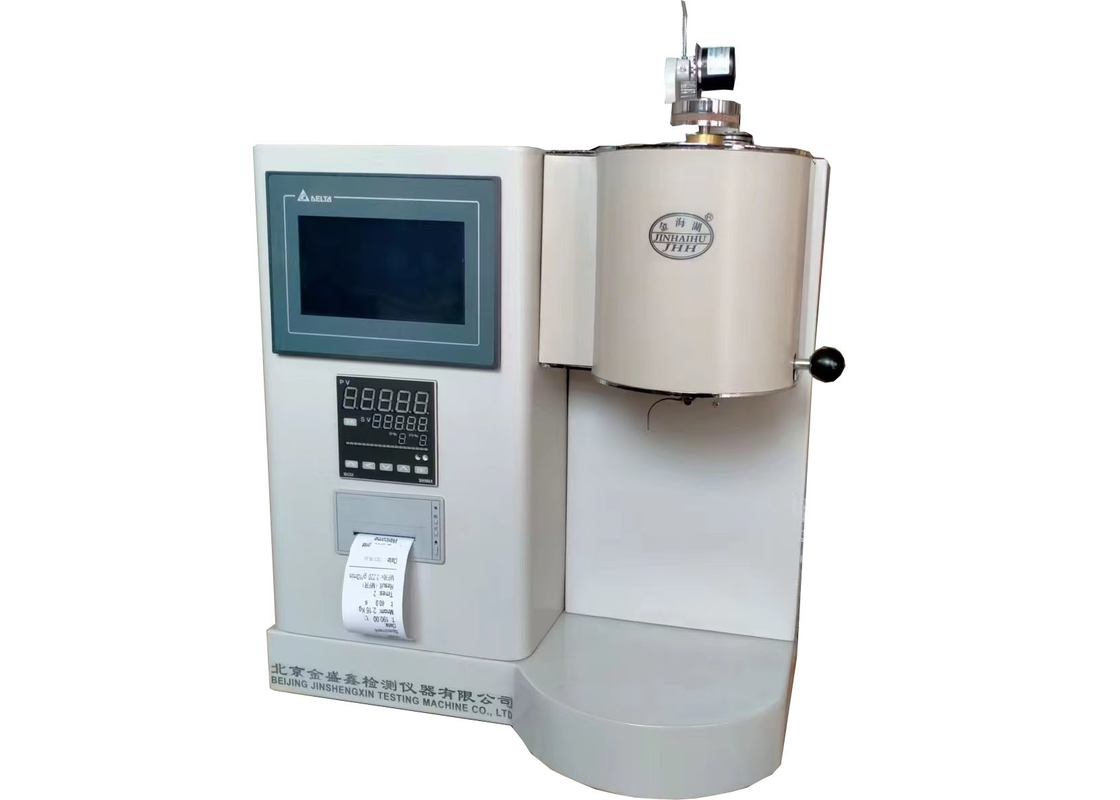

Extrusion Plastometer Melt Flow Rate Meter Apparatus Standard Method MFR MVR

Extrusion Plastometer Melt Flow Rate Meter Apparatus Standard Method MFR MVR
Extrusion Plastometer Melt Flow Rate Meter Apparatus Standard Method MFR MVR
video play

Large Image :  Extrusion Plastometer Melt Flow Rate Meter Apparatus Standard Method MFR MVR

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XNR-400D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Melt Flow Rate Meter Extrusion Plastometer Apparatus Standard Method MFR MVR Temp.range: 100-420℃
Temperature Accuracy: ±0.1°C Temperature Resolution: 0.01°C
Load: 0.325kg, 1.200kg, 2.160kg, 3.800kg, 5.000kg, 10.000kg, 12.000kg, 21.600kg Time Range: 0.1~999s
The Diameter Of The Mold: 2.095±0.005 Mm Cutting: Auto
Packing Size And Weight: 0.8*0.7*0.7M3,90KG Power Supply: AC 220V/50Hz
High Light:

Extrusion Plastometer melt flow rate meter

,

MFR melt flow rate meter

,

MVR mfi testing machine

Melt flow rate meter Extrusion plastometer apparatus standard method MFR MVR



Product Description:

Melt flow rate meter is widely used in plastic production, plastic products, petrochemical industry and other industries, and is adopted by colleges and universities, scientific research institutions and commodity inspection departments. It evaluates the viscosity characteristics and processing properties of the material by measuring the flow amount of the polymer through the pore under certain conditions, so as to provide an important basis for the quality control and research of plastic materials.

 Technical Parameters:

Model No. XNR-400D
Measuring Method MVR & MFR & Density
Display&Print Touch Screen, Results printed by inner printer
Warranty 1 years on heating jacket
Cutting Auto
Max Temperature 420oC
Test load (Eight grades) 0.325kg, 1.200kg, 2.160kg, 3.800kg, 5.000kg, 10.000kg, 12.000kg, 21.600kg

Temperature Controlled

By SHIMAX Digital Controll (Made in Japan)

Controlled Accuracy ±0.1oC
Display Resolution 0.01oC
Measuring Range (0.1~100)g/10min (0.01~350)cm3/10min
Timing of the clock resolution 0.01S
Power Supply 220V 500W
Standards GB3682, ISO1133, JB/T5456, ASTM D1238, ASTM D3364
Packing size and weight 0.8*0.8*0.8M3,90KG



Meet standards:

ISO1133, ASTM D1238, ASTM D3364 and GB/T 3682 method A & B.



Support and Services:

Melt Flow Index Tester Technical Support and Service
We provide technical support and service for all Melt Flow Index Testers. Our technical support team is available via phone, email and online chat 24/7 to answer any questions or concerns you may have. We provide detailed instructions and videos to help you get the most out of your Melt Flow Index Tester.
We also offer a variety of warranty plans and service contracts to keep your Melt Flow Index Tester in top working condition. Our warranty plans cover defects in materials and workmanship for up to 5 years. Our service contracts include on-site maintenance and repairs, as well as the replacement of any parts that are found to be defective.
If you have any questions or concerns about our Melt Flow Index Tester technical support and service, please do not hesitate to contact us.



Packing and Shipping:

The Melt Flow Index Tester is shipped in a sturdy cardboard box, filled with foam to protect the instrument during transit. All accessories are sealed in their own plastic bags and placed in compartments in the box. The box is then sealed with tape that indicates that the instrument has been tested and is ready for use.
When shipping the Melt Flow Index Tester, please ensure that the box is properly sealed and that the packaging is clearly marked with the destination address. The instrument should be shipped using a reliable courier service that offers tracking and insurance.



FAQ:

Q1: What is a Melt Flow Index Tester?

A: The Melt Flow Index Tester, produced by JHH, based in Beijing, China, is a testing instrument used to measure the melt mass-flow rate of thermoplastics.

Q2: What is the purpose of the Melt Flow Index Tester?

A: The Melt Flow Index Tester is used to measure the melt mass-flow rate of thermoplastics, which provides important information for the quality control of plastic materials.

Q3: What kind of thermoplastics can be tested with the Melt Flow Index Tester?

A: The Melt Flow Index Tester can test a wide range of thermoplastics such as polyethylene, polypropylene, ABS, etc.

Q4: What are the features of the Melt Flow Index Tester?

A: The Melt Flow Index Tester has a wide range of features, including a digital display, a data storage function, a user-friendly interface, and a compact design.

Q5: What are the advantages of using the Melt Flow Index Tester?

A: The Melt Flow Index Tester is accurate and reliable, and it can quickly provide important data on the quality of plastic materials. It also has a user-friendly interface and a compact design, making it easy to use and convenient to transport.


Extrusion Plastometer Melt Flow Rate Meter Apparatus Standard Method MFR MVR 0Extrusion Plastometer Melt Flow Rate Meter Apparatus Standard Method MFR MVR 1Extrusion Plastometer Melt Flow Rate Meter Apparatus Standard Method MFR MVR 2
