| Product Name: | Determination Tester Of Melt Mass-flow Rate (MFR) And Melt Volume-flow Rate (MVR) Of Thermoplastics | Temp.range: | 50-400℃ |
|---|---|---|---|
| Temperature Accuracy: | ±0.2°C | Temperature Resolution: | 0.1°C |
| Load: | All 8 Grade | Time Range: | 0.1~999s |
| The Diameter Of The Mold: | 2.095±0.005 Mm | Cutting: | Auto |
| Packing Size And Weight: | 0.8*0.7*0.8M3，92KG | Power Supply: | AC 220V/50Hz |
| High Light: | polypropylene melt flow index tester,AC 220V melt flow index tester,mfi testing machine for pp |
||

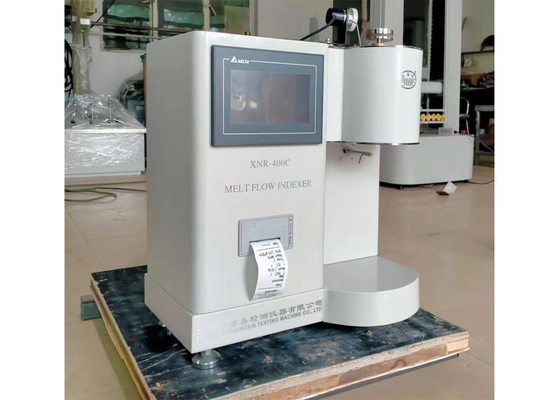

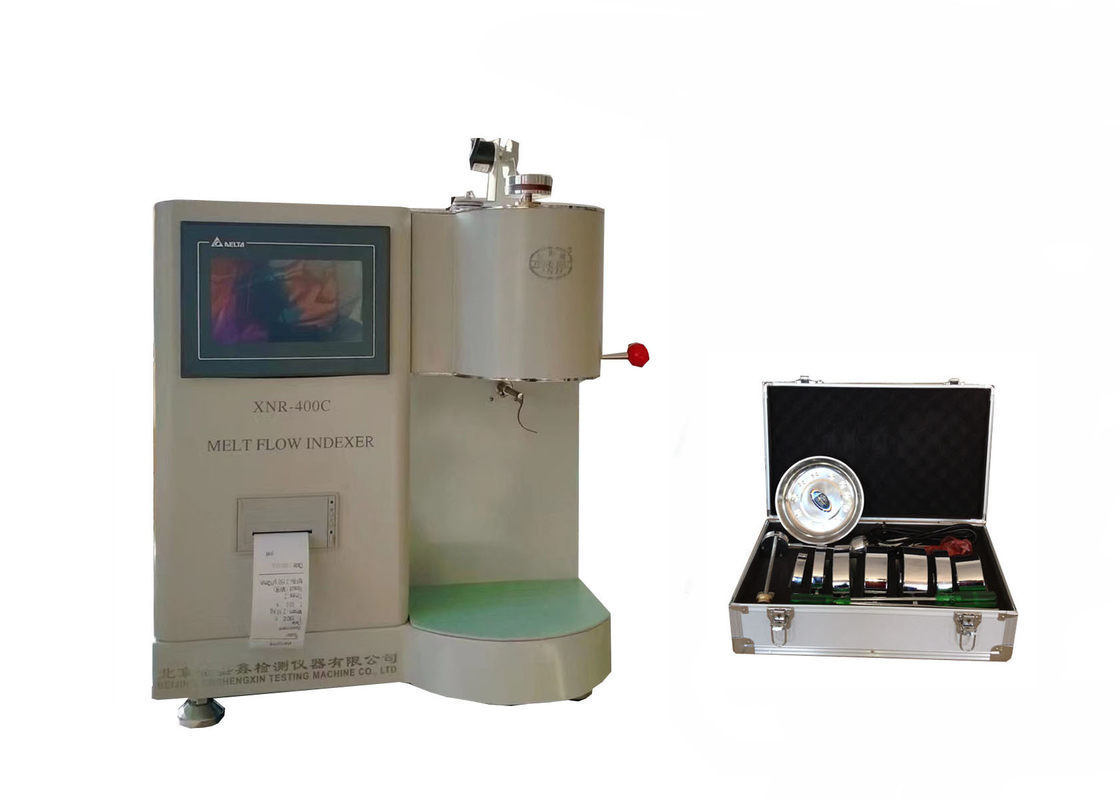

Determination tester of melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastics
Product Description:
Determination tester of melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastics is an instrument to determine the mobility energy of thermoplastic high polymer at high temperature according to the test method of GB / T 3682.1-2018. It is used for the determination of melt flow rate of polyethylene, polypropylene, paraformaldehyde, ABS resin, polycarbonate, nylon fluorine plastic at high temperature. It is suitable for the production and research of factories and scientific research units.
Technical Parameters:
| Model No. | XNR-400C |
| Measuring Method | MVR & MFR |
| Display&Print | Touch Screen, Results printed by inner printer |
| Warranty | 2 years on heating jacket |
| Cutting | Auto |
| Temperature range | 50-400oC |
| Test load (Eight grades) | 8 grade |
| Controlled Accuracy | ±0.2oC |
| Measuring Range | (0.1~200)g/10min (0.01~350)cm3/10min |
| Display Resolution | 0.1oC |
| Timing of the clock resolution | 0.01S |
| Power Supply | 220V 500W |
| Standards | GB3682, ISO1133, JB/T5456, ASTM D1238, ASTM D3364 |
| Packing size and weight | 0.8*0.7*0.8M3, 92KG |
Meet standards:
ISO1133, ASTM D1238, ASTM D3364 and GB/T 3682 method A & B.
Support and Services:
Melt Flow Index Tester Technical Support and Service
We provide technical support and service for all Melt Flow Index Testers. Our technical support team is available via phone, email and online chat 24/7 to answer any questions or concerns you may have. We provide detailed instructions and videos to help you get the most out of your Melt Flow Index Tester.
We also offer a variety of warranty plans and service contracts to keep your Melt Flow Index Tester in top working condition. Our warranty plans cover defects in materials and workmanship for up to 5 years. Our service contracts include on-site maintenance and repairs, as well as the replacement of any parts that are found to be defective.
If you have any questions or concerns about our Melt Flow Index Tester technical support and service, please do not hesitate to contact us.
Packing and Shipping:
The Melt Flow Index Tester is shipped in a sturdy cardboard box, filled with foam to protect the instrument during transit. All accessories are sealed in their own plastic bags and placed in compartments in the box. The box is then sealed with tape that indicates that the instrument has been tested and is ready for use.
When shipping the Melt Flow Index Tester, please ensure that the box is properly sealed and that the packaging is clearly marked with the destination address. The instrument should be shipped using a reliable courier service that offers tracking and insurance.
FAQ:
Q1: What is a Melt Flow Index Tester?
A: The Melt Flow Index Tester, produced by JHH, based in Beijing, China, is a testing instrument used to measure the melt mass-flow rate of thermoplastics.
Q2: What is the purpose of the Melt Flow Index Tester?
A: The Melt Flow Index Tester is used to measure the melt mass-flow rate of thermoplastics, which provides important information for the quality control of plastic materials.
Q3: What kind of thermoplastics can be tested with the Melt Flow Index Tester?
A: The Melt Flow Index Tester can test a wide range of thermoplastics such as polyethylene, polypropylene, ABS, etc.
Q4: What are the features of the Melt Flow Index Tester?
A: The Melt Flow Index Tester has a wide range of features, including a digital display, a data storage function, a user-friendly interface, and a compact design.
Q5: What are the advantages of using the Melt Flow Index Tester?
A: The Melt Flow Index Tester is accurate and reliable, and it can quickly provide important data on the quality of plastic materials. It also has a user-friendly interface and a compact design, making it easy to use and convenient to transport.
