|Cement Concrete Compression Tester Compressive Strength Testing Machine
|Inaccuracy Of Test Force:
|Test Force Measurement Range:
|Relative Error Of The Test Force Indication Value:
|<± 1% Of The Values Shown
|Maximum Spacing Between Upper And Lower Plates:
|Size Of Upper And Lower Pressing Plate:
concrete compressive strength testing machine,
300KN compressive strength testing machine,
300KN concrete compression machine

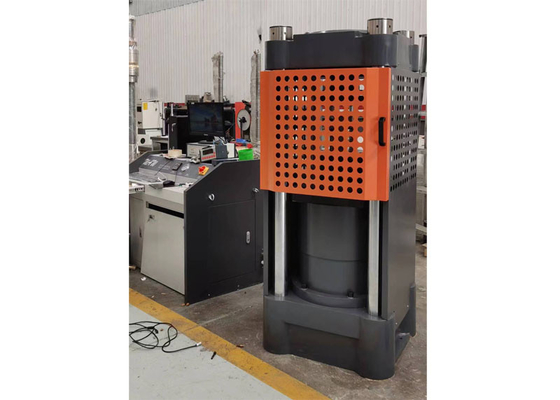

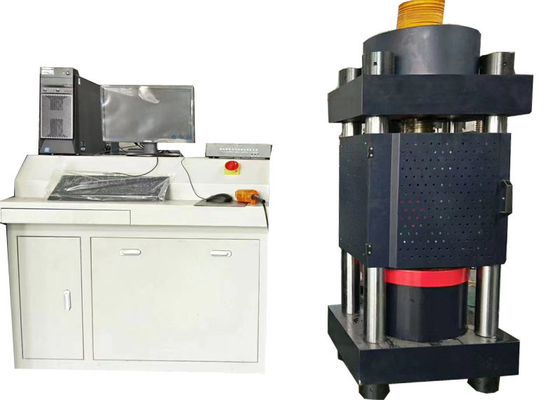

Cement concrete compression tester compressive strength testing machine
Cement concrete compression tester compressive strength testing machine is mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements
Fully computer controlled testing process. Stable and reliable high intensity structure load frame. Real time display software will provide accurate track of testing process. Powerful multifunctional control software will provide more testing methods and standards.
Overload protection will secure operators.Safe and reliable software interface and control. It is very easy to prevent mistake operation duringthe test stage which will cause damage to the testing machine.
Hydraulic pressure system:
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.
System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.
Closed-loop control with force;
Can achieved constant loading rate or constant stress loading rate;
Adopt computer for electronic measurement, automatic test;
Computer automatically calculates the results and print reports.
Test reports can be to self-design and exported to Excel.
ASTM C349; ASTM C109; EN993-5; EN 196-1; ISO8895; ISO10059-1;ISO10059-2
Main Specifications and Techinical Parameter:
|YAW-2000 PC-controlled Compression Testing Machine
|Max test force
|Inaccuracy of test force
|Inaccuracy of loading speed
|Max space between plates
|Size of plates
|Travel of piston
|Power of motor
|Size of main body
|Weight of main body
