Beijing Jinshengxin Testing Machine Co., Ltd.
Home ProductsServo Hydraulic Testing Machine

YAW-2000 Concrete Strength Tester PC Controlled

China Beijing Jinshengxin Testing Machine Co., Ltd. certification
China Beijing Jinshengxin Testing Machine Co., Ltd. certification
Thanks for your help for Electronic Universal Testing Machine products

—— Gabriela

It has been a pleasure working with you, and I greatly appreciate the effort you’ve put collaborations between our companies. I hope the partnership between two companies will be further strengthened. I wish you all the best and success in the future.

—— Mr. Si Thu

I'm Online Chat Now

YAW-2000 Concrete Strength Tester PC Controlled

YAW-2000 Concrete Strength Tester PC Controlled
YAW-2000 Concrete Strength Tester PC Controlled YAW-2000 Concrete Strength Tester PC Controlled

Large Image :  YAW-2000 Concrete Strength Tester PC Controlled

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: YAW-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 7~15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: PC-controlled Compression Testing Machine Model: YAW-2000
Max.load: 2000KN Test Machine Level: 0.5
Effective Force Measurement Range: 2%~100% Error Of The Test Force Indication Value: ±1%
Maximum Distance Between Upper And Lower Plates: 0-330mm Size Of Plates: 370*370mm
High Light:

2000KN concrete strength tester

,

PC controlled concrete strength tester

,

PC controlled concrete compression testing

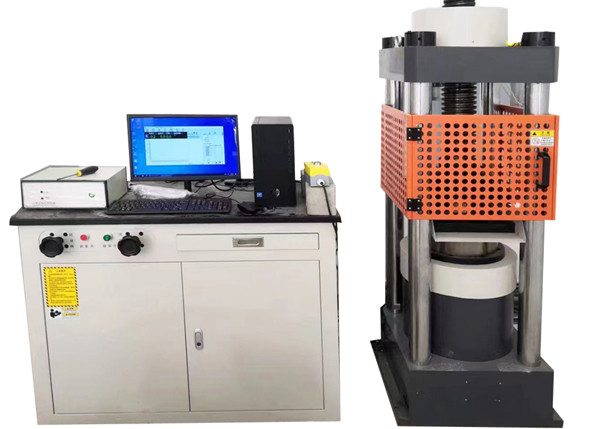

YAW-2000 PC-controlled Compression Testing Machine



1. Product introduction:

YAW-2000 PC-controlled Compression Testing Machine combines mechanical, electronic and hydraulic technology together. It is mainly used to test the compressive resistance of brake, stone, cement, and other materials.



2. Price advantage:

We increase our own research and development efforts, built processing center, produce the core parts independently, so we could reduce link costs with the same quality. Our good quality products could save you much more than some other low price but bad quality products. Reducing the failure rate of the machine to reduce the customer's maintenance costs, but also improve the efficiency of the machine, this price with high quality could give customers real benefits.


3. Standards:

GB/T 3722-1992 Hydraulic pressure tester

GB/T 50081-2002 Compressive strength test of ordinary concrete

GB/T 17671-1999 Inspection method of cement

GB/T 2542-2003 Test method for wall brick laying

GB 13544-2000 Sintered porous brick test,

GB/T 5101-2003 Requirements for sintering ordinary brick strength test.


4. Main technical parameters:

YAW-2000 PC-controlled Compression Testing Machine
Max test force 2000kn
Measuring range 5%-100%
Inaccuracy of test force ≤±1%
Inaccuracy of loading speed 1.5%
Max space between plates 330mm
Size of plates 370*370mm
Travel of piston 100mm
Power of motor 2kW
Size of main body 650mm×500mm×1500mm
Weight of main body About 1600Kg



5. Packing and Shipping


YAW-2000 Concrete Strength Tester PC Controlled 0

YAW-2000 Concrete Strength Tester PC Controlled 1



6. Frequently Asked Questions:



Q1. Are your company a trading one or a factory?

A: Factory + trade (ntegration), 18 years focusing on test instnments feld, 14 years export experl ence.



Q2. How to choose the most suitable products?

A: Our professional leam will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification



Q3.what's the dellvery term?

A: At most of time, we have stock in the factory. If there is no stock, normaly, the delivery time is 15-20 working days after deposit receipt

If you are in urgent need, we can consider making special arrangement for you.



Q4.Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request.

Don't hesitate to tell us your requirement we will try our best to meet your needs.



Q5. Can we visit your factory betore order?

A: Yes, we warmly welcome and sincerely invite you or your team to vist our factory, we will help to arrange hotel and pick up you from airpor.



Q6. How about your warranty?

A: Generaly, our waranty is one year witrin the warranty period. we can offer technlque support and part parts change. Necessarily, our engineers may go to your place for better service.



Q7. How about the packing for machine, Is it safely protected during transportation?

A: Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by ar without damage.

YAW-2000 Concrete Strength Tester PC Controlled 2YAW-2000 Concrete Strength Tester PC Controlled 3YAW-2000 Concrete Strength Tester PC Controlled 4
