| Product Name: | WAW-600D PC-controlled Hydraulic Universal Tester For Stretching, Compressing, Cutting Tests | Model: | WAW-600D |
|---|---|---|---|
| Structure: | 6 Columns | Control Way: | Manual And Automatic |
| Max.load: | 600KN | Max. Tension Test Space: | 700(can Customize) |
| Max.Compression Test Space: | 600mm (can Customize) | Load Range: | ±1%-100%FS |
| High Light: | pc controlled hydraulic universal testing machine,6 columns hydraulic universal testing machine,6columns hydraulic tensile testing machine |
||

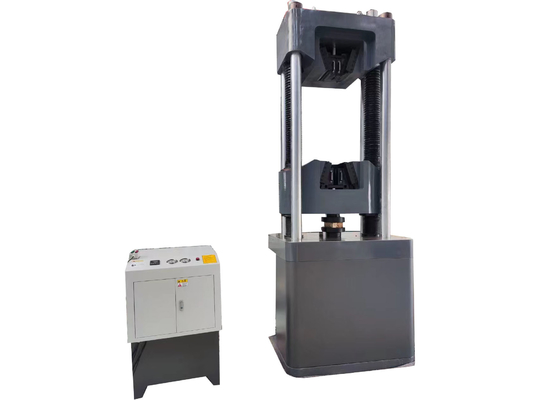

WAW-600D PC-controlled Hydraulic Universal Tester for Stretching, Compressing, Cutting Tests
1. Application
WAW-D PC-controlled electro-hydraulic servo universal tester adopts the oil cylinder lower double space structure, including: between the upper beam and the middle beam is the tensile space, mainly for the tensile test of the sample;
The compression space is between the workbench and the center beam, which can realize the compression, bending and shear tests of the sample. The stretching space and compression space can be automatically adjusted by the rotation of the wire bar and moving the middle beam up and down.
The test machine is mainly used for stretching, compression, bending, shear and other tests of metal materials, equipped with corresponding fixtures can be used for stretching, compression, bending, shear and folding tests of other types of samples.
2. Price advantage
We increase our own research and development efforts, built processing center, produce the core parts independently, so we could reduce link costs with the same quality. Our good quality products could save you much more than some other low price but bad quality products. Reducing the failure rate of the machine to reduce the customer's maintenance costs, but also improve the efficiency of the machine, this price with high quality could give customers real benefits.
3. Meet Standards
ISO 6892, ISO 6934 BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
4. Features:
The closed-loop servo control system composed of controller, servo valve, oil pressure sensor, displacement sensor, extension meter and computer can automatically and accurately control the test process, and automatically measure the test force, displacement, deformation and other test parameters. The test machine can realize the equal rate test force, equal rate deformation, equal rate displacement and other tests, and can realize three control of force, deformation and displacement in one test, and the control can be smoothly converted. The test parameters can automatically control the test process and automatically obtain the test results through computer acquisition and software processing. The test curve and test results are displayed in real time by the computer screen, and the test report and test curve can be printed.
5. Main technical parameters
| Specification | WAW-600D |
| Max. capacity (KN) | 600 |
| Relative error of reading | ≤±1% |
| Measure Range | 2%-100% F.S |
| Clamping method | Built-in hydraulic clamping |
| Test Speed | 0.5-50mm/min |
| Round specimen clamping range(mm): | Φ10～Φ40 |
| Max. Flat specimen clamping thickness(mm): | 2-30 |
| Max. Flat specimen clamping width(mm): | 90 |
| Max. tension test space (mm) | 700 |
| Max. compression test space (mm) | 600 |
| Cabinet dimension(mm) | 1250*600*900 |
| Frame dimension(mm) | 940*650*2400 |
| Weight | Approx.2500kgs |
| Column net distance (mm) | 510 |
| Power supply (KW) | 380V 50HZ |
| Safety devices | Software and machinery protection |
| Span of bending roller (mm) | 400 |
| Width of bending roller (mm) | 140 |
| Diameter of bending roller (mm) | Φ40 or other diameter optional |
| Compression platen size (mm) | Φ150 |
| Max. piston stroke (mm) | 250 |
| Piston max. speed (mm/min) | Approx.80 |
6. Packing and Shipping
7. Frequently Asked Questions:
Q1. Are your company a trading one or a factory?
A: Factory + trade (ntegration), 18 years focusing on test instnments feld, 14 years export experl ence.
Q2. How to choose the most suitable products?
A: Our professional leam will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification
Q3.what's the dellvery term?
A: At most of time, we have stock in the factory. If there is no stock, normaly, the delivery time is 15-20 working days after deposit receipt
If you are in urgent need, we can consider making special arrangement for you.
Q4.Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request.
Don't hesitate to tell us your requirement we will try our best to meet your needs.
Q5. Can we visit your factory betore order?
A: Yes, we warmly welcome and sincerely invite you or your team to vist our factory, we will help to arrange hotel and pick up you from airpor.
Q6. How about your warranty?
A: Generaly, our waranty is one year witrin the warranty period. we can offer technlque support and part parts change. Necessarily, our engineers may go to your place for better service.
Q7. How about the packing for machine, Is it safely protected during transportation?
A: Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by ar without damage.
