| Product Name: | PVC PE PPR Pipe Hdpe Plumbing Hydrostatic House Burst Water Pressure In Pipes Test Equipment | Testing Range: | 0-10MPA. 0-16MPA |
|---|---|---|---|
| Accuracy: | -1%~+2% | Test Temperature Range: | 10~95℃ |
| End Caps: | Φ6-1600mm | Display: | LCD |
| Test Curve: | Pressure-time And Pressure-temperature | Safety Protection: | Over Pressure/Over Temperature |
| Test Mode: | Automatic | Test Medium: | Water |
| Customized Support: | OEM | Certificate: | CE, ISO |
| High Light: | high accuracy hydrostatic pressure testing machine,hdpe plumbing hydrostatic pressure testing machine,china hdpe pipe hydro testing machine |
||

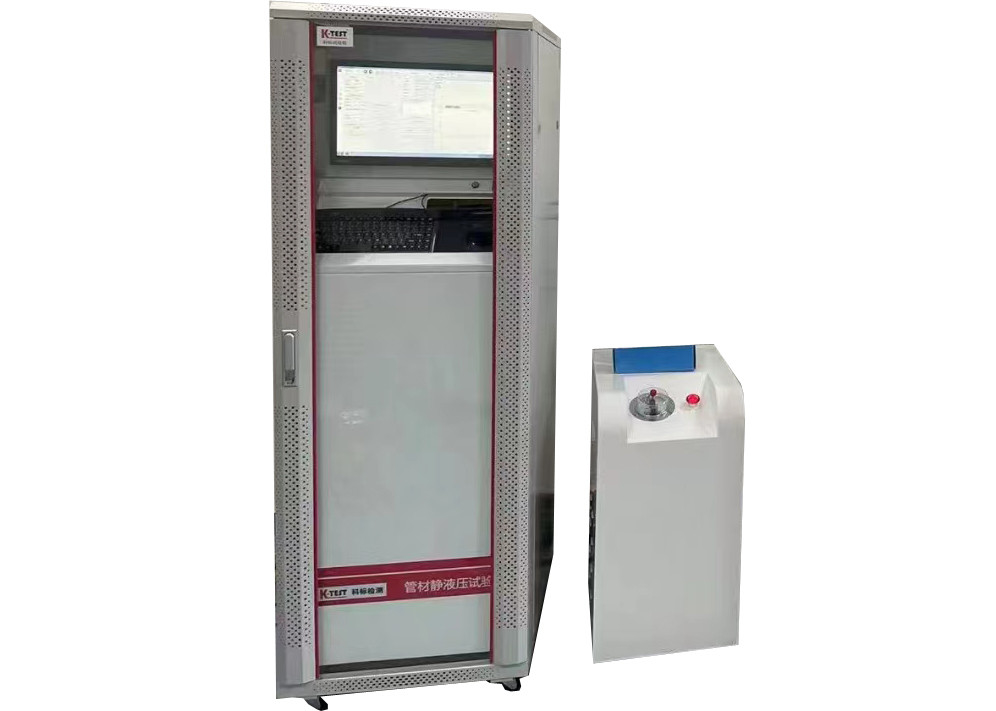

PVC Plastic pipe Hydrostatic Burst Pressure Testing Machine ASTM D1598 plastic pipe hydrostatic pressure test is used to determine the temperature of thermoplastic pipes and composite pipes (such as PP-R, PP-B, PP-A, PE, PE-X, PVC, PVC-U, PVC-C and aluminum-plastic composite pipes, etc.) The damage resistance time or the maximum pressure value of instantaneous burst under constant internal pressure and constant temperature for a long time is the necessary testing equipment for plastic pipe manufacturers and testing institutions.
1. Each control parameter (pressure, time, accuracy) can be input or adjusted by the upper computer (precision pressure micro control unit) or the lower computer (computer).
2. The upper and lower machines can display the time (maximum 9999 hours 59 minutes 59 seconds) pressure (three decimal places) and eight test states (boost, pressure, pressure relief, operation, end, leak, etc.) simultaneously or separately. Burst) At the same time, there are sound and light alarms when there are four states of overpressure, end, leak and burst.
3. Due to the dual computer controlled distributed control mode, the lower computer can be disconnected or not turned on for a long time without affecting the system work, and can ensure that the test data is not lost (up to 8760 hours)
4, Can observe, analyze, query, store, print, test curve (pressure - time) and start time, set time, current time; effective time, invalid time; remaining time, overpressure time, pressure time, etc. parameter.
| Model | XGY-10C, 16C | |
| Diameter range | Φ6-1600mm | |
| Stations | 3, 4, 5, 6, 8, 10, 12, 15, 20, 25, 50, 100 etc can customized | |
| Control mode | Micro-control, industrial PC control | |
| Display mode | Industrial PC LCD color display | |
| Storage mode | PC strorage | |
| Print mode | Color printer output | |
| Test pressure | Pressure range | 4%-100% |
| Control accuracy | ±1% | |
| Display resolution | 0.001MPa | |
| Working range | 5%~100%FS | |
| Indication error | ±1% | |
| Test Timer | Timer range | 0~999h59m59s |
| Timer accuracy | ±0.1% | |
| Timer resolution | 1s | |
| Power | 380V 50Hz three-phase four-wire 1.5KW | |
| end caps models | from Φ6 to 1600mm | |
| Water tank size | accoard to the pipe size | |
| Temperature range | 15-95℃ | |
| Dimensions (three stations) |
730×630×1730(mm)or others |
|
