Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydrostatic Pressure Test Equipment For Quality And Durability Assurance For Plastic Pipe | Testing Range: | 0-10MPA |
|---|---|---|---|
| Accuracy: | -1%~+2% | Test Temperature Range: | 10~95℃ |
| Display: | LCD | Test Curve: | Pressure-time And Pressure-temperature |
| Safety Protection: | Over Pressure/Over Temperature | Test Mode: | Automatic |
| Test Medium: | Water | Customized Support: | OEM |
| Certificate: | CE, ISO | ||
| High Light: | 10MPA hydrostatic pressure test equipment,LCD hydrostatic pressure test equipment,china hydraulic pressure testing machine distributor |
||

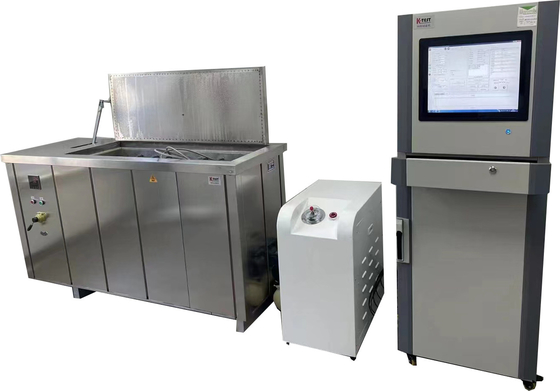

Hydrostatic Pressure Test Equipment for Quality and Durability Assurance for Plastic Pipe is used to determine the long-term hydrostatic strength and instant blasting of PVC,PE,PPR,ABS and other plastic pipes.
1.The machinr is controlled both by PC.
2.It has LCD screen.
3.Every station controls separately. The most station can reach 100.
4.It can do hydrostatic test, burst test, 8760 test and so on.
5.The pressure can be from 3 to 100MPa.
6.It can distinguish eight testing condition including pressure up, pressure down, pressure compensation, pressure exceeding, running, ending, leakage, and exploding. And also it can judge both effective and ineffective time parameters automatically. (The effective time means the time of the pressure within the setting pressure.)
| Model | XGY-10C | |
| Diameter range | 8-1600mm | |
| Stations | 5, 10, 12, 15, 20, 50, etc can customized | |
| Control mode | Micro-control, industrial PC control | |
| Display mode | Industrial PC LCD color display | |
| Storage mode | PC strorage | |
| Print mode | Color printer output | |
| Test pressure | Pressure range | 10 MPa |
| Control accuracy | ±1% | |
| Display resolution | 0.001MPa | |
| Working range | 5%~100%FS | |
| Indication error | ±1% | |
| Test Timer | Timer range | 0~10000h |
| Timer accuracy | ±0.1% | |
| Timer resolution | 1s | |
| Power | 380V 50Hz three-phase four-wire 1.1KW | |
| Dimensions (three stations) |
700×600×1700(mm)or others |
|
We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:
We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.
