XJL-300D PVC-U/C PP PE Pipe Impact Testing Machine 3 Level Protection

XJL-300D PVC-U/C PP PE Pipe Impact Testing Machine 3 Level Protection
XJL-300D PVC-U/C PP PE Pipe Impact Testing Machine 3 Level Protection
video play

Large Image :  XJL-300D PVC-U/C PP PE Pipe Impact Testing Machine 3 Level Protection

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XJL-300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: XJL-300D PVC-U/C, PP, PE Pipe Impact Tester, 3-Level Protection Travel Of Working Table: 10-450mm
Specimen Diameter: φ10~450mm Hammer Diameter: D25, D90, R5, R10, R30, R50 Can Optional
Hammer Weight: 0.5kg-5kg Height Of The Fall: 50mm-2000mm,error≤±2mm
High Light:

PP pipe impact testing machine


PE pipe impact testing machine


drop hammer test equipment factory

XJL-450M Pipe falling hammer impact test machine



It is suitable for the determination of impact resistance toughness of PVC-U, PVC-C pipe, PP pipe, PE pipe, plastic pipe for underground communication pipe. Is the test, production units, building materials industry, scientific research units of the ideal test instruments. The control part of the tester is controlled by PLC, touch screen operation display, high degree of automation, digital preset and display impact height, rising hammer and drop hammer; pneumatic transmission device is used to prevent secondary impact, and the secondary impact capture rate is 100%. Equipped with personal safety automatic protection device (sample door protection, electric shock protection, etc.). The instrument is simple to operate, safe and reliable, beautiful appearance, exported to Europe and America and other countries.


Meet standards:

It meets the technical conditions of industry standard JB / T9389 drop hammer impact test machine, and meets the test methods of GB / T14152, GB / T10002.1, GB / T5836.1, GB / T13664, GB / T16800, ISO4422, ISO3127, BSEN1411 and BSEN744.


Instrument characteristics:

  • Level 3 protection

Safety protection of the first stage sample door; the second level observation window door and the third level upper and lower limit level.

  • fast lifting

With a large torque stepping motor, the rise rate can reach 250 mm/sec, which can be reached in 8 seconds from zero to 2 meters.

  • Intelligent hover

This machine adopts a multi-segment rate control program to ensure the hammer stops smoothly and the control position without deviation.

  • Exhaust pipe modeling

The falling hammer pipe adopts 3D modeling to increase the exhaust hole to achieve the minimum wind resistance. At the same time, increase the hoop structure of the pipe to prevent its failure and deformation.

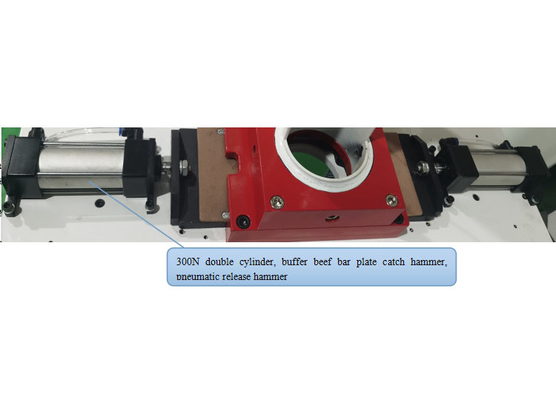

  • Pneumatic catch hammer pneumatic release hammer

Abandon the traditional sense of the electromagnetic hammer and the electromagnet hammer, using the pneumatic structure with greater force value, the hammer adopts 300N long-stroke double cylinder, using the hammer surface of the beef tendon plate, the hammer is stable, and no injury; the hammer also adopts the pneumatic structure, which fundamentally solves the cable bending wire and leakage phenomenon. Pneumatic adopts pneumatic automatic locking structure, safe and reliable.

  • Integrated, modular assembly

The mechanical part adopts the standard aluminum alloy profile assembly structure, and the electrical part adopts the 7-inch touch screen and Delta PLC, which realizes the characteristics of process standardization, modular installation, light structure and high strength.

  • Distinguished quality

All the devices used adopt imported devices, cylinder adopts Adker brand, touch screen adopts Delta brand, PLC adopts Delta brand, and power supply adopts Taiwan Mingwei brand. All electrical, mechanical and software parts have safety precautions. Such as anti-leakage, anti-short circuit, anti-static, anti-interference, anti-leakage, anti-power failure, anti-misoperation and so on.

  • High degree of automation

This instrument can automatically grasp the zero point, automatic hammer, automatic hammer, automatic test.



Technical parameter:

Model XJL-450M
Ambient temperature 10℃-35℃
Drop hammer quality 0.5kg-5kg
Hammer diameter D25mm,D90mm
Height of the fall 50mm-2000mm,error≤±2mm
Diameter of the sample Φ10mm-Φ450mm
Deviation of impact center from fixture center ≤2mm
V-type supporting 120°
source 220VAC±10%
Outline dimension 730mm×700mm×3650mm
Net weight 300kg



Name Quantity
Host One set
Electric cabinet One set
The hammer body One set
Power line One piece
V-type supporting Two pieces
Operating tool(wrench) One set



XJL-300D PVC-U/C PP PE Pipe Impact Testing Machine 3 Level Protection 0XJL-300D PVC-U/C PP PE Pipe Impact Testing Machine 3 Level Protection 1XJL-300D PVC-U/C PP PE Pipe Impact Testing Machine 3 Level Protection 2
