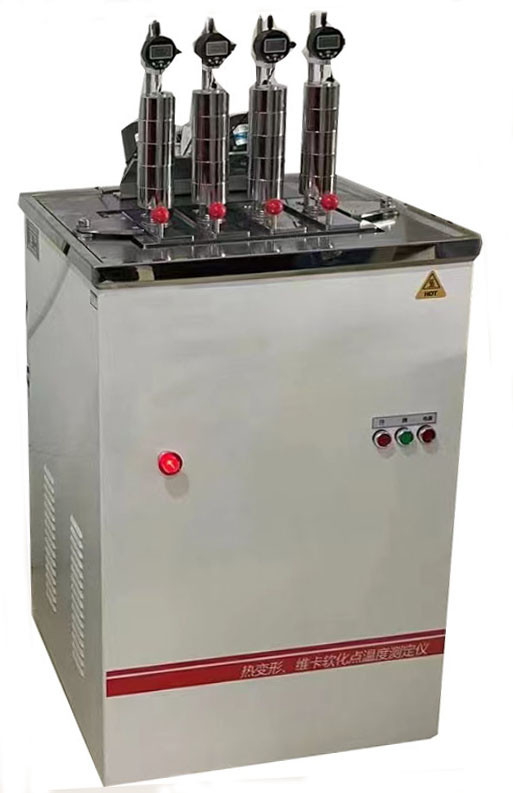

Plastic 50N Vicat Testing Machine Softening Temperature And Hdt

Plastic 50N Vicat Testing Machine Softening Temperature And Hdt
Plastic 50N Vicat Testing Machine Softening Temperature And Hdt Plastic 50N Vicat Testing Machine Softening Temperature And Hdt

Large Image :  Plastic 50N Vicat Testing Machine Softening Temperature And Hdt

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XRW-300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 2800~4600 USD
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15 sets per month
Detailed Product Description
Product Name: 19 Years Manufacturer Plastic Vicat Softening Temperature And HDT Controll: By Computer
Test Station Moving Method: Automatic Mainframe Type: Floor Type
Vicat Load: 10N ± 0.2 N , 50N ± 1N Max. Deformation Deviation: 0.001mm
Deformation Measuring Rage: 0 ~ 2.5mm Sample Frame Number: 3-6 Stations Can Be Selected
High Light:

50n vicat testing machine

,

softening temperature hdt vicat testing machine

19 years manufacturer Plastic Vicat Softening Temperature and HDT



Overview:
19 years manufacturer Plastic Vicat Softening Temperature and HDT is used to determine hot temperature and vicat softening temperature of high polymer materials, plastic,rubber etc, as an index of control quality control and test thermal derformation property of plastic products ( PVC pipes, PVC sheet, ABS sheet).



Test Standards:

ISO 75-2 specifies three methods, using different values of constant flexural stress, which can be used for the determination of the temperature of deflection under load of plastics.

ISO 306 Plastics -- Thermoplastic materials -- Determination of Vicat softening temperature (VST)



Model XRW-300F
Technical data

1.Equipped with 6 stations (Ability to test 6 samples simultaneously)

2.Automatic performance: A left for moving the samples

3.Air above 150 Degree centigrade, 150 Degree centigrade the following water

or natural cooling.

4.Deformation measurement: High precision digital display dial gauge

5.Heating Rate: 50oC/h, 120oC/h

6.Max. Temperature Deviation: ±0.5oC

7. Deformation deviation: 0.01mm

8.Vicat load: 10N ± 0.2 N , 50N ± 1N

9.Fiber stress: 0.455 Mpa and 1.82 Mpa

10.temperature-control Range: room temperature ~ 300oC

11.Deformation Measuring Rage: 0 ~ 10mm

12.Sample Frame Number: 3~6

13.Test Span: 60~120mm

14.Heating Power: 6KW

15.Power Supply: 220V 50Hz

16.Display: Color touch screen

Type and display

Desk type

Using PC control system

Standards GB/T1633, GB/T1634, ISO75, ISO306,ASTM D648, ASTM D1525,ISO 2507
Usage Used to measure heat deformation and Vicat softening temperature of thermoplastics material of plastic and rubber in the manufacturer, scientific research and colleges.
Configuration

1. Main frame 1 set

2. Electric cabinet 1 set

3. Specimen holder 3 sets(or 3 sets)

4. Vicat indenter 3 sets

5. Heat deflection indenter 3 sets

6. Displacement sensor 3 sets

7. Power line 2 sets

8. Connecting line 2 sets

9. Operation manual 1 set

10. Certificate 1 set

11. Packing list 1 set
