Product Details:
Payment & Shipping Terms:
|
| Keyword: | Machine To Test Tensile Strength | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Product Name: | Computerized Electronic Universal Tensile Strength Testing Machine Price Material Testing System | Capacity: | 5KN, 10KN, 20KN, 30KN, 50KN |
| Model: | XWW-5KN, 10KN, 20KN, 30KN, 50KN | Application: | PVC, PE, ABS, PP, PMMA, PC, RAHECO, Etc |
| Accuracy Range: | ±0.5% | Certificate: | ISO, CE |
| Power: | 220V, 50HZ(can Customized) | Warranty: | 12 Months |
| Highlight: | computerized electronic universal testing machine,polypropylene electronic universal testing machine,polypropylene machine to test tensile strength |
||
Using:

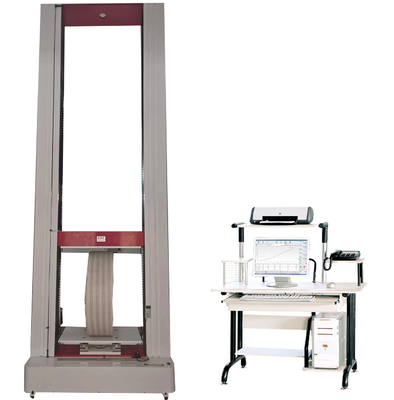

Computerized Electronic Universal Tensile Strength Testing Machine Price Material Testing System is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.
Features:
1) computer + software control, showing 6 test curves: Force - displacement, force-deformation stress-displacement, Stress deformation, forced time and displacement time.
2) stretch meter can be installed to test the deformation of rubber or metal materials.
3) high temperature test can be carried out through high temperature oven and high temperature furnace.
4) can install various test fixtures, manual/hydraulic/pneumatic fixtures.
5) customize height, width, and comply with any test standards or customer requirements.
6) there are also explicit expressions.
Meet Standards:
GB/T 2611, GB/T 16491, GB/T 13634, ASTM D638-14, ASTM E8 - 16, ASTM A370-05, ISO 527/1, ISO 178, ISO 604, ISO 6892-1
Software function:
Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.
Main technical parameters:
| Model | XWW-5KN/10KN/30KN/50KN |
| Type | Double column model |
| Accuracy Grade | Class 1 (Class 0.5 optional) |
| Force-measuring Range | 1%~100%FS(0.4%~100%FS optional) |
| Deformation-measuring Range | 2%~100%FS |
| Deformation-measuring Accuracy | ±1% |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.05~500mm/min |
| Displacement Speed Accuracy | ≤ ±0.5% |
| Metal Extensometer Accuracy Grade | ±0.5% |
| Test width | 380(can up to 1200)mm |
| Tensile Space | 700mm |
| Compression Space | 1000mm |
| Clamps | Tensile, compression, bending fixture |
| PC System | Equiped with brand computer |
| Power Supply | AC 220V±10%, 50Hz (can be customized as customer request) |
| Size of the host | 700*400*2000mm |
| Packing size & Weight | 800*500*2100mm,about 350kg |
