| Place Of Origin: | Beijing, China | Product Name: | ASTM Plastic Pipe Pressure Testing Hydrostatic Pressure Tester |
|---|---|---|---|
| Model: | XGY-10C | Max. Pressure: | 10MPA, 100BAR, 16MPA, 160BAR |
| Pressure Resolution: | 0.01MPA, 0.1BAR | Test Stations: | 5, 10, 15, 20, 25, 30, 50 Can Customized |
| Temp. Range: | 15-95 ℃ | Constant Pressure Accuracy: | -1%~+2% |
| Material Of Water Tank: | 304# Stainless Steel | Material Of End Caps: | 304# Stainless Steel Or Carbon Steel |
| Power: | AC380V ±10% ,50/60Hz | Standards: | ISO 1167, ASTM D1598/1599 |
| High Light: | astm hydrostatic pressure testing machine,3mpa hydrostatic pressure testing machine,computer control hydrotest machine |
||
ASTM Plastic Pipe Pressure Testing Hydrostatic Pressure Tester
Ⅰ. Using:
ASTM Plastic Pipe Pressure Testing Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.
Ⅱ. System Feature:
1. Industrial tablet control, direct control.
2. The machine with "precision pressure control unit" multi-channel combination.
3. Each station is independently controlled no interference.
4. 5-statiions, 10-stations, 15-stations, 20-stations and other multi-station optional, up to 60 stations and above. With a hydrostatic test, blasting test.
5. Max. pressure: 3, 6, 10, 20MPa ...
6. Pipe diameter range: Φ16 ~ 2000mm can customized.
7. One microcomputer control one working position, it can separately set and control pressure, accuracy, time and other parameters while the computer does not work. Real-time display pressure, time and status (8 statuses: pressure rise, pressure compensate, pressure release, over- pressure, run, test over, leakage, burst) and also store these test data. It is also equipped with sound and light alarm when over-pressure, test over, leakage or burst happens.
8. Power protection, test report storage / print output and other functions. Automatically determine the effective time, invalid time, the remaining time and other parameters, to prevent the evening, holidays and other periods of failure time, invalid time.
9. When power-down time ensure that the test is accurate and smooth completion. Instrument structure is reasonable, stable performance, easy operation, display intuitive.
10. Rich software interface (multi-language environment to meet customers in different countries and regions.
Ⅲ. Standards
ASTM D1598, 1599
ASTM F1335
ISO 1167, 9080, 1756, 13477
GB/T 15560, 18252, 6111
CJ/T 108
Note: For more standards, please contact us
| Pipe diameter range | Φ8~Φ1600mm | |
| Working stations | 3, 6, 10, 15, 20, 25, can customized | |
| Operation mode | PC control | |
| Pressure range | 0.2~10MPa (or customized) | |
| Pressure resolution | 0.001MPa, 0.01Bar | |
| Pressure control accuracy range | -1%~+2% | |
| Measuring range | 5%~100% F.S. | |
| Timing range | 1s~9999H 99M 99S | |
| Timing accuracy | ±0.1% | |
| Display resolution | 1s | |
| Min. Time setting unit | min | |
| Temperature control system |
15~95℃ with cooling system |
|
| Temperature control accuracy | ±0.5℃ | |
| Power supply | 380V, three-phase four-wire system | |
Ⅴ. Configuration:
1. Pressure control host;
2. Pressure station;

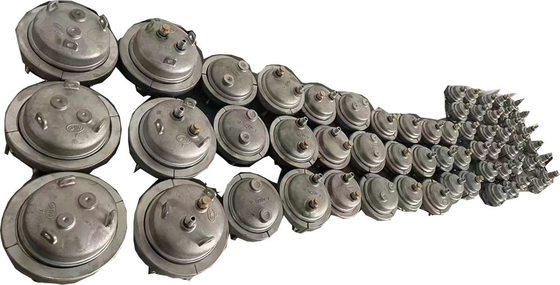

3. End closures;
4. Water tank;
5. Cooling system.
