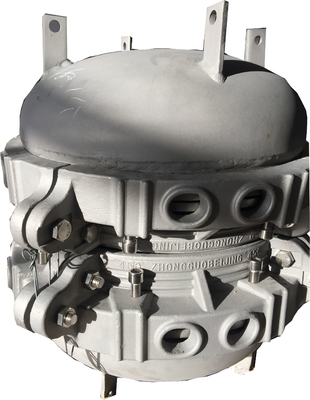

High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test

High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test
High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test

Large Image :  High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XGY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 3~5 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 1000 sets per month
Detailed Product Description
Product Name: High Pressure Resistant DN450mm End Caps For Hydrostatic Fluid And Bursting Test Material: 304# Stainless Steel Or Carbon Steel
Technics: Precision Casting Type: A
Model: DN 450mm Exterior Size(mm*mm): φ700*340mm
Weight: 180KG Sealing Ring: O-ring
High Light:

450mm hydrostatic plug

,

high pressure resistant hydrostatic plug

,

450mm pipe plugs for hydrostatic testing

High pressure resistant DN450mm end caps for hydrostatic fluid and bursting test



Summary:

High pressure resistant DN450mm end caps for hydrostatic fluid and bursting test are designed and manufactured for internal hydrostatic pressure and bursting test of pipes and fittings. It is used to seal the sample in order to generate internal pressure in the sample.



Structural composition:

Casting A-type structural fixture, without intermediate tie rods, has super high pressure resistance.

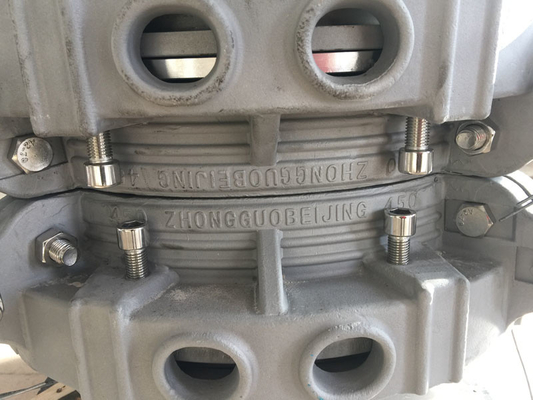

It consist of semi circular base, O type silicone rubber seal ring, pressure ring , fastening clamp, fastening bolts, compression bolts and vent valve.



Application:

The high pressure resistant DN450mm end caps for hydrostatic fluid and bursting test usually used to seal  PVC, PE, PP-R, ABS, composite pipe samples for hydrostatic test, bursting test, negative pressure test, etc.



Standards:

GB/T 6111, GB/T 18252, GB/T 15560, etc and EN921, ISO1167, ASTM D 1598/1599,



And other models:

φ8, φ10, φ16, φ25, φ32, φ40, φ50, φ63, φ75, φ90, φ110, φ125, φ140, φ160, φ180, φ200, φ225, φ250, φ280, φ315, φ355,  φ450, φ500, φ560, φ630, φ710mm, etc.



Technical parameter:

Product name
Stainless steel caps
Color
Silvery white
Outline dimension φ700*340mm
Applicable pipe's diameter  φ450~φ455mm
Max. Pressure 4MPA
The size of seal ring φ445*15mm
End cap connector M12*1.25, 1/4'', 3/8"(customizable)
Type Type A
Packing
Standard export wooden
Certificate
ISO
Delivery time
7 days

High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test 0High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test 1High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test 2

High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test 3High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test 4High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test 5High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test 6High Pressure Resistant Hydrostatic Plug Dn450mm End Caps For Fluid And Bursting Test 7
