Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Beijing, China | Product Name: | 200KN Lab Universal Testing Machine Tensile Test, For Testing Strength Of Iron For Heavy Construction |
|---|---|---|---|
| Capacity: | 200KN | Model: | XWW-200KN |
| Precision Grade: | 0.5 | Force-measuring Range: | 0.4%~100%FS |
| Force-measuring Accuracy: | ≤±0.5% | Text Space: | 590mm |
| Compression Space: | 690mm | ||
| High Light: | electronic universal testing machine 200kn,iron electronic universal testing machine,heavy construction universal tensile testing machine |
||

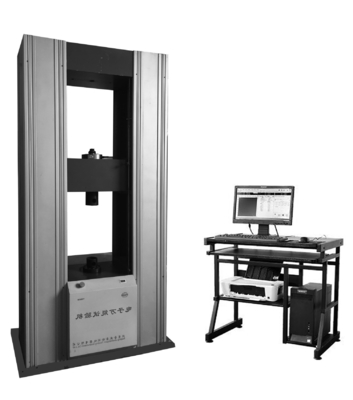

200KN Lab Universal Testing Machine Tensile Test, for testing strength of iron for heavy construction
Applications:
A. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
B. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
C. Deformation under defined load: Test deformation under defined load of tested sample
D. Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Meet Standards:
Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Technical parameter:
| Model | XWW-200KN |
| Type | Door model with single test space |
| Max. Load | 200KN |
| Accuracy Grade | 0.5% |
| Force-measuring Range | 0.4%~100%FS |
| Force-measuring Accuracy | ≤±0.5% |
| Deformation-measuring Range | 2%~100%FS |
| Deformation-measuring Accuracy | 1% |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0..05~300mm/min |
| Displacement Speed Accuracy | ≤ 0.5% |
| Test Width | 520mm |
| Tensile Space | 590mm |
| Compression Space | 690mm |
| Electronic extensometer | 50/10mm |
| Clamps | Wedge Grip,Compressing Attachment |
| PC System | Equiped with brand computer |
| Power Supply | AC220V |
| Size of the host | 1100*800*2700mm |
| Weight | 1800kg |
Introduction of the UTM software:
Universal Testing Machine Software (more than the following)
This software is of powerful function, including programs of tensile, compressing, bending, sheering, peeling tests on metallic, non-metallic, and other various materials.
Based on Windows, simple operation and easy to learn.
Languages switch between Simplified Chinese, traditional Chinese and English.
Ten user accounts and passwords can be created.
It has the protection function of overloading: overloading value can be set by user.
The units of force or displacement can be switched easily. The changes in stress and strain are displayed real time.
Curves, like Load-displacement, load-time, displacement-time, stress-strain, load-tensile length, etc. can be switched between each other at any time.
Force value dual-correction system: auto set and zero, auto identification and import of correction data.
It is suitable for many testing standards, such as ISO, JIS, ASTM, DIN, GB etc.
Compare among the test curves in the same group though piling them up.
Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.
System configuration:
| No. | Project Name | Manufacturers And Specifications | Qty | |
| 1 | Main Engine | Beijing Jinshengxin | 1 Set | |
| 2 | Ball Screw Pair | Tianjin He Chun | 2 Sets | |
| 3 | Ac Servo System | Panasonic, Japan | 1 Set | |
| 4 | Load Sensor | American | 1 Pcs | |
| 5 | Software And The Closed-Loop Control System | Independent Research And Development | 1 Set | |
| 6 | Computer | Lenovo NoteBook | 1 Set | |
| 7 | Tools and Files | Operating Manual, Installation Manual | Each one | |
| 8 | Attached | 1.Wedge Stretch Fixtures | Flat Clamp Mouth:0-9, 9-18(mm) | Each One Set |
| Round Clamp Mouth:φ4-φ9, φ9-φ18(mm) | Each One Set | |||
| 2.Compressor Fixtures | Disk Diameter:φ100mm | 1set | ||
