Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester

Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester
Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester

Large Image :  Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XWW-300KN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~20 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Place Of Origin: Beijing, China Product Name: 300KN Lab Universal Testing Machine Tensile Test, Factory Inspection Tensile Testing Machine
Capacity: 300KN Model: XWW-300KN
Precision Grade: 0.5 Force-measuring Range: 0.4%~100%FS
Force-measuring Accuracy: ≤±0.5% Text Space: 600mm
Compression Space: 700mm
High Light:

servo motor electronic universal testing machine

,

300kn electronic universal testing machine

,

300kn tensile strength tester

300KN Lab Universal Testing Machine Tensile Test, Factory Inspection Tensile Testing Machine



Product introduction:

The test machine uses AC servo motor as the power source; adopts advanced chip integration technology, professionally designed data collection, amplification and control system, test force, deformation amplification and A / D conversion process realize full digital adjustment of control and display. The mechanical performance test and analysis of various metal, non-metal and composite materials. It is widely used in aerospace, petrochemical, machinery manufacturing, wire, cable, textile, fiber, plastics, rubber, ceramics, food, pharmaceutical packaging, aluminum and plastic pipes, plastic doors and Windows, geotextile, thin film, wood, paper, metal materials and manufacturing industry. The maximum test force value, fracture force value, yield strength, upper and lower yield strength, tensile strength, tensile strength, fracture extension rate, tensile elastic modulus, bending elastic modulus, shear and other tests can be automatically obtained according to GB, JIS, ASTM, DIN, ISO and other standards.



Technical parameter:



Model XWW-300KN
Type Door model with single test space
Max. Load 300KN
Accuracy Grade 0.5%
Force-measuring Range 0.4%~100%FS
Force-measuring Accuracy ≤±0.5%
Deformation-measuring Range 2%~100%FS
Deformation-measuring Accuracy 1%
Crossbeam Displacement Resolution 0.001mm
Crossbeam Speed Range 0..05~300mm/min
Displacement Speed Accuracy ≤ 0.5%
Test Width 520mm
Tensile Space 600mm
Compression Space 700mm
Electronic extensometer 50/25mm
Clamps Wedge Grip,Compressing Attachment
PC System Equiped with brand computer
Power Supply AC220V
Standards GB, JIS, ASTM, DIN, ISO
Size of the host 1100*800*2600mm
Weight 1860kg





Introduction of the UTM software:

Universal Testing Machine Software (more than the following)

This software is of powerful function, including programs of tensile, compressing, bending, sheering, peeling tests on metallic, non-metallic, and other various materials.

Based on Windows, simple operation and easy to learn.

Languages switch between Simplified Chinese, traditional Chinese and English.

Ten user accounts and passwords can be created.

It has the protection function of overloading: overloading value can be set by user.

The units of force or displacement can be switched easily. The changes in stress and strain are displayed real time.

Curves, like Load-displacement, load-time, displacement-time, stress-strain, load-tensile length, etc. can be switched between each other at any time.

Force value dual-correction system: auto set and zero, auto identification and import of correction data.

It is suitable for many testing standards, such as ISO, JIS, ASTM, DIN, GB etc.

Compare among the test curves in the same group though piling them up.

Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.



System configuration:

No. Project Name Manufacturers And Specifications Qty
1 Main Engine Beijing Jinshengxin 1 Set
2 Ball Screw Pair Tianjin He Chun 2 Sets
3 Ac Servo System Panasonic, Japan 1 Set

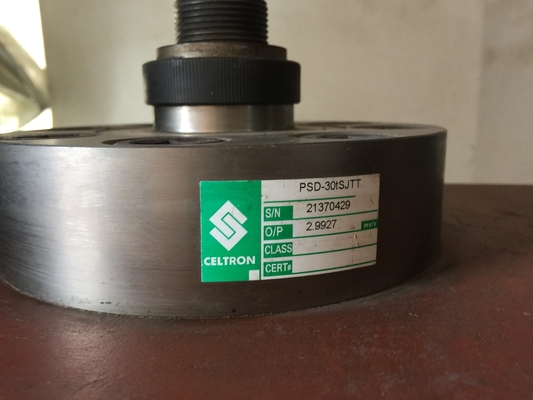

4 Load Sensor American 1 Pcs
5 Software And The Closed-Loop Control System Independent Research And Development 1 Set
6 Computer Lenovo NoteBook 1 Set
7 Tools and Files Operating Manual, Installation Manual Each one
8 Attached 1.Wedge Stretch Fixtures Flat Clamp Mouth:0-9, 9-18(mm) Each One Set
Round Clamp Mouth:φ4-φ9, φ9-φ18(mm) Each One Set
2.Compressor Fixtures Disk Diameter:φ100mm 1set


Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester 0Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester 1

Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester 2Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester 3Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester 4

Servo Motor 300kn Electronic Universal Testing Machine , Tensile Strength Tester 5
