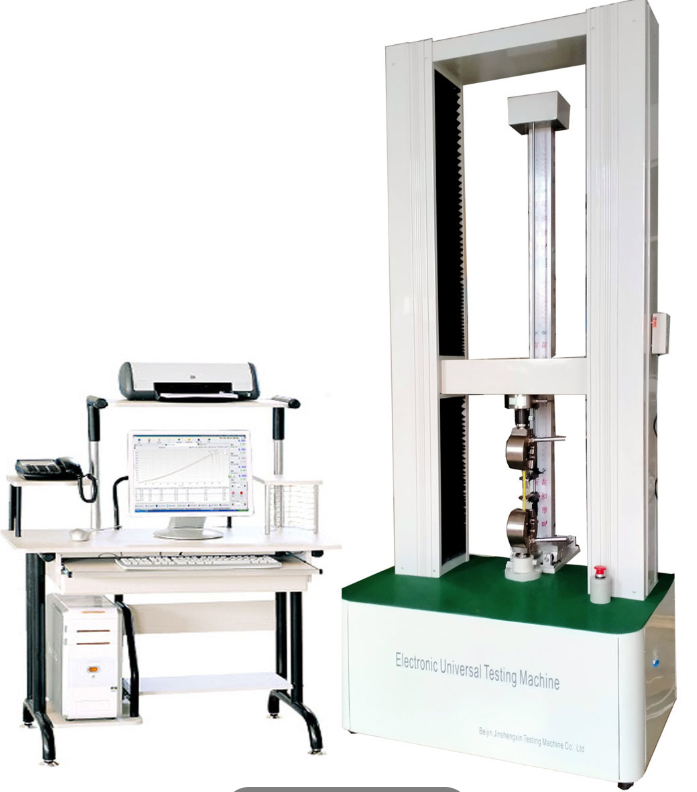

Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing

Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing
Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing

Large Image :  Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XWW-50KN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Place Of Origin: Beijing, China Product Name: Static Universal Material Strength Fatigue Tensile Compression Testing Machine
Max. Force: 50KN Force Resolution: 1/300,000
Accuracy Range: ±0.5% Compression Space: 900mm(can Customize)
Test Width: 520mm Speed Range: 0.05-500 Mm/min
The Displacement Resolution: 0.001mm Control Mode: Computer
Power: 220V, 1.5KW Certificate: ISO, CE
High Light:

50kn utm machine

,

static utm machine

,

50kn universal tensile testing machine

Static Universal Material Strength Fatigue Tensile Compression Testing Machine



Product description:

This machine also known as a materials testing machine , it is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, for rubber textile, synthetic chemicals, wire and cable, leather, ect.

Equipped with the computer & Software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. The PC controlling system can also realize the close-loop control of the parameters such as loading force, specimen deformation, and crosshead stroke earameters can be automatically found according to GB, JIS, ASTM, DIN, ISO and other standards.ith the ord, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. The PC controlling system can also realize the close-loop control of the parameters such as loading force, specimen deformation, and crosshead stroke etc. They are essential testing instrument for quality testing section, university and colleges, research institution and industrial and mining enterprise.



The key technical indexes:

Force capacity selectio 50kN
Force measurement accuracy 0.5%
The displacement resolution 0.005mm
Control mode Closed-loop
Force resolution 1/300,000
Test speed 0.005~500mm / min can be formulated
Conpression test trip 900mm(can customized)
Deformation range 0-800mm
Accurancy of deformation measure  0.01mm
Test width 520mm
External size 760×500×2100mm
Instruments weight about 550kg



Safety Device:

Stroke protection Machinery, computer double protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies




Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing 0Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing 1

Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing 2Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing 3Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing 4

Static Utm Machine Universal Material Strength Fatigue Tensile Compression Testing 5
