Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001

Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001
Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001

Large Image :  Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XGY-10B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 7 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Place Of Origin: Beijing, China Product Name: Hydrostatic Pressure Tester Hydraulic Burst Equipment For PVC PE PPR ABS And Other Piastic Pipes
Model: XGY-10B-Ⅲ Max. Pressure: 10 MPA, 100BAR
Pressure Resolution: 0.001MPa, 0.01BAR Test Stations: 3
Temp. Range: 15-95 ℃ Constant Pressure Accuracy: -1%, +2%
Material Of Water Tank: 304# Stainless Steel End Caps: From Φ16 To 1600mm
Power: AC380V ±10% ,50/60Hz Certificate: ISO, CE
High Light:

abs pipe hydro testing machine

,

ppr pipe hydro testing machine

,

pvc hydrostatic pressure machine

Hydrostatic pressure tester hydraulic burst equipment for PVC PE PPR ABS and other piastic pipes



Ⅰ. Standards:

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.



Ⅱ. Using:

Hydrostatic/Burst Tester is used to determine the long-term hydrostatic strength and instant blasting of PVC,PE,PPR,ABS and other plastic pipes.



Ⅲ. Technical data:
Pressure range of the main engine 0~10mpa (adjust at random)
Control range of water tank 15~95℃
Pressure resolution of main engine 0.001mpa, 0.1bar
Temperature control accuracy of water tank ±0.5℃
Constant pressure range of main engine <+2%,-1% of the set value
Temperature uniformity of the water tank ±0.5℃
Constant pressure accuracy of main engine ≤±1%
Temperature resolution of water tank 0.1℃
Timing range 0~9999.59 hours
Timing accuracy ≤0.1%
Water tank 304# stainless steel
Insulating layer thickness of the water tank Thicker more than 80mm
Test stations 12 roads at most for single machine
Power supply of pressure control system Ac220v,1.5kw
Power supply of temperature control system Ac380v,18kw



Ⅳ​. Standard accessory

1. Pressure control system;

2. Temperature control system;

3. Constant temperature tank;

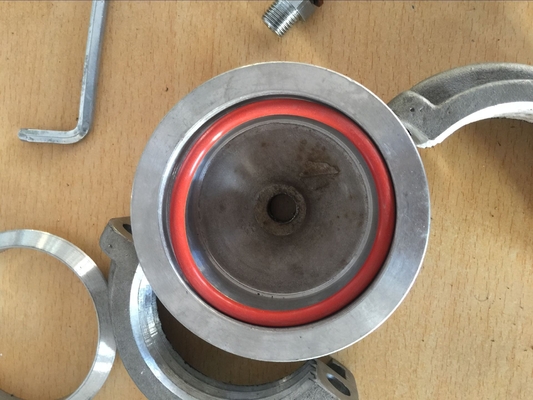

4. End caps;

5. Refrigeration system;

6. PC, printer, software, manual etc.



Ⅴ. Features

Features of main frame

1. Computer controll.

2. Continuous barrier-free work to ensure the integrity of the test.

3. Easy to operate and maintain for branch stations are independent from each other.

4. Main components are imported from Europe or America, which are stable and reliable.

5. On the basis of the meters, the instrument is also equipped with brand laptop or desktop which is connected with the meters by serial ports.

6. Pressure-time curve and Pressure-temperature curve can be drawn.

7. Pressure value can be inquired real-time.

8. Automatic regulate the pressure on the computer.

9. Test reports can be printed.

10. Computer can stop working at any time, because the meters of the main frame can still work.

11. The PC is installed with the latest version of hydrostatic pressure test software in Chinese or English which are free to upgrade for life long.

Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 0



 Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 1





Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 2




Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 3Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 4

Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 5Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 6Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 7
Pvc Pe Ppr Abs Pipe Hydro Testing Machine ISO9001 8
