Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Beijing, China | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Product Name: | Universal Test Machine/Determination Of Tensile Properties For Moulding And Extrusion Plastics | Capacity: | 10KN |
| Model: | XWW-10KN | Application: | PVC, PE, ABS, PP, PMMA, PC, RAHECO, Etc |
| Accuracy Range: | ±0.5% | Certificate: | ISO, CE |
| Power: | 220V, 50HZ(can Customized) | Warranty: | 12 Months |
| Highlight: | odm universal testing machine tensile test,10kn electronic universal testing machine,10KN universal testing machine tensile test |
||

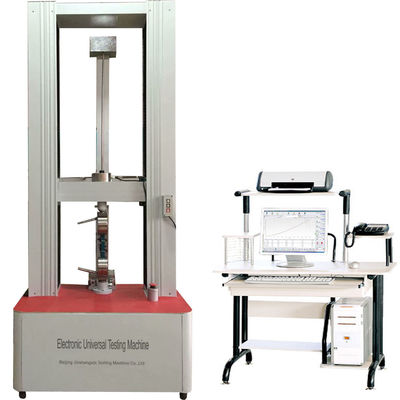

Universal test machine/Determination of tensile properties for moulding and extrusion plastics
Application:
Universal test machine/Determination of tensile properties for moulding and extrusion plastics is used to test the mechanical properties of various materials such as static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of mechanical equipment. It is suitable for plastic plates, pipes, and other materials. Various physical and mechanical performance tests of profiles, plastic films and rubber, wires and cables, steel, fiberglass and other materials are developed for materials.
Meet Standards:
ISO 527, ISO 6259, GB/T 1040, ISO7500-1, ISO 5893,ISO 9969, ASTM D638695790
Software function:
Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.
Main technical parameters
| Model | XWW-10KN |
| Type | Double column model |
| Accuracy Grade | Class 1 (Class 0.5 optional) |
| Force-measuring Range | 1%~100%FS(0.4%~100%FS optional) |
| Deformation-measuring Range | 2%~100%FS |
| Deformation-measuring Accuracy | ±1% |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.05~500mm/min |
| Displacement Speed Accuracy | ≤ ±0.5% |
| Metal Extensometer Accuracy Grade | ±0.5% |
| Test width | 380mm |
| Tensile Space | 700mm |
| Compression Space | 1000mm |
| Clamps | Tensile, compression, bending fixture |
| PC System | Equiped with brand computer |
| Power Supply | AC 220V±10%, 50Hz (can be customized as customer request) |
| Size of the host | 700*400*2000mm |
| Packing size & Weight | 800*500*2100mm,about 350kg |
