Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Beijing, China | Product Name: | Computerized Material Testing Laboratory Equipments |
|---|---|---|---|
| Capacity: | 50KN | Model: | XWW-50KN |
| Function: | Tensile Test, Compression Test, 3-point Bending Test | Accuracy Range: | ±0.5% |
| Text Space: | 700mm | Test Width: | 480mm |
| Warranty: | 14 Months | ||
| High Light: | astm d638 computerized tensile testing machine,50kn tensile testing equipment,computerized tensile testing machine 50kn |
||

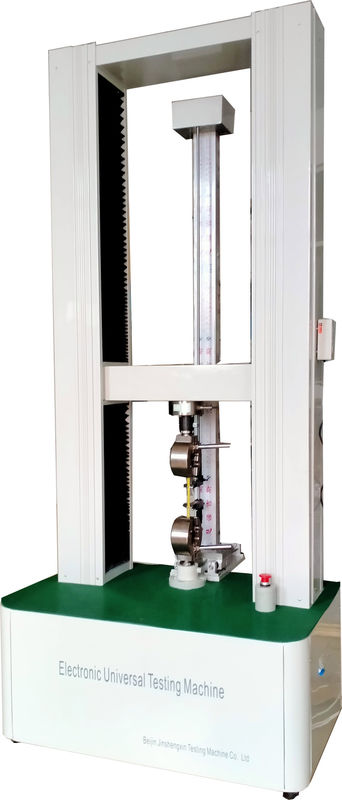

Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine
Application:
Computerized Material Testing Laboratory Equipments is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling and tearing.
Meet Standards:
ISO 7500-1 ISO 5893 ASTM D638/695/790
Control Mode:
This program provide 7 kind of control modes:
1. Constant speed
2. Fixed displacement
3. Constant load speed
4. Fixed load
5. Constant Strain inc. Rate
6. Constant Stress inc. Rate
7. Constant Stress inc. Rate- Constant Strain inc. Rate
Main technical parameters
| Model | XWW-50KN |
| Type | Door model with test single pace |
| Accuracy Grade | Class 1 (Class 0.5 optional) |
| Force-measuring Range | 1%~100%FS(0.4%~100%FS optional) |
| Deformation-measuring Range | 2%~100%FS |
| Deformation-measuring Accuracy | ±1% |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.05~500mm/min |
| Displacement Speed Accuracy | ≤ ±0.5% |
| Metal Extensometer Accuracy Grade | ±0.5% |
| Test Width | 480mm (or according to order) |
| Tensile Space | 700mm |
| Compression Space | 1000mm |
| Clamps | Tensile, compression, bending fixture |
| PC System | Equiped with brand computer |
| Power Supply | AC 220V±10%, 50Hz (can be customized as customer request) |
| Size of the host | 860*560*1920mm |
| Packing size & Weight | 2015*950*700mm,about 700kg |
|
ISO 7500-1 ISO 5893 ASTMD638695790 |
